1400°C 36L Laboratory Muffle Furnace
PM L36/14
Classification:
TMax 1400℃.Carbon steel double air-cooling housing.High alumina 1600# ceramic fiber raw material.U-shape new type SIC rod heated. Shimaden PID temperature controller,programmable 32 segments.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1400°C 36L Laboratory Muffle Furnace
- Commodity ID: PM L36/14
- 产品概述: TMax 1400℃.Carbon steel double air-cooling housing.High alumina 1600# ceramic fiber raw material.U-shape new type SIC rod heated. Shimaden PID temperature controller,programmable 32 segments.
<p>Double carbon steel air-cooled sealed shell</p> <p>1600# ceramic fiber chamber,CNC carved</p> <p>SIC rod heating on both sides,oxidation and corrosion resistance,fast heating</p>
Product Overview
PM L36/14 TMax 1400℃.Carbon steel double air-cooling housing and beautiful powder electrostatic spraying process. High temperature and corrosion resistant. Chamber uses high aluminum 1600# ceramic fiber,high resistance to rapid cooling and heating, good corrosion resistance and long service life.Heating element uses U-shape SIC rod,temperature uniformity,low consumption.Temperature control system uses smart Shimaden PID temperature controller,programmable 32 segments, high temperature control accuracy.Protection system with Power off, over-temperature, thermocouple breaking and burnout protection.An ideal furnace for ash content determination, heat treatment of metal parts, stone and ceramics, LOI testing in laboratories.For a petrochemical plant.
Main Features
- TMax 1400℃
- Carbon steel double sealed housing,fan cooling,surface temperature Rt+45℃
- Two-color high-quality epoxy powder electrostatic spraying
- Integrated design,compact design,optimize furnace structure,save space
- High alumina 1600# ceramic fiber raw material
- Furnace bottom uses wear-resistant alumina insulation material
- U-shape SIC rod,uniform temperature field
- Heating rate: 0℃-20℃/min adjustable
- Durable Type S Thermocouple
- Smart Shimaden PID controller, 32 segments programmable,curve heating and set temperature rate
- Power off, over-temperature, thermocouple breaking and burnout protection
- Siemens electrical components, long service life
- Stable performance, low noise and high safety
- CE certification
Product Details

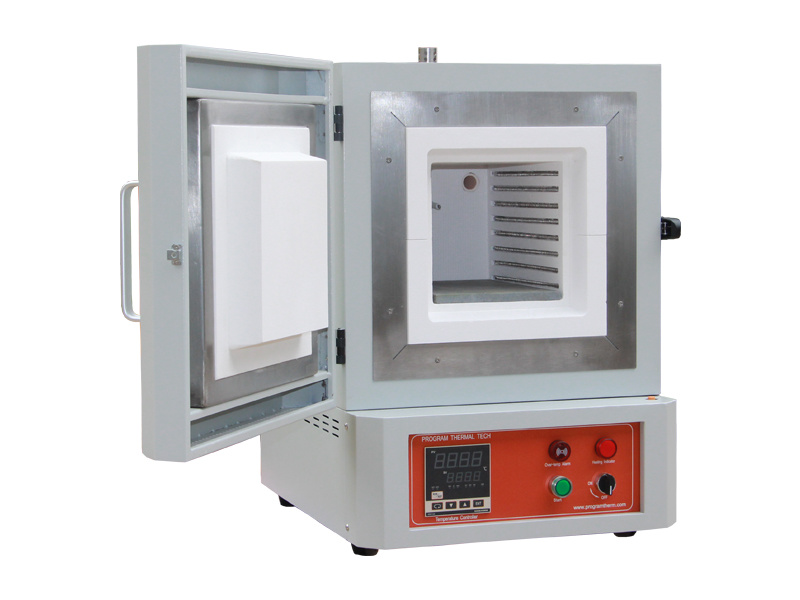

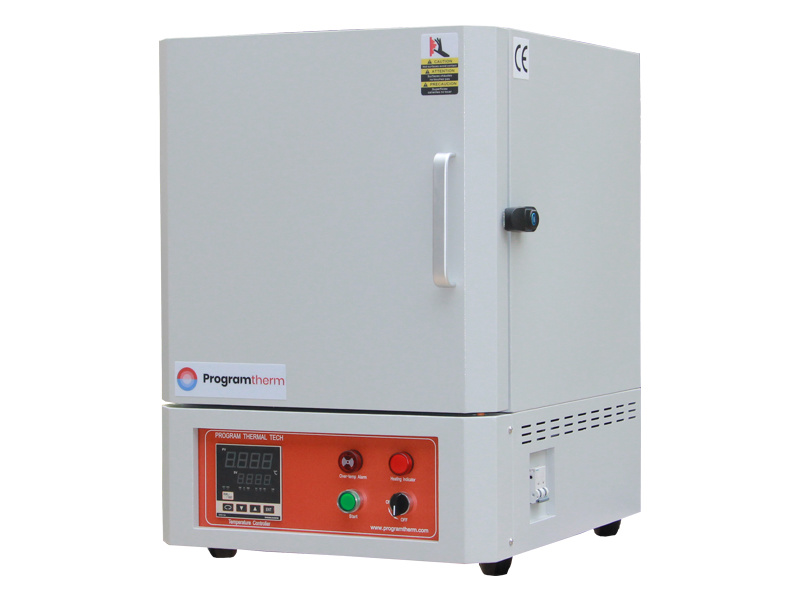

Laboratory Muffle Furnace
- PM L36/14 Laboratory Muffle Furnace consists of three parts: furnace body, temperature control system and air cooling system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
- Siemens electrical components, reliable quality.
- Export quality, CE certified.

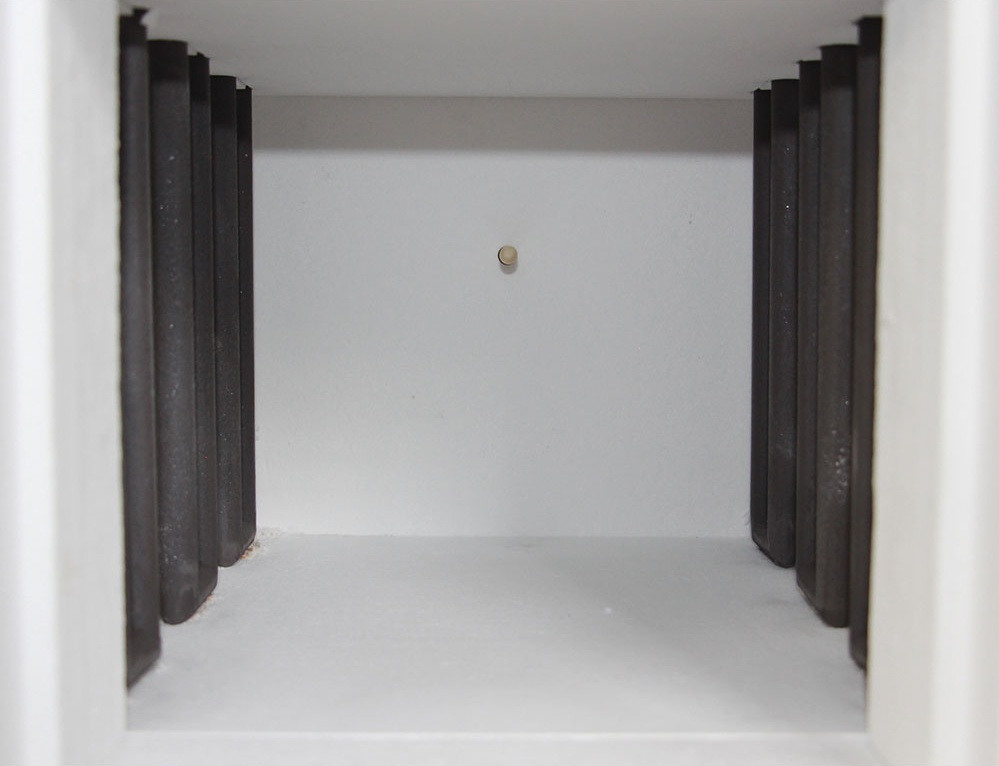

1400℃ Laboratory Muffle Furnace，Chamber.
- Chamber lining uses high alumina 1600# ceramic fiber raw material,CNC carved.Square chamber,chamber walls tight coupling.
- U-shape SIC rod,both sides heating,uniform temperature field,TMax 1400°C.
- Durable S-type thermocouple with long service life.

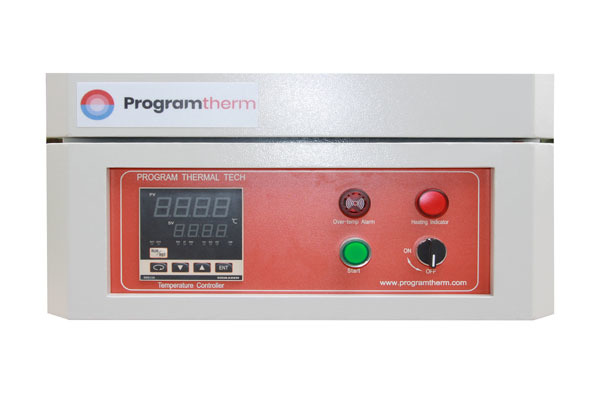

1400℃ Laboratory Muffle Furnace，Electrical control panel.
- Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
- Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes.
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function。
- With 485 communication interface (Optional)
-
Detail Technical Specifications
Model No. PM L36/14 Chamber size (DxWxH) D400xW300xH300mm /16x12x12″ Capacity 36L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system/Air-cooling system Power supply 12KW AC380-415V 50/60Hz Phase 3 phases Working temperature TMax 1400℃(2552°F)
Continuously 1300℃(2372°F)Temperature uniformity +/- 5℃ Temperature range Rt-1400℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements U-shape SIC rod(6pcs） Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type S Furnace shell Carbon steel double air-cooling sealed housing Chamber material High aluminum 1600#ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Shipment information Weight：196kgs
W800xL900xH1080mmCompliance CE,ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Exhaust piping system After-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PM L8/14 PM L18/14 PM L45/14 PM L64/14 Inner size(DxWxH) 200x200x200mm 300x250x250mm 500x300x300mm 400x400x400mm Capacity 8 L 18 L 45 L 64 L Power supply 5 KW 6 KW 14KW 16KW Furnace dimensions(LxWxH) 720x670x1000mm 800x750x1050mm 1070x1050x1350mm 970x1050x1350mm Weight 132KGS 180KGS 260KGS 280 KGS
