1200C Laboratory Tube Furnace With Vacuum Flanges And Quartz Tube 60mm
PT D60/400/12
Classification:
1200C laboratory tube furnace, single heating zone, splitable, atmosphere controlled. 60mm quartz tube and a pair of stainless steel vacuum-sealed flanges with needle valves and gauges, it allows the samples to be heated under vacuum or atmosphere.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200C Laboratory Tube Furnace With Vacuum Flanges And Quartz Tube 60mm
- Commodity ID: PT D60/400/12
- 产品概述: 1200C laboratory tube furnace, single heating zone, splitable, atmosphere controlled. 60mm quartz tube and a pair of stainless steel vacuum-sealed flanges with needle valves and gauges, it allows the samples to be heated under vacuum or atmosphere.
<p>Individual set of gas supplying device</p> <p>304SS vacuum-sealed fast open flanges</p> <p>Max Vacuum level achieve 10E-7 torr</p> <p>Available gases：Ar, N2, H2 etc</p>
Product Overview
PT D60/400/12 is a single zone split atmosphere controlled laboratory tube furnace with HRE heating wire up to 1200℃. Equips a OD60mm quartz glass tube, 304SS fast open sealing flange with needle valves and gauges. The laboratory tube furnace is controlled by a high-precision digital controller, a microprocessor-based self-tuning PID controller, which provides 32 segments of programmability, with accuracy of +/-1°C and no overshoot. Our laboratory tube furnaces specially equip a single-channel gas supplying device, it can be purged with inert gases such as argon, nitrogen, helium, synthetic air, oxygen and a small amount of diluted nitrogen or H2 in nitrogen.It can be widely used in production of pulverized Iron ore, sintering under vacuum or atmosphere protection, sample preparation, sulfuric acid decomposition, quartz tube pharmaceutica, heating for debonding, cables, optical fibers, anneal a SiC crystal etc.
Product Video
Main Features
- Tmax 1200°C
- Single heating zone, splitable, atmosphere controlled laboratory tube furnace
- Fiber-insulated chamber with all sides embeded heating wires ensure uniform temperature
- High purity transparant quartz glass tube, anti-corrosion
- 304SS vacuum-sealed fast open flanges with needle valves and pressure gauge
- Equips an individual set of gas supplying device, available gases: Ar2 N2, H2 etc.
- Split furnace chamber for fast and easy tube access
- Intelligent PID temperature controller with programmable 32 segments
- Max Vacuum level achieve 10E-7 torr worked with molecular pump
- Long life type N thermocouple
- CE certified
Product Details

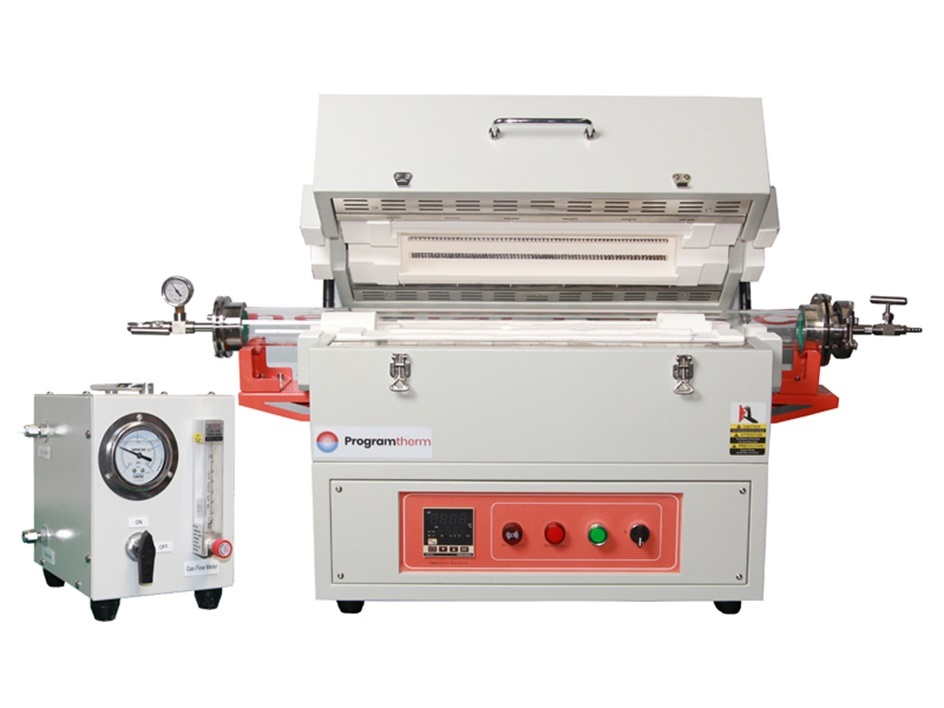

1200°C Laboratory tube furnace with gas supplying device
- The 1200°C Laboratory tube furnace with gas supplying device is mainly composed of five parts: furnace body, furnace tube, flange sealing accessories, gas supplying system and temperature control system.
- The furnace outer steel shell is processed with pickling and phosphating, environment powder coating on the surface, corrosion and oxidation resistance, built-in cooling fan, surface temperature Rt+45℃
- Exquisite appearance, ISO, CE compliance
1200°C Laboratory tube furnace chamber
- The furnace is made of two semicircular ceramic fiber materials, vacuum filtered, and tightly coupled in one piece. Embedded HRE alloy resistance wire with temperature up to 1200℃, surround convection heating, uniform temperature field
- The heating zone length is 400mm and can be adapted to 40-80mm quartz tubes. The processing tube is made of high-purity transparent quartz tube, with a temperature resistance of 1200°C. The critical part of the heating zone inside the furnace tube is equipped with the ceramic tube plug, which can effectively prevent heat from escaping and reduce heat loss
- N type thermocouple locates on the top of the chamber centre

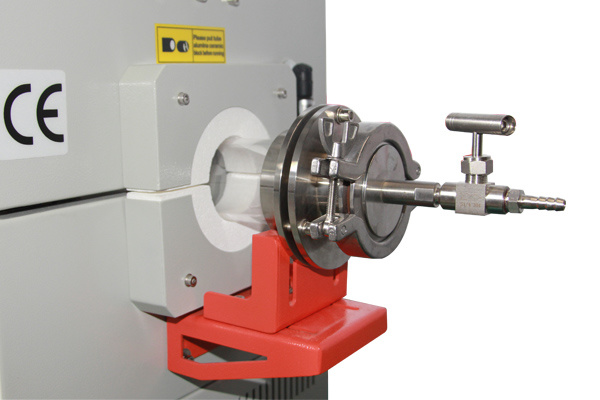

Quick opening flange, furnace tube supports, 1/4" pagoda gas nozzle
- Equipped with SS304 quick-opening flange accessories for materials fast loading and unloading, sealed with high-temperature resistant fluorine rubber sealing rings
- The air inlet and outlet adopts G1/4-inch pagoda air nozzle, which can be connected to a PTFE pipe with an outer diameter of 8mm. Max vacuum can reach 10*-7torr
- Equipped with adjustable flange brackets to ensure safe and stable operation of the furnace tube
Single channel gas supplying device
- The 1200C-1700C laboratory tube furnaces are all equipped with a single-channel gas supply device
- Double ferrule joints; gas float flowmeter, the flow rate is adjustable ranges 60-600ml/min
- Available gases: N2, Ar, H2, CO etc.
NOTE：When filling reducing gas, check valves, one-way valves, exhaust gas treatment systems, etc

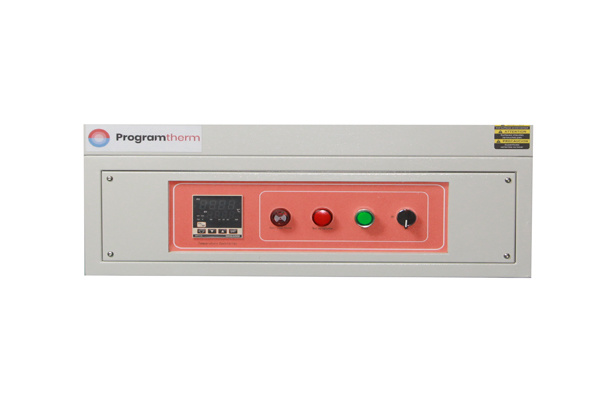

Control panel for 1200°C Laboratory Tube Furnace
- Integrated design with temp controller, Ammeter, voltmeter, function buttons on panel
- Intelligent PID temperature controller with 32-segment programs, accuracy of ±1°C
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface (Optional)
Programs of rising, dwelling and cooling
- Programmable 32 segments, heating rate 1-20C/min freely adjusted
- Good thermal insualtion, natural cooling, cooling down gently
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PT D60/400/12 Structure Carbon steel shell, chamber, quartz tube, tube supports, atmosphere controlled gas supplying system, temperature controlling system etc Heating length 400mm/16″ Temp. uniformity length 160mm Tube size OD60mm, ID52mm, length900mm Tube material High purity transparent quartz glass Power supply 2.6KW AC208-240V 50/60Hz Single phase Working temperature Tmax 1200℃(2192°F); continuous 1100℃ (2012°F) Sealing flange SS304 quick-opening sealing flanges with needle valve and pressure gauge Atmosphere performance Equips an individual set of single channel gas supplying device with gas inlet&outlet;Available gases: Ar N2 H2 etc. Vacuum performance Max vacuum level could reach to 10-7torr provided with molecular pump unit Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements HRE resistance coil wire Heating rate ≤25°C / min Thermocouple type N Furnace shell Carbon steel double shell, environment powder coating on surface Chamber material Mitsubishi Raw Material high alumina 1500# fiber board Electric components Schneider maker air switch, AC contactor, SSR Relay etc Safety measures Over heating, thermocouple breaking alarm and protection Compliance CE, ISO Warranty 18 months quality warranty with lifetime technical support (excluded consumable parts such as quartz tube, thermocouple etc) Standard packing list Tube furnace; quartz tube, sealing flange, furnace hook, thermal gloves Shipment information Shipping weight：68kgs
Packing size：W910xL560xH710mmOptional accessories Vacuum pump unit; MFC system Warnings 1. Quartz tube pressure should be lower 0.02MPa
2. Gas source should equip the pressure reducing valve
3. Before filling reduction gases like H2, should pump the air out of the tube
4. When filling gases from gas inlet in the tube, should make sure the gas outlet valve openSimilar model comparison
Model No. PT D40/400/12 PT D80/400/12 PT D100/400/12 Heating length 400mm 400mm 400mm Tube size OD40xL800mm OD80xL800mm OD100xL800mm Power supply 1.8 KW 2.8 KW 3.0 KW Furnace size(LxWxH) 830x450x520mm 850x470x540mm 870x490x560mm Weight 58 KGS 75 KGS 80 KGS -
