1200℃ 1000L Industrial Chamber Furnace
PC L1000/12
Classification:
TMax 1200℃.Carbon steel double housing.Square furnace chamber.High alumina mullite bricks chamber.HRE alloy coil wire heated, mounted on the ceramic tube,5-side heating.Smart Shimaden PID controller, 32 segments programmable.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200℃ 1000L Industrial Chamber Furnace
- Commodity ID: PC L1000/12
- 产品概述: TMax 1200℃.Carbon steel double housing.Square furnace chamber.High alumina mullite bricks chamber.HRE alloy coil wire heated, mounted on the ceramic tube,5-side heating.Smart Shimaden PID controller, 32 segments programmable.
<p>Large floor-standing Industrial chamber furnace</p> <p>Arched furnace top with exhaust piping system</p> <p>HRE alloy coil wire,mounted on ceramic tube,5-side heating</p>
Product Overview

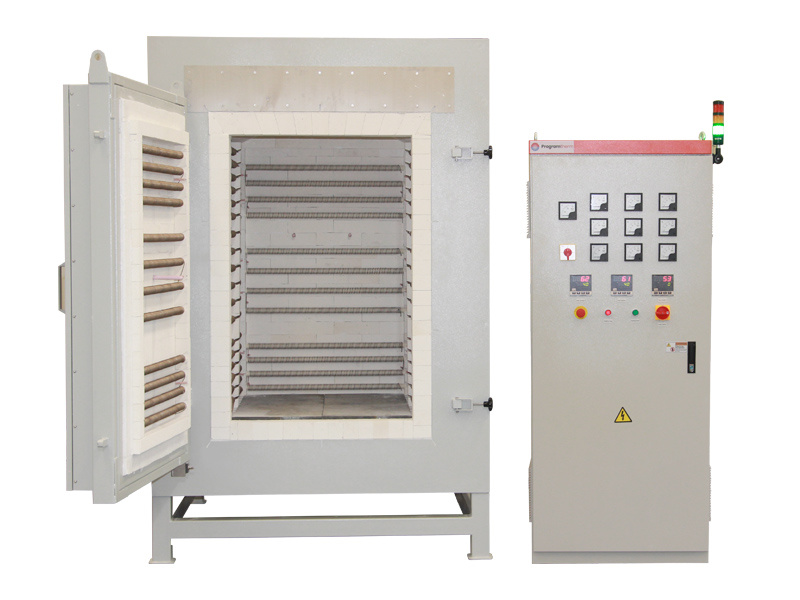

PC L1000/12 is a large floor-standing Industrial Chamber Furnace.Carbon steel double housing.Square furnace chamber.Chamber lining uses high alumina mullite bricks,high temperature and corrision resistance.Heating element uses HRE alloy coil wire,mounted on ceramic tube,5-side heating,N-type thermocouple.Smart Shimaden PID controller, 32 segments programmable,high temperature control accuracy.This chamber furnace is mainly suitable for many kinds of heat treatment such as carbon products, metal, ceramic material sintering and so on.
Product Video
Main Features
- TMax 1200℃
- Industrial, heavy type chamber furnace.Square furnace chamber.High alumina mullite bricks chamber,good high temperature resistance and high strength
- The furnace door opens sideways, and the top of the doorway is inlaid with stainless steel matting, preventing burns caused by heat spillage effectively
- Self-developed new arched furnace top, sturdy and durable with a long service life
- The exhaust holes is arranged with openings at the top of the chamber
- HRE alloy coil wire heated,mounted on ceramic tube,5-sided heating,uniform temperature field
- Power off, over-temperature, thermocouple breaking and burnout protection
- N-type thermocouple
- Heating rate 0℃-20℃/min adjustable
- Good performance and energy saving effect
- CE certification
Product Details

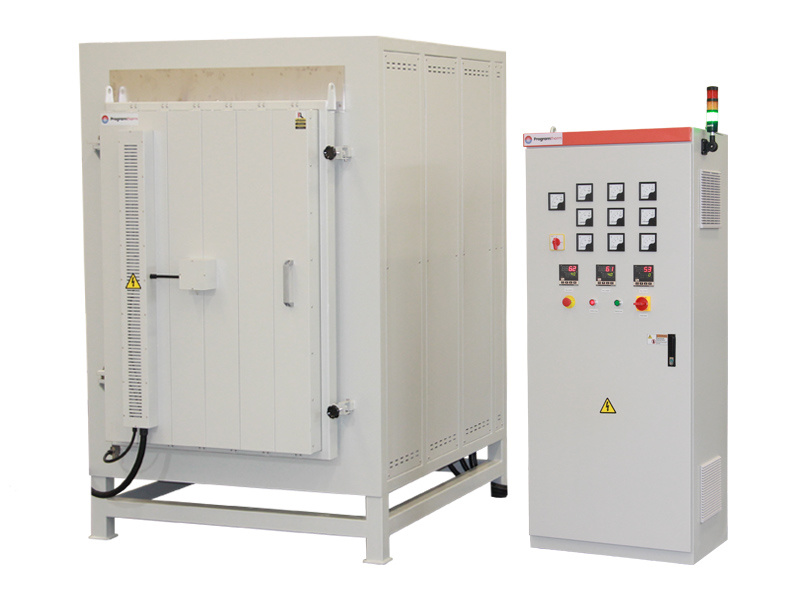

1200℃ Industrial Chamber Furnace
- PC L1000/12 Industrial Chamber Furnace consists of four parts: dual-layer carbon steel shell, furnace chamber, exhaust discharging and temperature control system.
- Separate design of furnace body and temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components,long service life.
- Export quality,ISO,CE certified.

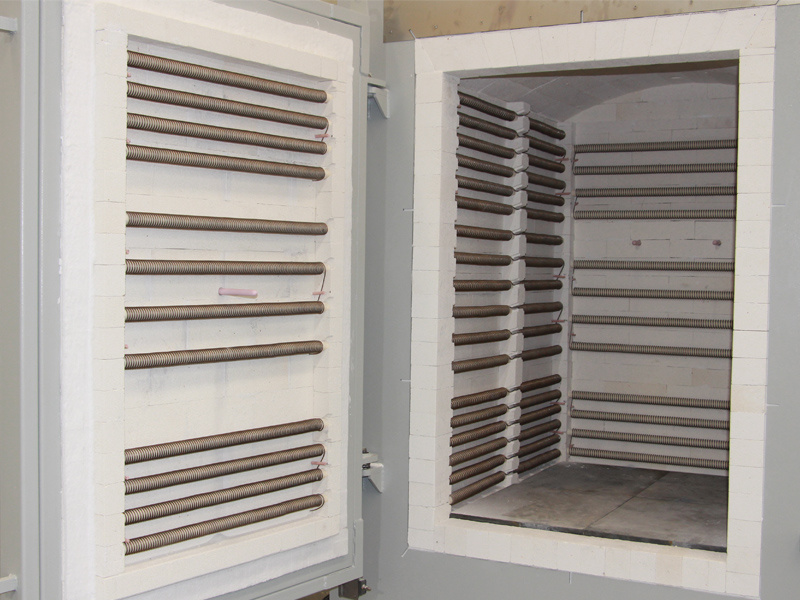

1200℃ Industrial Chamber Furnace,Chamber
- Square chamber. Chamber lining uses high alumina mullite bricks,good high temperature resistance and high strength.Chamber walls tight coupling.
- Heating element uses HRE alloy coil wire,mounted on ceramic tube,5-sided heating,uniform temperature field,TMax 1200℃.
- The left and right sides of the chamber adopt double-row layout of the wire, with strong support in the middle part to prevent the ceramic tube from deformation and breakage due to self-weight under long-term use or high temperature.
- Arch-roof design, sturdy and durable with a long service life.
- The exhaust holes is arranged with openings at the top of the furnace chamber, convenient for the discharge of smoke or exhaust gas generated during the heating process.
- Equip two N-type thermocouples,long service life.

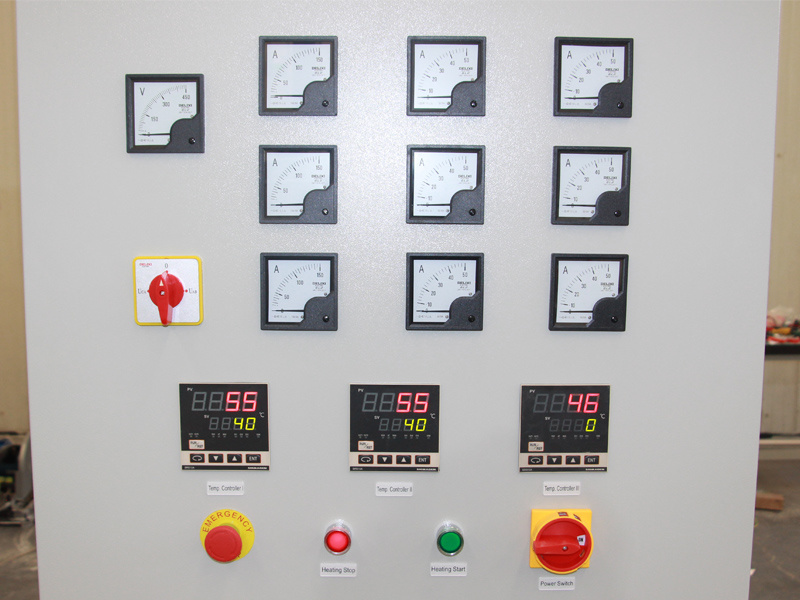

1200℃ Industrial Chamber Furnace,Electrical control panel.
- The temperature control system part adopts a split design
- The heating zone is divided into 3 temperature zones, with sensors set at the rear and bottom respectively. Each zone can be independently temperature controlled.
- Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.(Yudian, Shimaden, Euro, touch screen optional)
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface(Optional)
Heating and cooling of 1200℃ high temperature Chamber Furnace
- Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
- Good thermal insualtion, natural cooling, cooling down gently.
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded.
-
Detail Technical Specifications
Model No. PC L1000/12 Chamber size (DxWxH) D1000xW800xH1250mm /40x32x50″ Capacity 1000L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system Power supply 80KW AC380-415V 50/60Hz Phase 3 phases Working temperature TMax 1200℃(2192°F)
Continuously 1100℃ (2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements HRE alloy coil wire,mounted on ceramic tube,5-sided heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N
Equip two pcs, dual protectionFurnace shell Carbon steel double housing Chamber material High alumina mullite bricks,high temperature resistance,efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Exhaust piping system Shipment information Weight:1960 kgs
L2170xW1620xH2390mmAfter-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PC L200/12
PC L300/12 PC L450/12 PC L660/12 Inner size(DxWxH) 530x500x720mm 700x550x780mm 750x600x1000mm 1100x600x1000mm Capacity 200L 300 L 450 L 660 L Power supply 28 KW 30 KW 45 KW 60 KW Furnace dimensions(LxWxH) 1310x1400x1560mm 1480x1450x1570mm 1500x1530x1770mm 1850x1530x1770mm Weight 930 KGS 960 KGS 1600 KGS 1820 KGS
