1800℃ 216L Chamber Furnace For Sintering Specialty Ceramics
PC L216/18
Classification:
TMax 1800℃.Double carbon steel with fan-cooling housing.The composite ceramic structure chamber. New type U-shape MoSi2 rods heated.Smart Yudian PID controller, 30 segments programmable.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1800℃ 216L Chamber Furnace For Sintering Specialty Ceramics
- Commodity ID: PC L216/18
- 产品概述: TMax 1800℃.Double carbon steel with fan-cooling housing.The composite ceramic structure chamber. New type U-shape MoSi2 rods heated.Smart Yudian PID controller, 30 segments programmable.
<p>Composite ceramic chamber,arched roof design</p> <p>Automatic chimney device on the furnace top</p> <p>Ideal for sintering,metal annealing and quality inspection</p>
Product Overview
PC L216/18 is a customized industrial chamber furnace for sintering specialty ceramics. Double carbon steel with fan-cooling housing, high temperature and corrosion resistance.The composite ceramic structure chamber, good insulation performance.The heating element adopts new type U-shape MoSi2 rods, evenly arranged in the left and right sides of the chamber. Equip an exhaust piping system, furnace top opening with automatic chimney device. Temperature control system adopts split design, smart Yudian PID controller, 30 segments programmable,high temperature control accuracy. It is an ideal furnace for high-temperature sintering, metal annealing and quality inspection in colleges and universities, research institutes, industrial and mining enterprises.
Product Video
Main Features
- TMax 1800℃
- Composite ceramic structure chamber, arched roof design, sturdy and durable
- New type U-shape MoSi2 rods heated, stable resistance, uniform temperature field
- Heating rate 0℃-10℃/min adjustable
- Equip an automatic chimney device on the top of the furnace
- Smart temperature control system 30 segments programmable
- Siemens electrical components, long service life
- B type thermocouple, long service life
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

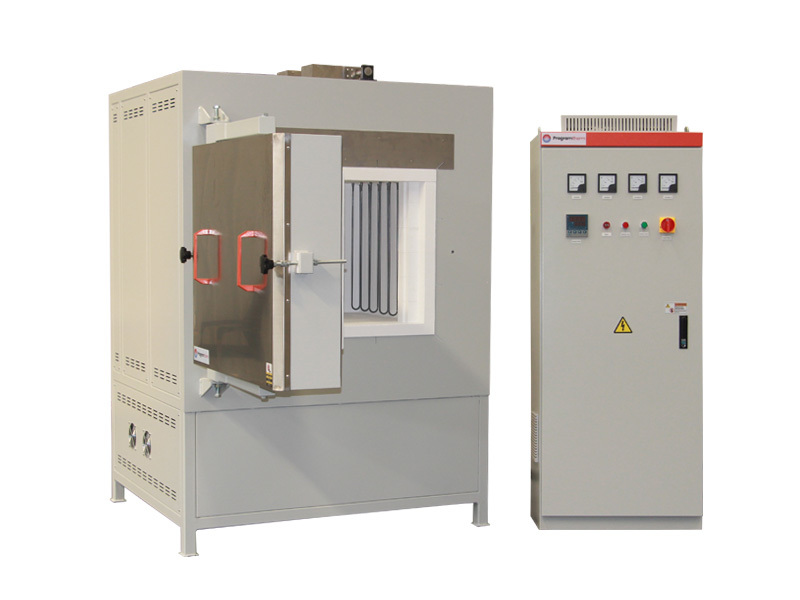

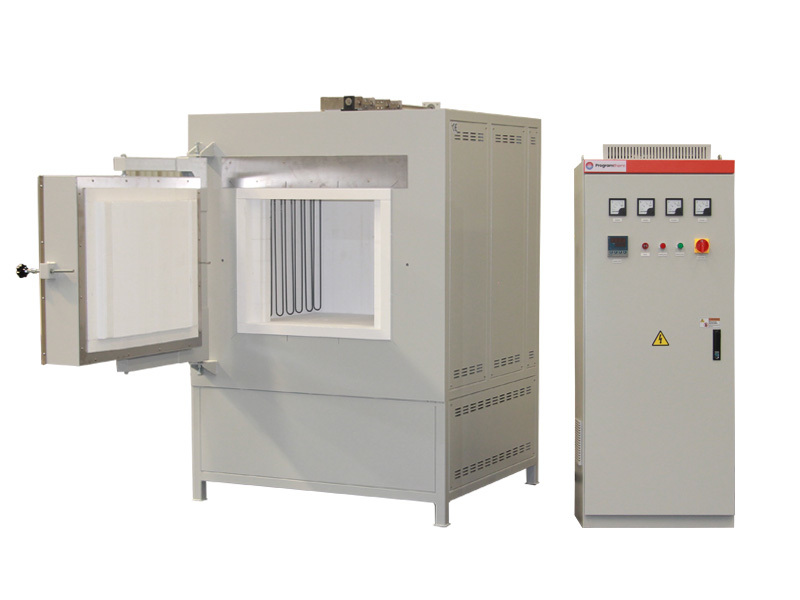

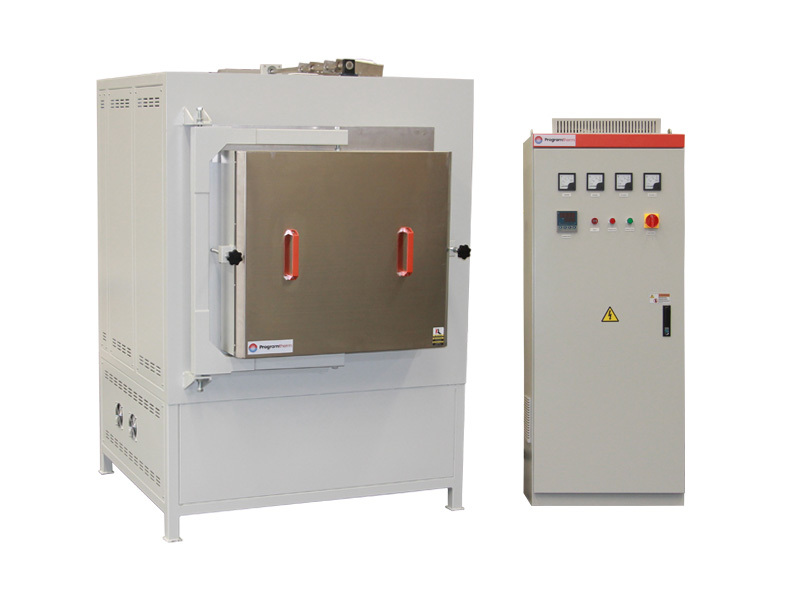

1800℃ Chamber Furnace for sintering specialty ceramics
- PC L216/18 Chamber Furnace consists of four parts: dual air-cooling carbon steel shell, ceramic chamber, automatic exhaust piping system and temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components,long service life.
- Export quality,ISO,CE certified.

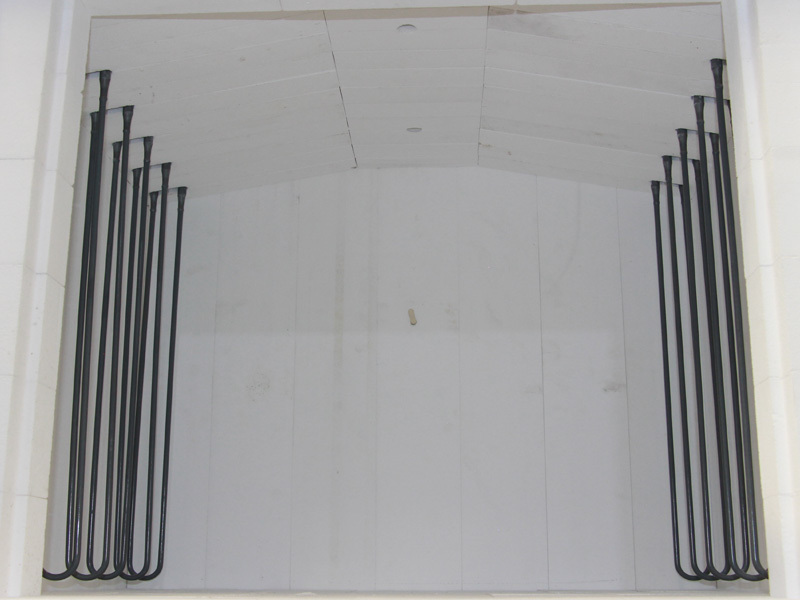

1800℃ Industrial Chamber Furnace,Chamber
- Chamber lining uses composite ceramic structure, the thickness of the side wall is 240mm, good insulation performance
- The top of the furnace adopts arched roof design, sturdy and durable
- The inner of the chamber is made of new ceramic material spliced together
- The chamber bottom adopts alumina bubble brick,CNC carved,excellent acid and alkali resistance
- New type U-shape MoSi2 rods heated, evenly arranged in the left and right sides of the chamber, stable resistance, uniform temperature field
- B type thermocouple, long service life
1800℃ Industrial Chamber Furnace,Exhaust piping system
- Furnace top opening,automatic chimney device is installed on the top of the furnace
- Opens automatically when the furnace temperature falls below 200C

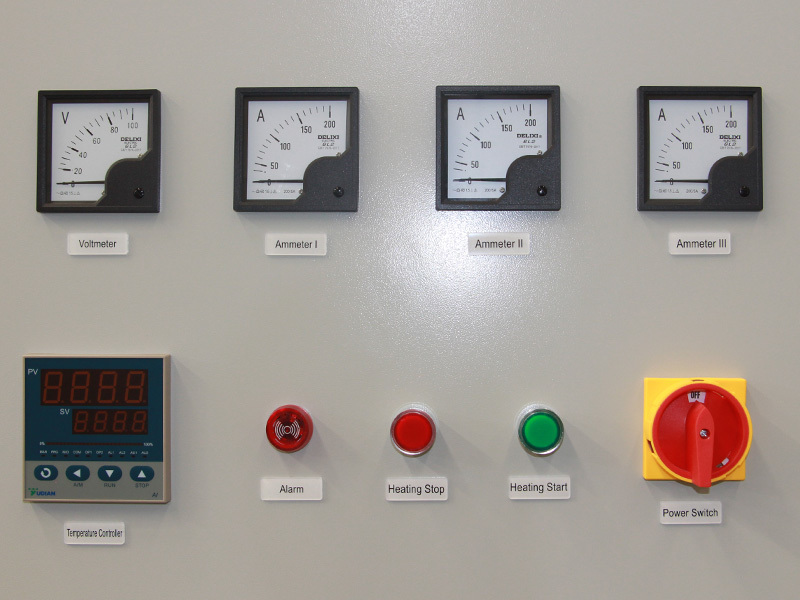

Temperature controller of 1800℃ Chamber furnace
- Temperature control system adopts split design.Consists of temperature control instrument,ammeter,voltmeter, function buttons and alarm indicators.
- Yudian PID temperature controller,30 segments programmable,high temperature control accuracy.(Yudian, Shimaden, Euro, touch screen optional)
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface (Optional)
-
Detail Technical Specifications
Model No. PC L216/18 Chamber size (DxWxH) D600xW600xH600mm Capacity 216L Structure Outer shell/Insulation chamber/Furnace door/Automatic exhaust piping system/Temperature control system Power supply 26.4KW AC480V/3Ph 60Hz Phase 3 phases Working temperature TMax 1800℃(3272°F)
Continuously 1700℃ (3092°F)Temperature uniformity +/- 5℃ Temperature range Rt-1800℃ Temperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°CHeating elements New type U-shape MoSi2 rods, evenly arranged in the left and right sides Heating rate Max：10℃/min
Recommend：1-8℃/minThermocouple type B Furnace shell Double carbon steel with fan-cooling housing Chamber material Composite ceramic structure Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Fire door/Two additional MoSi2 rod/Manual book Optional accessories Exhaust piping system Shipment information Weight:1800 kgs
W1600xL2200xH2300mmAfter-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PC L200/12
PC L300/12 PC L450/12 PC L660/12 Inner size(DxWxH) 530x500x720mm 700x550x780mm 750x600x1000mm 1100x600x1000mm Capacity 200L 300 L 450 L 660 L Power supply 28 KW 30 KW 45 KW 60 KW Furnace dimensions(LxWxH) 1310x1400x1560mm 1480x1450x1570mm 1500x1530x1770mm 1850x1530x1770mm Weight 930 KGS 960 KGS 1600 KGS 1820 KGS -
