1200℃ 1200L Manual Bogie Type Annealing Furnace
PB L1200/12M
Classification:
Industrial manual trolley furnace,JM26# Lightweight high alumina bricks chamber,HRE alloy coil wire heated,mounted on ceramic tube,5 sides heating,Shimaden PID controller,The trolley can move freely.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200℃ 1200L Manual Bogie Type Annealing Furnace
- Commodity ID: PB L1200/12M
- 产品概述: Industrial manual trolley furnace,JM26# Lightweight high alumina bricks chamber,HRE alloy coil wire heated,mounted on ceramic tube,5 sides heating,Shimaden PID controller,The trolley can move freely.
<p>Hand-pull bottom trolley,move freely,load on four sides</p> <p>Excellent load-bearing capacity,300KG to 1T</p> <p>Dual zones,HRE alloy coil wire,mounted on ceramic tube,5 sides heating</p>
Product Overview
PB L1200/12M is a manual trolley furnace for industrial heat treatment,consists of furnace body, trolley, temperature control system, etc.Carbon steel double housing,excellent strength and durability, good corrosion resistance.JM26# Lightweight high alumina bricks chamber,long-term stable operation in high temperature environment. HRE alloy coil wire heated,mounted on ceramic tube,5 sides heating,uniform temperature field.The trolley can move back and forth to facilitate loading of materials.Shimaden PID controller, 32 segments programmable,high temperature control accuracy.Bogie hearth furnaces are mainly used for production of magnesia – carbon bricks, annealing, quenching or hardening castings or larger parts such as tool steel moulds or semiconductor moulds.(600°C and 1150°C)
Main Features
- TMax 1200℃
- Manual trolley bottom, loading capacity 300KG to 1T, move safely on the track (automatic trolley bottom optional)
- JM26# Lightweight high alumina bricks chamber,arched structure.Alumina fiber insulation layer, good thermal insulation effect
- SIC bottom plate covers and protects the furnace bottom, high mechanical strength, good thermal conductivity, horizontal load bearing
- Five-sided heating maximizes heat radiation efficiency and provides optimal temperature uniformity
- Dual zones, independent control. Smart Shimaden PID temperature controller, 32 heating programs, temperature control accuracy ±1℃.
- Heating rate 0℃-20℃/min adjustable
- N-type thermocouple,long service life
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

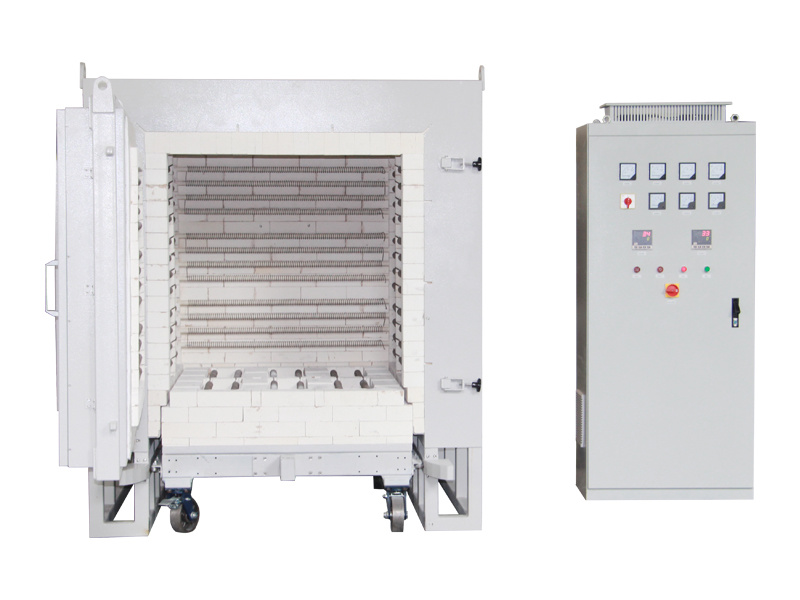

1200℃ Manual Bogie Type Annealing Furnace
- PB L1200/12M Manual Bogie Type Annealing Furnace consists of three parts: furnace body, trolley and track, temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components,long service life.
- Export quality,ISO,CE certified.

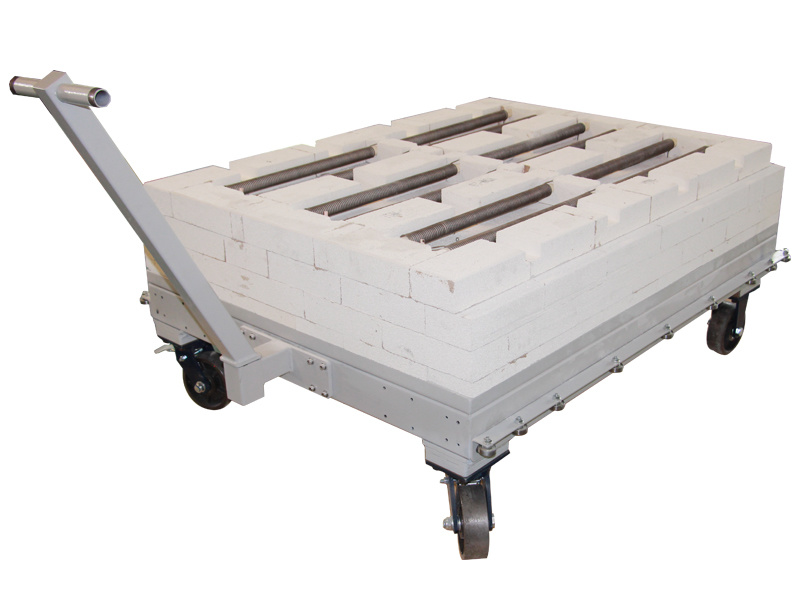

1200℃ Manual Bogie Type Annealing Furnace,Furnace bottom trolley
- Stable Structure, bear heavy weight.
- Excellent load-bearing capacity, load capacities 300KG to 1T, move safely on tracks.
- Trolley bottom is designed to be flexible,accommodate goods of different shapes and sizes.
- Made of wear-resistant and corrosion-resistant materials, stability and durability for long-term use.

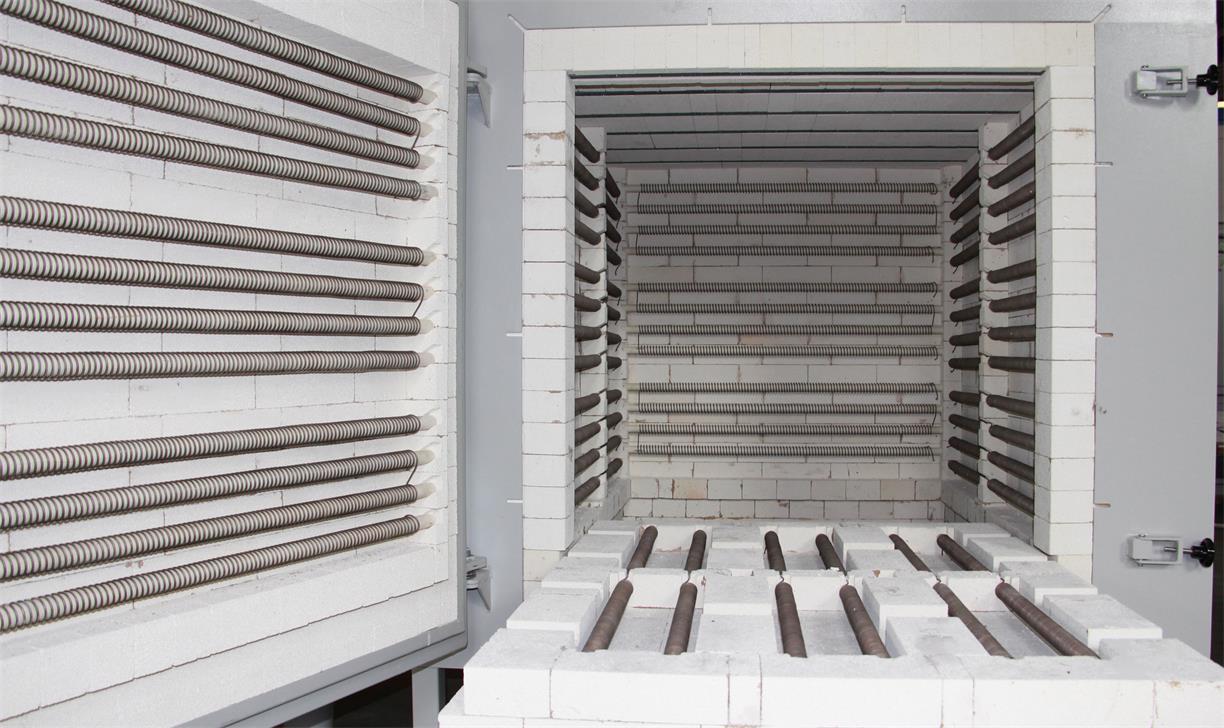

1200℃ Manual Bogie Type Annealing Furnace,Chamber
- JM26# Lightweight high alumina bricks chamber,alumina fiber insulation.Square chamber,chamber walls tight coupling.
- SIC bottom plate covers and protects the furnace bottom, high mechanical strength, good thermal conductivity, horizontal load bearing
- HRE alloy coil wire heated,mounted on the ceramic tube,5-sided heating,uniform temperature field,TMax 1200℃.
- N-type thermocouple,long service life.

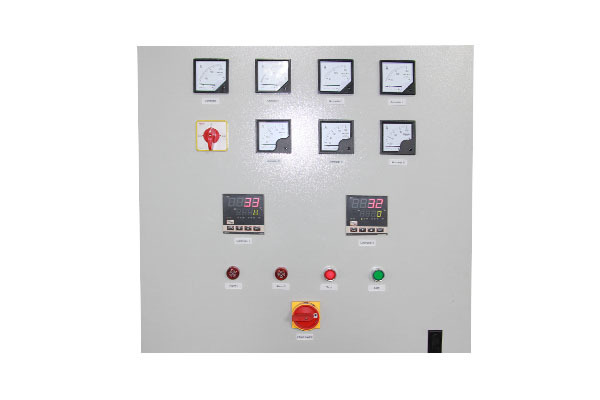

1200℃ Manual Bogie Type Annealing Furnace,Electrical control panel.
- Dual zones, independent control.Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.（Yudian, Shimaden, Euro, touch screen optional）
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function.
- With 485 communication interface (Optional)
Heating and cooling of 1200℃ Manual Bogie Type Annealing Furnace
- Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
- Good thermal insualtion, natural cooling, cooling down gently.
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PB L1200/12M Chamber size (DxWxH) D1200xW1000xH1000mm /48x40x40″ Capacity 1200L Structure Outer shell/Insulation chamber/Furnace door/Trolley and track/Temperature control system Power supply 120KW
AC380-415V
50/60HzPhase 3 phases Working temperature TMax 1200℃(2192°F)
Continuously 1100℃ (2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements HRE alloy coil wire，mounted on ceramic tube，5 sides heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N,Equip three pcs Furnace shell Carbon steel double housing, Environmental friendly powder electrostatic spraying Chamber material JM26# Lightweight high alumina brick,high temperature resistance,efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Exhaust piping system Shipment information Weight：2120kgs
L2900xW2030xH1670mmAfter-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
2. Workpieces should be handled with care during loading and unloading, placed firmly. Loaded workpieces must not exceed trolley's working surface.
3. Please do not inject flammable, explosive or highly corrosive gases.Similar model comparison
Model.No PB L450/12M PB L960/12M PB L1000/12M Inner size(DxWxH) 750x600x1000mm 1200x800x1000mm 1000x1000x1000mm Capacity 450 L 960 L 1000 L Power supply 30 KW 70 KW 80 KW Furnace dimensions(LxWxH) 1700x1530x1770mm 2164x1455x1845mm 2564x1655x2045mm Weight 1780 KGS 2500 KGS 2700 KGS
