1200℃ Electric Bogie Hearth Furnace
PB L2288/12E
Classification:
Automatic electric bogie furnace,JM26# high alumina brick chamber,HRE alloy coil wire heated,5 sides heating,Shimaden PID controller,Dual zones independent control.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200℃ Electric Bogie Hearth Furnace
- Commodity ID: PB L2288/12E
- 产品概述: Automatic electric bogie furnace,JM26# high alumina brick chamber,HRE alloy coil wire heated,5 sides heating,Shimaden PID controller,Dual zones independent control.
<p>Automatic lift door with hydraulic workstation</p> <p>Bottom trolley automatically drives in and out</p> <p>Electric exhaust system for optimal ventilation and rapid cooling</p> <p>Loading capacity 1 ton-5 tons</p>
Product Overview
PB L2288/12E is an Electric Bogie Hearth Furnace,consists of furnace body, trolley, temperature control system etc,.Carbon steel double housing,excellent strength and durability, good corrosion resistance.JM26# Lightweight high alumina bricks chamber,long-term stable operation in high temperature environment. HRE alloy coil wire heated,mounted on ceramic tube,5 sides heating,uniform temperature field.The trolley can move back and forth to facilitate loading of materials.Shimaden PID controller, 32 segments programmable,high temperature control accuracy.Widely used in small, medium and large industries for various industrial heating and heat treatment processes, such as heating steel, ceramics, etc. (600°C-1150°C). Suitable for production of magnesia – carbon bricks, annealing of steel, tempering of non-ferrous metals, impurity removal and quenching. In addition, it can be used for baking and sintering of ceramic applications.
Main Features
- TMax 1200℃
- Automatic lift door with hydraulic workstation
- Bottom trolley automatically drives in and out
- Loading capacity 1 ton-5 tons
- SIC bottom plate covers and protects the furnace bottom, high mechanical strength, good thermal conductivity, horizontal load bearing
- JM26# Lightweight high alumina bricks chamber,arched structure.Alumina fiber insulation layer, good thermal insulation effect
- Self-supporting and long-lived ceiling structure, bricks laid in an arched structure
- Dual zones, independent control. Smart Shimaden PID temperature controller, 32 heating programs, temperature control accuracy ±1℃.
- HRE alloy coil wire heated,mounted on ceramic tube,5 sides heating

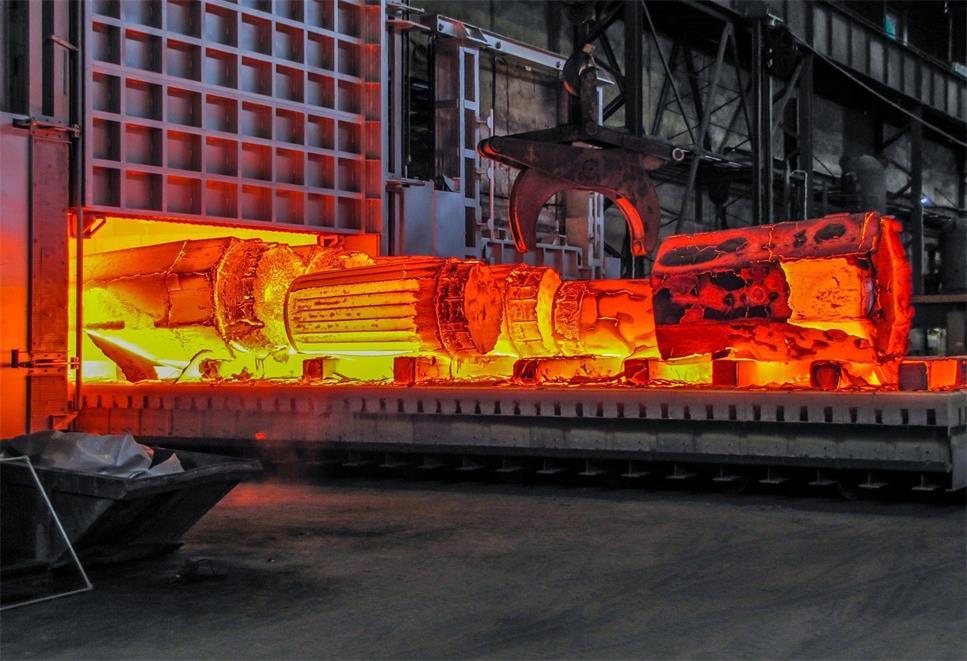

- Bogies with flanged wheels run on rails, allowing heavy loads to be moved easily and precisely
- Electric exhaust system for optimal ventilation and rapid cooling
- Heating rate 0℃-20℃/min adjustable
- N-type thermocouple
- High efficiency and energy saving, convenient operation, safe and reliable
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details
1200°C Electric Bogie Hearth Furnace
- PB L2288/12E Electric Bogie Hearth Furnace consists of three parts: furnace body, trolley and track, temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components,long service life.
- Export quality,ISO,CE certified.
1200°C Electric Bogie Hearth Furnace,Chamber
- JM26# Lightweight high alumina bricks chamber,alumina fiber insulation,work stably for a long time in high temperature environment,good heat preservation effect
- SIC bottom plate covers and protects the furnace bottom, high mechanical strength, good thermal conductivity, horizontal load bearing
- HRE alloy coil wire heated,mounted on the ceramic tube,5-sided heating,uniform temperature field,TMax 1200℃.
- N-type thermocouple,long service life.
1200°C Electric Bogie Hearth Furnace,Temperature control system
- Dual zones, independent control.Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy
- Good thermal insualtion, natural cooling, cooling down gently.

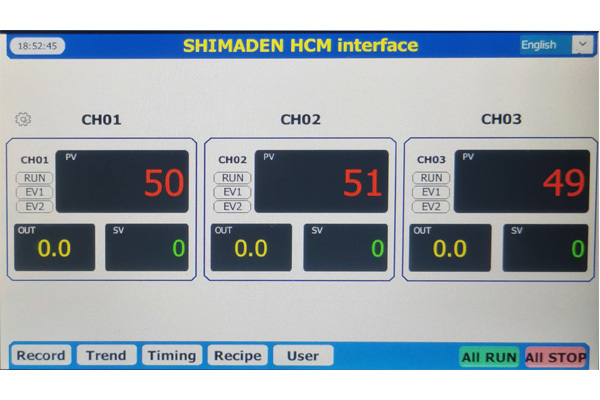

- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PB L2288/12E Chamber size (DxWxH) D1600xW1300xH1100mm /64x52x44″ Capacity 2288L Structure Outer shell/Insulation chamber/Furnace door/Trolley and track/Temperature control system Power supply 160KW
AC380-415V
50/60HzPhase 3 phases Working temperature TMax 1200℃(2192°F)
Continuously 1100℃ (2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements HRE alloy coil wire，Mounted on ceramic tube，5 sides heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N,Equip three pcs Furnace shell Carbon steel double housing, Environmental friendly powder electrostatic spraying Chamber material JM26# Lightweight high alumina bricks,high temperature resisitance,efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Exhaust piping system Shipment information Weight：3790kgs
L2500xW2330xH2370mmAfter-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
2. Workpieces should be handled with care during loading and unloading, placed firmly. Loaded workpieces must not exceed trolley's working surface.
3. Please do not inject flammable, explosive or highly corrosive gases.Similar model comparison
Model.No PB L450/12E PB L960/12E PB L1200/12E Inner size(DxWxH) 750x600x1000mm 1200x800x1000mm 1500x800x1000mm Capacity 450 L 960 L 1200 L Power supply 30 KW 70 KW 80 KW Furnace dimensions(LxWxH) 1700x1530x1770mm 2164x1455x1845mm 2564x1655x2045mm Weight 1780 KGS 2500 KGS 3000 KGS
