1400°C 64L Atmosphere Sintering Furnace
PA L64/14
Classification:
Tmax 1400℃.Carbon steel double sealed housing.1600# polycrystalline ceramic fiber chamber.SIC rod heated.Shimaden PID temperature controller,programmable 32 segments.Work in air, inert gas and rough vacuum environment,Max 50000Pa.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1400°C 64L Atmosphere Sintering Furnace
- Commodity ID: PA L64/14
- 产品概述: Tmax 1400℃.Carbon steel double sealed housing.1600# polycrystalline ceramic fiber chamber.SIC rod heated.Shimaden PID temperature controller,programmable 32 segments.Work in air, inert gas and rough vacuum environment,Max 50000Pa.
<p>Polycrystalline ceramic fiber chamber,CNC carved</p> <p>Gas float flowmeter,multi gas inlet and outlet</p> <p>Stainless steel ball valve, silicone gasket and pressure gauge</p>
Product Overview
PA L64/14 is an Atmosphere Sintering Furnace.Carbon steel double sealed housing.1600# polycrystalline ceramic fiber chamber. Heating element uses SIC rod.Shimaden PID temperature controller,programmable 32 segments,high temperature control accuracy.Gas port uses 1/4" hose barb,work in air, inert gas and rough vacuum environment,Max 20000Pa.Atmosphere muffle furnaces are mainly used for calcination process or pyrolysis,material synthesis in laboratories or research institutes,providing an environment for various purposes in many heat treatment experiments,such as manufacturing steel hydraulic fittings.
Main Features
- TMax 1400°C
- 1600# polycrystalline ceramic fiber raw materials,CNC carved,high temperature resistance,efficient energy saving
- Carbon steel double sealed housing,furnace surface water cooling circulation,reduce surface temperature
- Multi-set air inlet and outlet,equipped with gas float flowmeter,stainless steel ball valve, silicon gasket and pressure gauge
- Double furnace door design, special sealing structure, stable working environment
- Available gases:H2, Ar, N2 etc
- SIC rod,both sides heating,uniform temperature field
- Heating rate 0℃-20℃/min adjustable
- Durable Type S Thermocouple,long service life
- Max 50000Pa
- Smart 32-segment programmable automatic temperature control
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

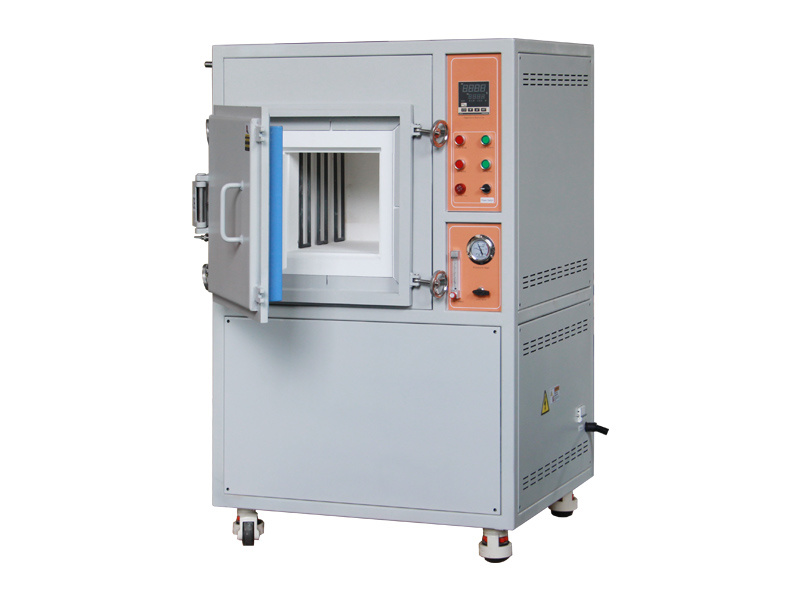

1400°C Atmosphere Sintering Furnace
- PA L64/14 Atmosphere Sintering Furnace consists of four parts: furnace body, atmosphere control system,temperature control system and water-cooling system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.Furnace surface water cooling circulation,the surface temperature Rt+45℃.
- Siemens electrical components, long service life.
- Export quality, ISO,CE certified.

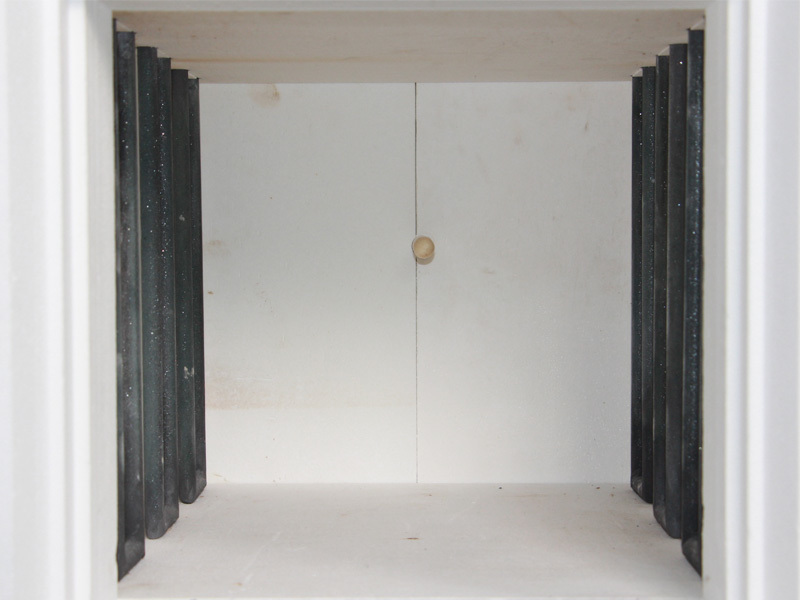

1400°C Atmosphere Sintering Furnace Chamber
- Chamber lining uses 1600# polycrystalline ceramic fiber raw materials,CNC carved.Square chamber,chamber walls tight coupling.
- Sealing chamber prevents gas leakage
- SIC rod heated,both sides heating,uniform temperature field,TMax 1400°C.
- S-type thermocouple,movable,meet temperature measurement requirements at different locations,long service life

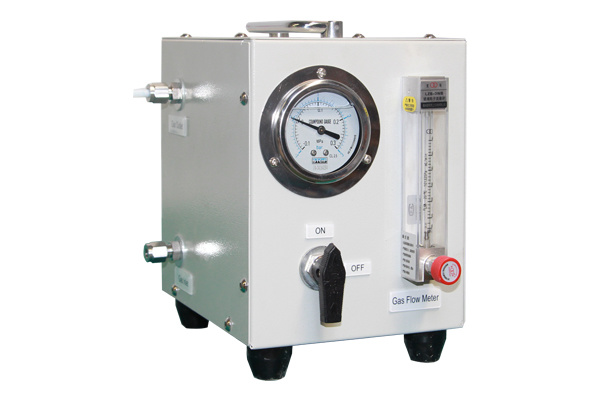

1400°C Atmosphere Sintering Furnace,Individual set float flow control system
- Individual set of single channel gas supplying device,small size.Gas supply box panel is equipped with reserved gas inlet and outlet, pressure gauge and gas valve
- Double ferrule joints,connect to OD6mm stainless steel tube,gas float flowmeter,the flow rate is adjustable ranges 60-600ml/min
- Available gases: N2, Ar, H2, CO etc.
NOTE：When filling reducing gases, check valves, one-way valves, exhaust gas treatment systems, etc. need to be configured
-
Detail Technical Specifications
Model No. PA L64/14 Chamber size (DxWxH) D400xW400xH400mm /16x16x16″ Capacity 64L Structure Outer shell/Insulation chamber/Furnace door/Atmosphere control system/Temperature control system/Water-cooling system Power supply 18KW
AC380V
50/60HzPhase 3 phases Working temperature TMax 1400℃ (2552°F)
Continuously 1300℃(2372°F)Temperature uniformity +/- 5℃ Temperature range Rt-1400℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements U-shape SIC rod (8pcs） Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type S Furnace shell Carbon steel double water-cooling housing Chamber material 1600# Polycrystalline Ceramic Fiber Raw Materials,CNC carved,high temperature resistance,efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Atmosphere performance H2, Ar, N2 etc.
Not to exceed 0.03 MPa/150torr/3psiVacuum performance Max 50000Pa Gas supplying system 1/4" pagoda gas nozzle，Individual set float flow control system
Multi-set air inlet and outlet
Gas flow 1-10L/minCompliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/Fire door/Individual set of gas supplying device/Vacuum valve interface/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Vacuum pump/Chiller/Gas Detection System Shipment information Weight：560kgs
W1140*L1160*H2050mmAfter-sales 1. Consumables such as heating elements, transducer, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Gas pressure in the furnace tube should not be higher than 0.02MPa.
2. High gas cylinder pressure. Use pressure reducing valve when introducing gas to furnace.
3. When using flammable and explosive gases for experiments, safety accessories must be equipped.
4. When the operating temperature exceeds 1400℃, cold water circulation device must be installed.
5. The equipment room must be well ventilated.Similar model comparison
Model.No PA L3/14 PA L12/14 PA L36/14 Inner size(DxWxH) 150x150x150mm 300x200x200mm 400x300x300mm Capacity 3 L 12 L 36 L Power supply 4 KW 6 KW 13 KW Furnace dimensions(LxWxH) 560x760x1310mm 700x810x1360mm 800x920x1450mm Weight 290 KGS 356 KGS 460 KGS
