1700°C Additive Manufacturing Controlled Atmosphere Furnace
PA L12/17
Classification:
Sealed structure.1800# polycrystalline fiber chamber,high-quality new type MoSi2 rod heated,Yudian PID controller,Work in air, inert gas and rough vacuum environment,Max 50000Pa.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1700°C Additive Manufacturing Controlled Atmosphere Furnace
- Commodity ID: PA L12/17
- 产品概述: Sealed structure.1800# polycrystalline fiber chamber,high-quality new type MoSi2 rod heated,Yudian PID controller,Work in air, inert gas and rough vacuum environment,Max 50000Pa.
<p>Polycrystalline fiber sealing chamber,CNC carved</p> <p>Gas float flowmeter,multi-set gas inlet and outlet</p> <p>Max gauge pressure 0.03Mpa, Max vacuum – 0.09Mpa</p> <p>Available gases:H2, Ar, N2 etc.</p>
Product Overview
PA L12/17 is a Controlled Atmosphere Furnace,sealed structure.1800# polycrystalline fiber chamber.Heating element uses high-quality new type MoSi2 rod.Yudian PID controller,programmable 30 segments,good stability and high temperature control accuracy.Gas port uses 1/4" hose barb,work in air, inert gas and rough vacuum environment,Gas pressure not exceed 0.03MPa / 150torr / 3 psi.Max vacuum 50000Pa.In many heat treatment experiments such as additive manufacturing, controlled atmosphere furnaces provide the environment for a variety of purposes, providing the controlled temperature and atmosphere required for a specific project. It's widely used for calcination process or pyrolysis, melting by using crucibles, heat treatment of steels, oxidation, sintering, reduction and so on, Metals, alloys, ceramics, Nitrogen and Argon etc.
Main Features
- TMax 1700°C
- Carbon steel double housing,furnace surface water cooling circulation,reduce surface temperature
- Double furnace door design, special sealing structure, stable working environment
- 1800# polycrystalline ceramic fiber raw materials,CNC carved,high temperature resistance,efficient energy saving
- Multi-set air inlet and outlet,equipped with gas float flowmeter,stainless steel ball valve, silicone gasket and pressure gauge
- Max gauge pressure 0.03Mpa, Max vacuum – 0.09Mpa
- Available gases:H2, Ar, N2 etc
- High-quality new type MoSi2 rod,both sides heating,uniform temperature field
- Type B Thermocouple,long service life
- Heating rate 0℃-10℃/min adjustable
- Phase-shift trigger, thyristor control
- Smart 30-segment programmable automatic temperature control,high temperature control accuracy
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

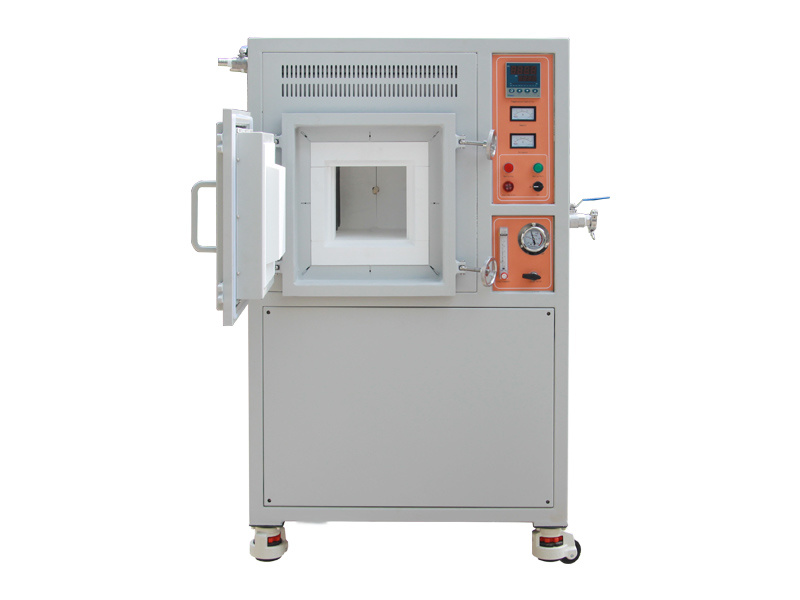

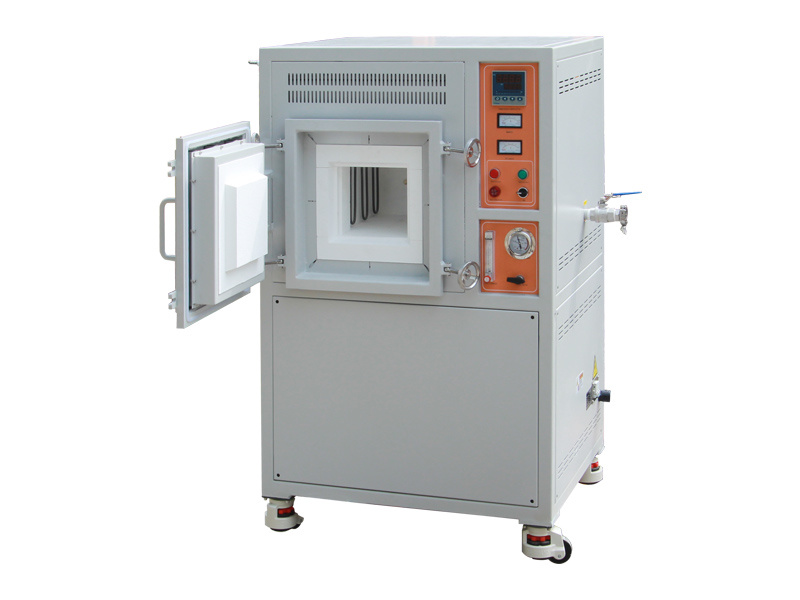

1700°C Additive Manufacturing Controlled Atmosphere Furnace
- PA L12/17 Additive Manufacturing Controlled Atmosphere Furnace consists of five parts: furnace body,atmosphere control system,vacuum system,water-cooling circulation system and temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.Furnace surface water cooling circulation,surface temperature Rt+45℃.
- Siemens electrical components, long service life.
- Export quality, ISO,CE certified.

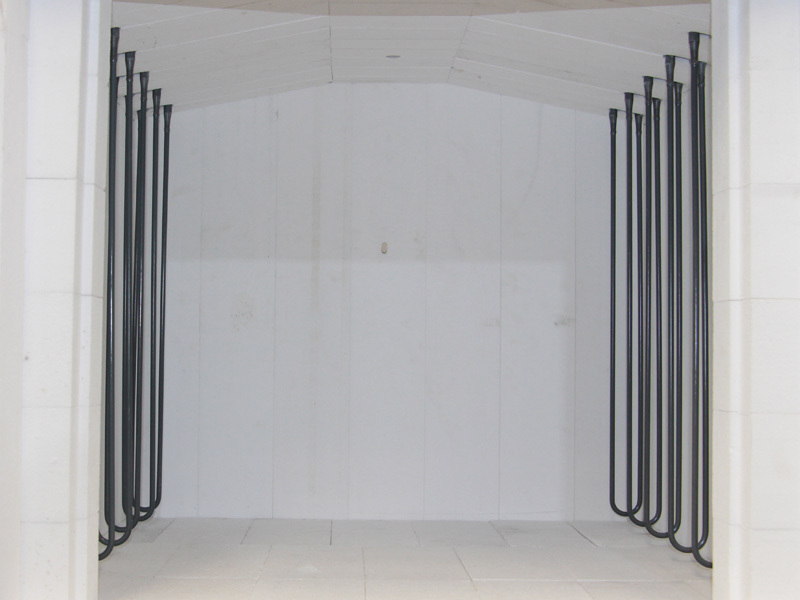

1700°C Additive Manufacturing Controlled Atmosphere Furnace,Chamber
- Chamber lining uses 1800# polycrystalline ceramic fiber raw materials,CNC carved.Square chamber,chamber walls tight coupling.
- High-quality new type MoSi2 rod,both sides heating,uniform temperature field,TMax 1700°C.
- B-type thermocouple,movable,meet temperature measurement requirements at different locations,long service life
1700°C Additive Manufacturing Controlled Atmosphere Furnace,Individual set float flow control system
- Individual set of single channel gas supplying device,small size.Gas supply box panel is equipped with reserved gas inlet and outlet, pressure gauge and gas valve
- Double ferrule joints,connect to OD6mm stainless steel tube,gas float flowmeter,the flow rate is adjustable ranges 60-600ml/min
- Available gases: N2, Ar, H2, CO etc
- Gas port uses 1/4" hose barb,work in air, inert gas and rough vacuum environment,Gas pressure not exceed 0.03MPa / 150torr / 3 psi.Max vacuum 50000Pa
NOTE：When filling reducing gases, check valves, one-way valves, exhaust gas treatment systems, etc. need to be configured
Heating programs for 1700°C Atmosphere Furnace
- Yudian PID controller,programmable 30 segments, heating rate 1-10C/min freely adjusted
- Good thermal insualtion, natural cooling, cooling down gently
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PA L12/17 Chamber size (DxWxH) D300xW200xH200mm /12x8x8″ Capacity 12L Structure Outer shell/Insulation chamber/Furnace door(double design)/Temperature control system/Atmosphere control system/Vacuum system/Water-cooling circulation system Power supply 6KW AC220V 50/60Hz Phase Single phase Working temperature TMax 1700℃(3092℉)
Continuously 1600℃(2912℉)Temperature uniformity +/- 5℃ Temperature range Rt-1700℃ Temperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°CHeating elements U-shape MoSi2 rod(4pcs) Heating rate Max：10℃/min
Recommend：1-8℃/minThermocouple type B Furnace shell Carbon steel double water-cooling housing Chamber material 1800# Polycrystalline fiber raw material,CNC carved,high temperature resistance,efficient energy saving Electric components Schneider or Siemens maker air switch,AC contactor,Solid state relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Atmosphere performance H2, Ar, N2 etc.
Not to exceed 0.03 MPa/150torr/3psi
Vacuum performance Max 50000Pa Gas supplying system 1/4" pagoda gas nozzle，Individual set float flow control system
Multi-set air inlet and outlet
Gas flow 1-10L/minCompliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/Fire door/Heating body/Gas pipe/Two additional MoSi2 rod/Manual book Optional accessories Vacuum pump/Chiller/Gas Detection System Shipment information Weight：375kgs
W970xL950xH1550mmAfter-sales 1. Consumables such as heating elements, thermocouple etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Gas pressure in the furnace tube should not be higher than 0.02MPa.
2. High gas cylinder pressure. Use pressure reducing valve when introducing gas to furnace.
3. When using flammable and explosive gases for experiments, safety accessories must be equipped.
4. When the operating temperature exceeds 1400℃, cold water circulation device must be installed.
5. The equipment room must be well ventilated.Similar model comparison
Model.No PA L3/17 PA L8/17 PA L20/17 Inner size(DxWxH) 150x150x150mm 200x200x200mm 400x300x300mm Capacity 3 L 8 L 20 L Power supply 4 KW 5 KW 7 KW Furnace dimensions(LxWxH) 560x760x1310mm 700x810x1360mm 750x860x1450mm Weight 290 KGS 330 KGS 380 KGS
