1200℃ 64L Chamber Furnace
PC L64/12
Classification:
TMax 1200℃.Carbon steel double housing.Small, lightweight cubic chamber.Chamber lining uses ceramic fiber.HRE alloy coil wire heated,5-sided heating.Smart Shimaden PID controller, 32 segments programmable.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200℃ 64L Chamber Furnace
- Commodity ID: PC L64/12
- 产品概述: TMax 1200℃.Carbon steel double housing.Small, lightweight cubic chamber.Chamber lining uses ceramic fiber.HRE alloy coil wire heated,5-sided heating.Smart Shimaden PID controller, 32 segments programmable.
<p>Lab and industrial dual-use,square box chamber</p> <p>Arched furnace top with exhaust piping system</p> <p>HRE alloy coil wire,5-sided heating,uniform temp field</p>
Product Overview
PC L64/12 is a standard chamber furnace for laboratory use.Carbon steel double housing.Small, lightweight cubic chamber.Ceramic box with embedded heating wire.Chamber lining uses ceramic fiber,high temperature resistance.Heating element uses HRE alloy coil wire,5 sides heating,N-type thermocouple.Smart Shimaden PID controller, 32 segments programmable.Suitable for a variety of heat treatment applications on a variety of materials. An ideal tool for copper material sintering, preparing small-sized samples in materials research and daily use in dental laboratories.
Main Features
- TMax 1200℃
- Small, squre chamber, self-developed new arched furnace top, equip an exhaust piping system.
- Ceramic fiber chamber,good high temperature resistance,reduce energy loss
- HRE alloy coil wire heated,5-sided heating,uniform temperature field
- Equip two N-type thermocouples, one for temperature testing,one for protection
- Heating rate 0℃-20℃/min adjustable
- Smart temperature control system 32 segments programmable
- High-quality button material, long service life
- Optional exhaust piping system
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

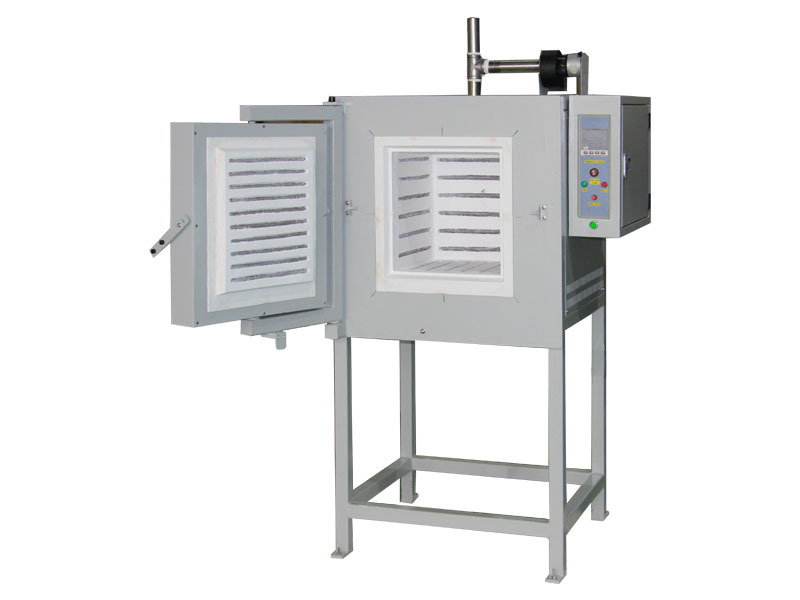

1200°C Chamber Furnace
- PC L64/12 Chamber Furnace consists of three parts: furnace body,exhaust piping system and temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components,long service life.
- Export quality,ISO,CE certified.

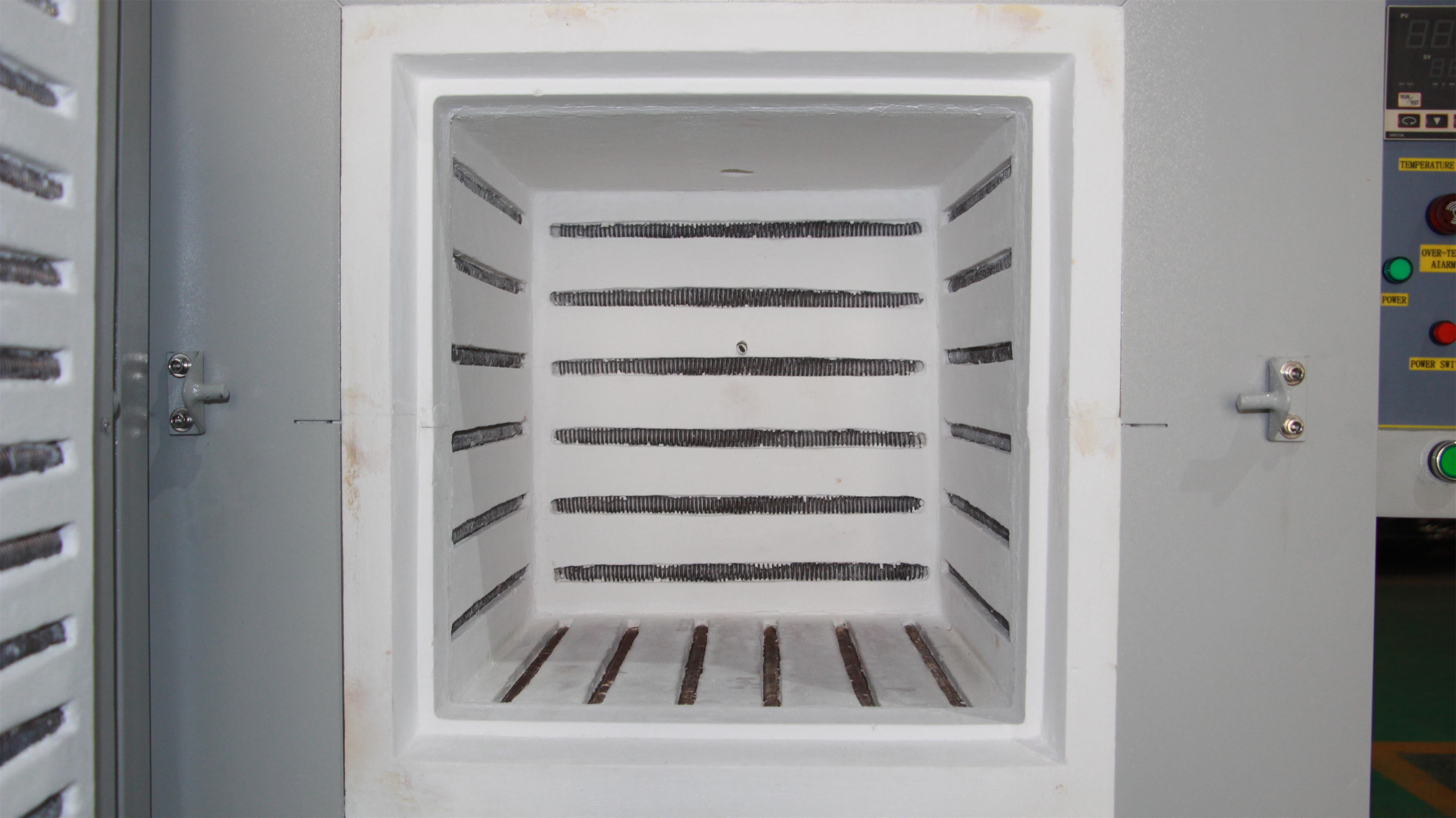

1200°C Chamber Furnace, Chamber
- Chamber lining uses ceramic fiber.Square chamber,chamber walls tight coupling.
- Heating element uses HRE alloy coil wire,5-sided heating,uniform temperature field,TMax 1200℃.
- Equip two N-type thermocouples, one for temperature testing,one for protection.

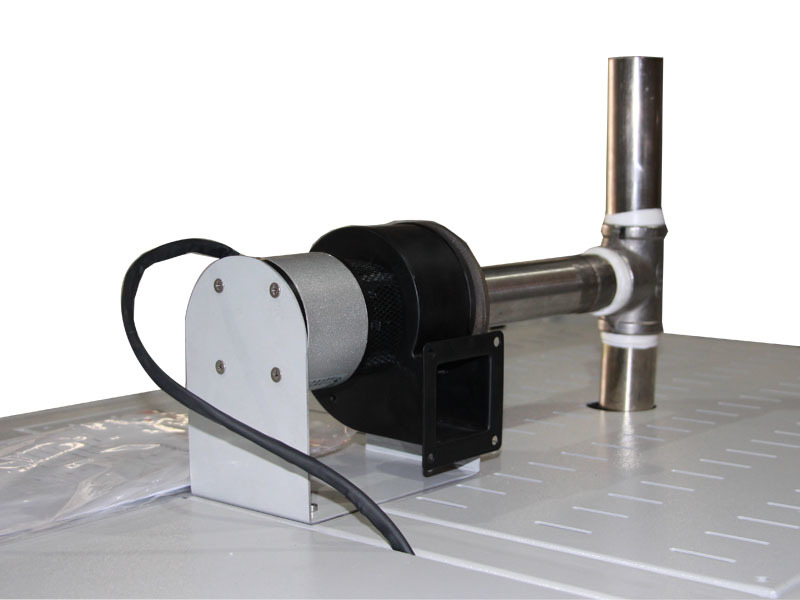

1200°C Chamber Furnace,Exhaust piping system
- Equipped with automatic exhaust piping system, one-touch start.
- Used to extract smoke or exhaust gas generated during the heating process of furnace materials.
- Stainless steel chimney, can be connected to the outside.
Heating and cooling of 1200℃ high temperature Chamber Furnace
- Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
- Good thermal insualtion, natural cooling, cooling down gently.
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PC L64/12 Chamber size (DxWxH) D400xW400xH400mm/16x16x16″ Capacity 64L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system/Exhaust piping system Power supply 15KW AC380-415V 50/60Hz Phase 3 phases Working temperature TMax 1200℃(2192°F)
Continuously 1100℃ (2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements HRE alloy coil wire，5-sided heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N
Equip two pcs, dual protectionFurnace shell Carbon steel double housing Chamber material Ceramic fiber, high temp resistance, efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Exhaust piping system Shipment information Weight：380kgs
L1075xW1050xH1350mmAfter-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PC L96/12 PC L80/12 PC L200/12 PC L300/12 Inner size(DxWxH) 600x400x400mm 500x400x400mm 530x500x720mm 700x550x780mm Capacity 96L 80L 200L 300 L Power supply 18 KW 18 KW 28 KW 30 KW Furnace dimensions(LxWxH) 1380x1310x1410mm 1380x1310x1410mm 1310x1400x1560mm 1480x1450x1570mm Weight 655 KGS 385 KGS 930 KGS 960 KGS
