1200°C 12L Box Type Resistance Muffle Furnace With Chimney
PM L12/12
Classification:
TMax 1200°C. Carbon steel double housing.High aluminum 1500# ceramic fiber chamber,Wet vacuum filter forming, Integral molding.HRE alloy coil wire,3 sides heating, Shimaden PID temperature controller,32 segments programmable.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200°C 12L Box Type Resistance Muffle Furnace With Chimney
- Commodity ID: PM L12/12
- 产品概述: TMax 1200°C. Carbon steel double housing.High aluminum 1500# ceramic fiber chamber,Wet vacuum filter forming, Integral molding.HRE alloy coil wire,3 sides heating, Shimaden PID temperature controller,32 segments programmable.
<p>Run 24/7 for 15 days stably</p> <p>Stainless steel exhaust gas/smoke emission chimney</p> <p>Mitsubishi ceramic fiber chamber,chamber walls tight coupling</p> <p>Embedded alloy coil wire,3 sides heating,Temperature Uniformity </p>
Product Overview
PM L12/12 is Box Type Resistance Muffle Furnace With Chimney. Adopt Carbon steel double housing and beautiful powder electrostatic spraying process. High temperature and corrosion resistant. Chamber lining uses 1500# ceramic fiber imported from Mitsubishi and formed by vacuum filtration,Wet vacuum filter forming, Integral molding.Heating element uses HRE alloy coil wire,3 sides heating,uniform temperature field. Temperature control system uses smart Shimaden PID temperature controller. Users can set 32 periods,high temperature control accuracy. Protection system with Power off, over-temperature, thermocouple breaking and burnout protection.An ideal tool for heat treatment, reaction studies, sintering processes and ceramic firing,such as grain and crude fiber ash testing, heat treatment, ceramic and glass sealing firing, ignition testing and heat treatment of steel parts in laboratories and industry. It's also suitable for cement plant labs, a petrochemical plant, melting aluminum.
Product Video
Main Features
- TMax 1200°C
- Carbon steel double housing,two-color high-quality epoxy powder electrostatic spraying,surface temperature Rt+45℃
- High aluminum 1500# ceramic fiber board,Wet vacuum filter forming, Integral molding
- The furnace bottom is made of wear-resistant alumina insulation material
- HRE alloy coil wire,3 sides heating,uniform temperature field
- Heating rate: 0℃-20℃/min adjustable
- Run 24/7 for 15 days stably
- Durable Type N Thermocouple
- Smart Shimaden PID controller, 32 segments programmable, curve heating and set temperature rate
- Power off, over-temperature, thermocouple breaking and burnout protection
- Siemens electrical components, long service life
- Stable and reliable working environment with high safety
- CE certification
Product Details

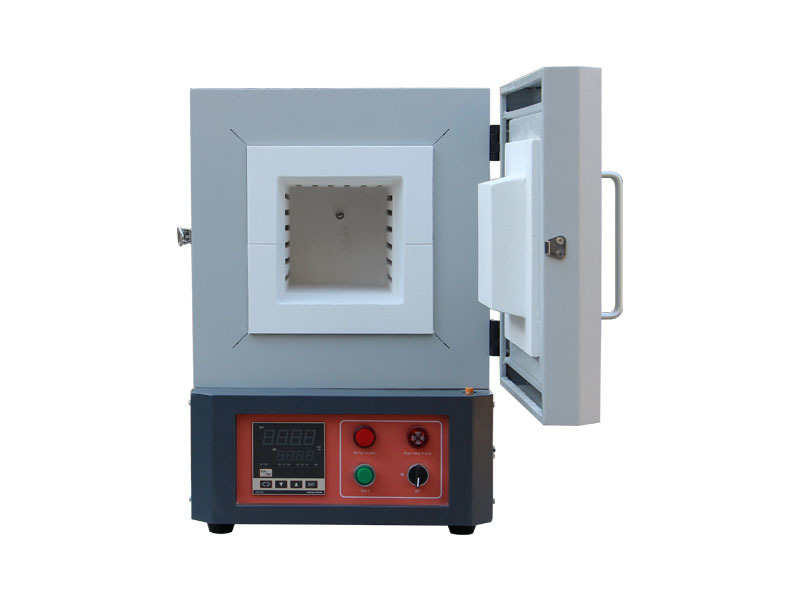

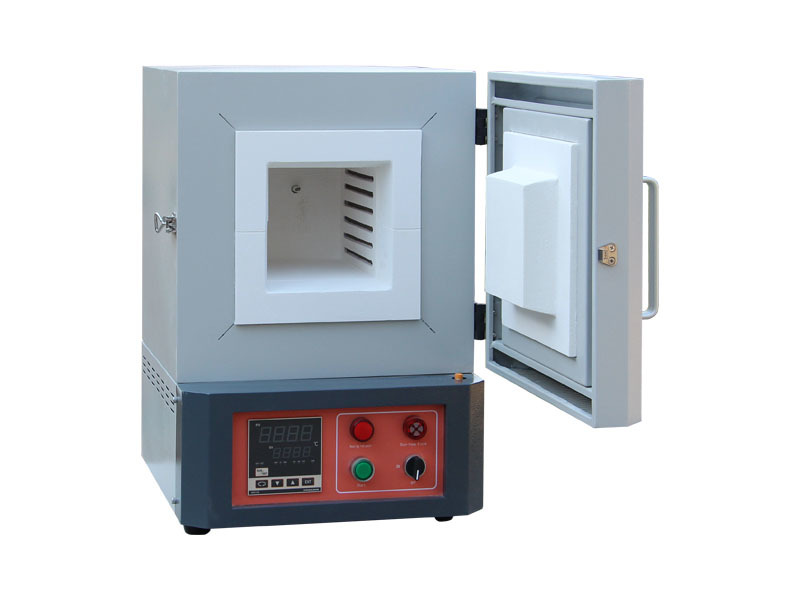

Box Type Resistance Muffle Furnace
- PM L12/12 Box Type Resistance Muffle Furnace consists of two parts: furnace body, temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components,long service life.
- Export quality, CE certified.

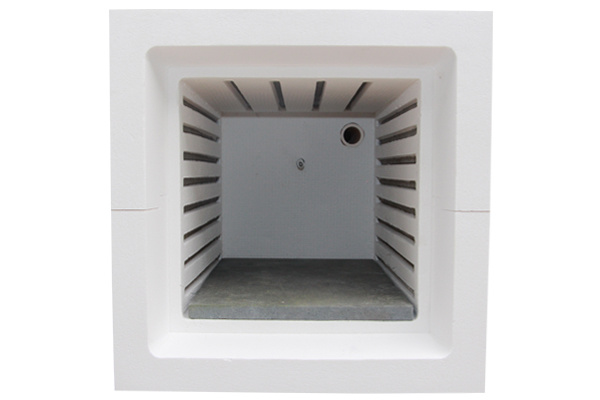

1200°C Box Type Resistance Muffle Furnace,Chamber.
- Chamber lining uses 1500# ceramic fiber imported from Mitsubishi and formed by vacuum filtration,Wet vacuum filter forming, Integral molding.Square chamber,chamber walls tight coupling.
- Heating element uses HRE alloy coil wire, heated on three sides, uniform temperature field,TMax 1200°C.
- Durable N-type thermocouple with long service life.
1200°C Box Type Resistance Muffle Furnace，A stainless steel exhaust chimney.
- A ceramic chimney pipe installed inside the furnace chamber, and a stainless steel exhaust gas/smoke emission chimney is installed at the corresponding position at the rear of the furnace body, sealed with a ceramic plug
- Sample products may generate volatile gas or smoke during the sintering process, it can be piped out from the inside chimney pipe, and the pipe can be connected to the pipeline or installed a exhaust fan to discharge to the outside

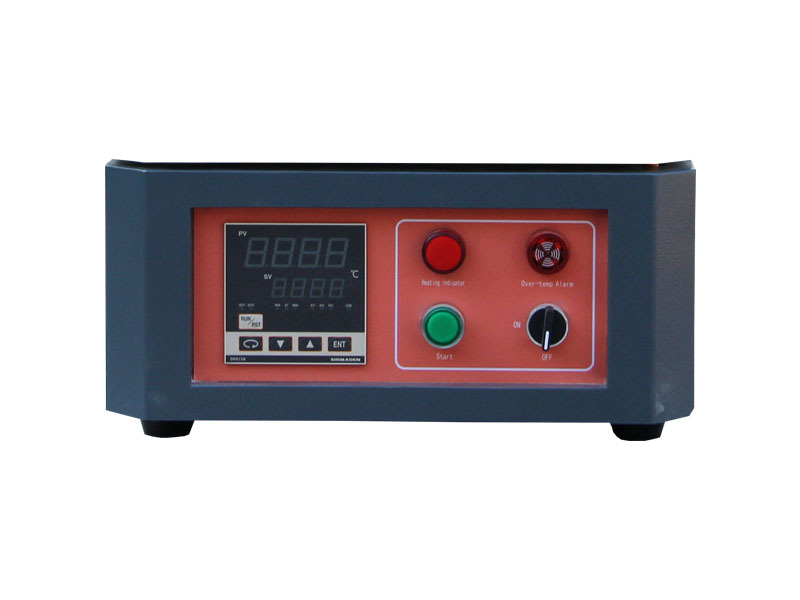

1200°C Box Type Resistance Muffle Furnace，Electrical control panel.
- Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
- Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes.
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface(Optional)

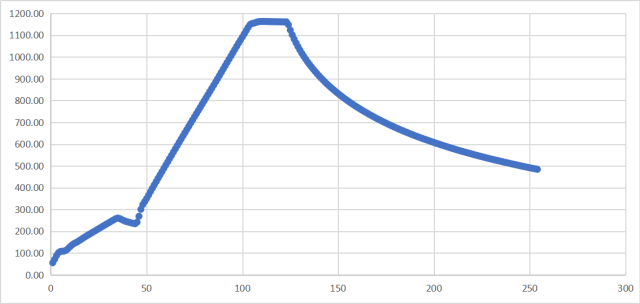

Heating programs for 1200°C Box Type Resistance Muffle Furnace
- Programmable 32 segments，heating rate 1-20C/min freely adjusted.
- Good thermal insualtion, natural cooling, cooling down gently.
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PM L12/12 Chamber size (DxWxH) D300xW200xH200mm /12x8x8″ Capacity 12L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system Power supply 4KW AC208-240V 50/60Hz
Phase Single phase Working temperature TMax 1200℃(2192°F)
Continuously 1100℃(2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements HRE alloy coil wire，3 sides heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N
Equip two pcs, dual protectionFurnace shell Carbon steel double housing Chamber material High aluminum 1500# ceramic fiber board,Wet vacuum filter forming, Integral molding Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Shipment information Weight：97kgs
W660xL830xH930mmCompliance CE,ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Exhaust piping system After-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PM L8/12 PM L18/12 PM L30/12 PM L36/12 Inner size(DxWxH) 300x200x120mm 300x250x250mm 500x300x200mm 400x300x300mm Capacity 8 L 18 L 30 L 36 L Power supply 3 KW 6 KW 7 KW 9 KW Furnace dimensions(LxWxH) 480x630x630mm 610x700x860mm 600x870x740mm 430x870x840mm Weight 60 KGS 90 KGS 130 KGS 145 KGS -
