Laboratory Bench Muffle Chamber Furnace with Vertical Lifting Door 8L
PM L8/12
Classification:
Tmax 1200°C. Lift door design.Carbon steel double shell. Bench Furnace chamber with embedded ceramic. HRE alloy coil wire,3 sides heating. Digital programmable controller.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: Laboratory Bench Muffle Chamber Furnace with Vertical Lifting Door 8L
- Commodity ID: PM L8/12
- 产品概述: Tmax 1200°C. Lift door design.Carbon steel double shell. Bench Furnace chamber with embedded ceramic. HRE alloy coil wire,3 sides heating. Digital programmable controller.
<p>Upper door design,lightweight,save space</p> <p>Vertical Lifting Door,high efficiency,energy saving</p> <p>Digital programmable controller with graphic display of temperature</p>
Product Overview
PM L8/12 is a Laboratory Bench Muffle Chamber Furnace with Vertical Lifting Door, high efficiency and energy saving, uniform heating. Carbon steel double housing. Bench Furnace chamber with embedded ceramic, high resistance to aggressive gasses and vapours. Heating element uses HRE alloy coil wire,3 sides heating, uniform temperature field. Temperature control system uses easy access to elements & controls for maintenance & servicing user friendly digital programmable controllers with graphic display of temperature, providing user levels, real time clock, program names and program log. Process data on a USB drive. Protection system with Power off, over-temperature, thermocouple breaking and burnout protection. Lift door design saves space, the door opening operation is safe and convenient, and the heating surface is away from the user. An ideal tool for laboratory and industrial material testing, annealing and sintering.
Main Features
- TMax 1200°C
- Carbon steel double housing, high-quality epoxy powder electrostatic spraying,surface temperature Rt+45℃
- Lift door design, benchtop lightweight structure, saving space
- Chamber with embedded ceramic, high resistance to aggressive gasses and vapours
- The furnace bottom is equipped with a wear-resistant silicon carbide protective plate
- HRE alloy coil wire, heating on three sides, uniform temperature field
- Heating rate: 0℃-25℃/min adjustable
- Durable Type N Thermocouple
- Digital programmable controller, curve heating and set temperature rate
- Power off, over-temperature, thermocouple breaking and burnout protection
- Siemens electrical components, long service life
- Stable performance, low noise and high safety
- CE certification
Product Details

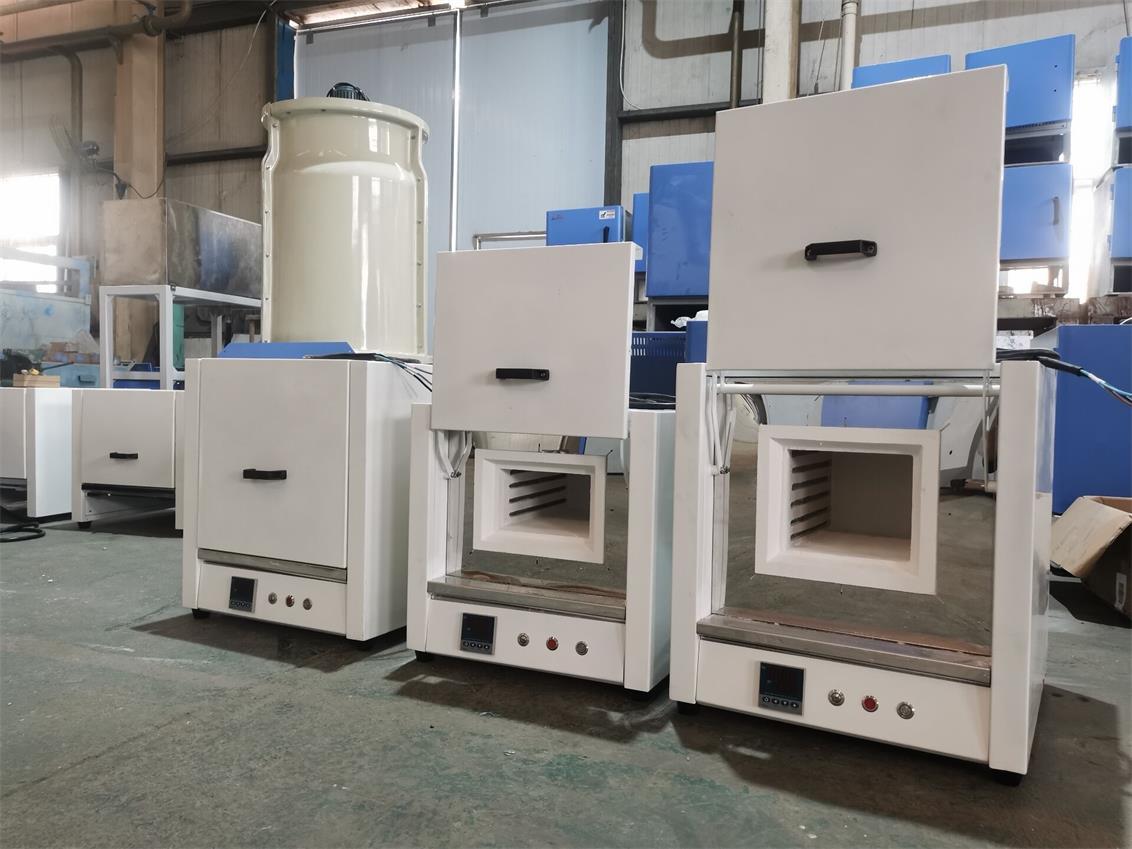

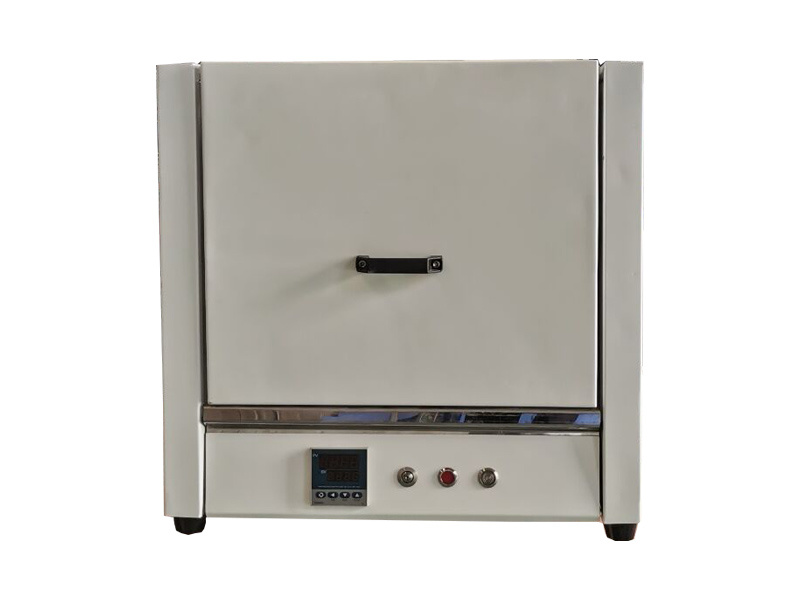

Laboratory Bench Muffle Chamber Furnace with Lift Door
- PM L8/12 Laboratory Bench Muffle Chamber Furnace with lift door consists of two parts: furnace body, temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components, long service life.
- Export quality, CE certified.

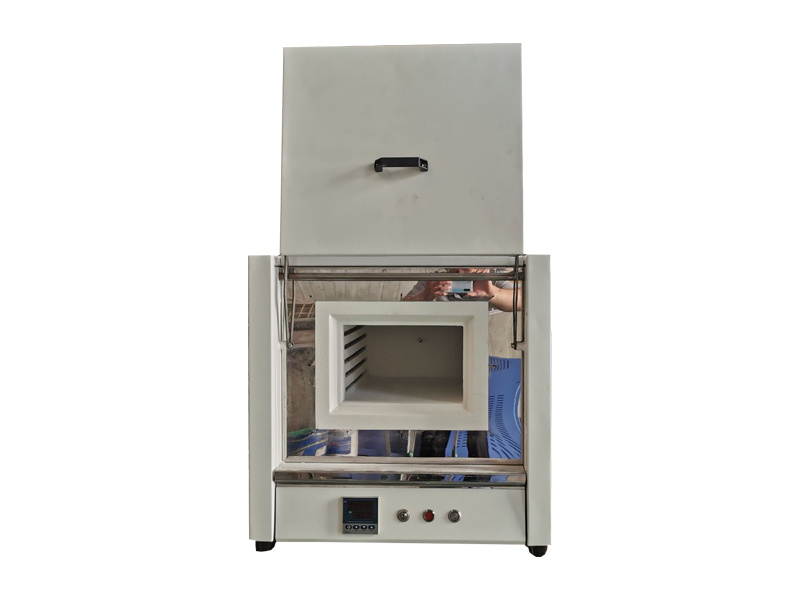

1200°C Laboratory Bench Muffle Chamber Furnace with Lift Door，Chamber.
- Chamber lining uses embedded ceramic fiber. Square chamber,chamber walls tight coupling.
- Heating element uses HRE alloy coil wire, heated on three sides, uniform temperature field,TMax 1200°C.
- Durable N-type thermocouple with long service life.

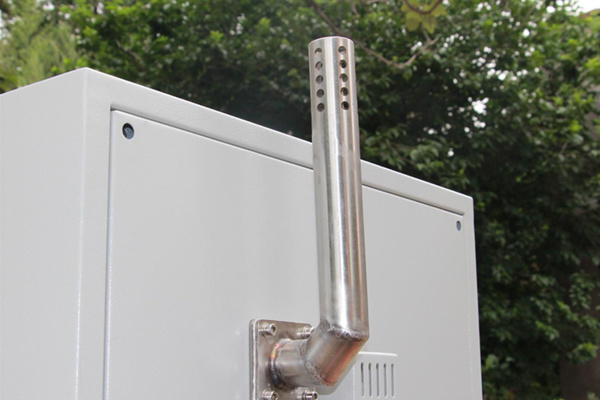

1200°C Laboratory Bench Muffle Chamber Furnace with Lift Door, A stainless steel exhaust chimney.
- A ceramic chimney pipe installed inside the furnace chamber, and a stainless steel exhaust gas/smoke emission chimney is installed at the corresponding position at the rear of the furnace body, sealed with a ceramic plug
- Sample products may generate volatile gas or smoke during the sintering process, it can be piped out from the inside chimney pipe, and the pipe can be connected to the pipeline or installed a exhaust fan to discharge to the outside

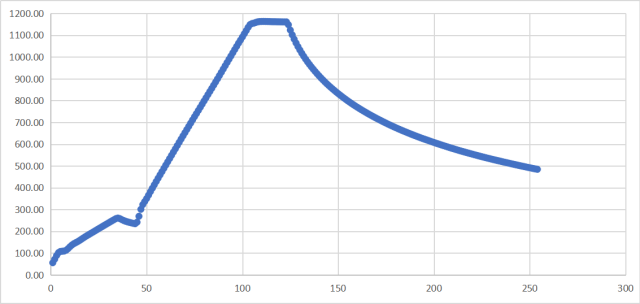

Heating programs for 1200°C Laboratory Bench Muffle Chamber Furnace with Lift Door
- With curve heating function, heating rate 1-20C/min freely adjusted.
- Graphic display of temperature, providing user levels, real time clock, program names and program log. Process data on a USB drive.
- Good thermal insualtion, natural cooling, cooling down gently.
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PM L8/12 Chamber size (DxWxH) D330xW230xH180mm Capacity 7.2L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system Power supply 3 KW AC208-240V 50/60Hz Phase Single phase Working temperature TMax 1200℃(2192°F)
Continuously 1100℃ (2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements HRE alloy coil wire，3 sides heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N
Equip two pcs, dual protectionFurnace shell Carbon steel double housing Chamber material High aluminum 1500# ceramic fiber board Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Shipment information Weight: 90kgs
W610xL810xH910mmCompliance CE,ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Exhaust piping system After-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PM L6/12 PM L12/12 PM L36/12 Inner size(DxWxH) 230x150x180mm 300x200x200mm 400x300x300mm Capacity 6 L 12 L 36 L Power supply 2.5 KW 4 KW 9 KW Furnace dimensions(LxWxH) 460x570x660mm 480x630x710mm 430x870x840mm Weight 55KGS 75 KGS 145 KGS
