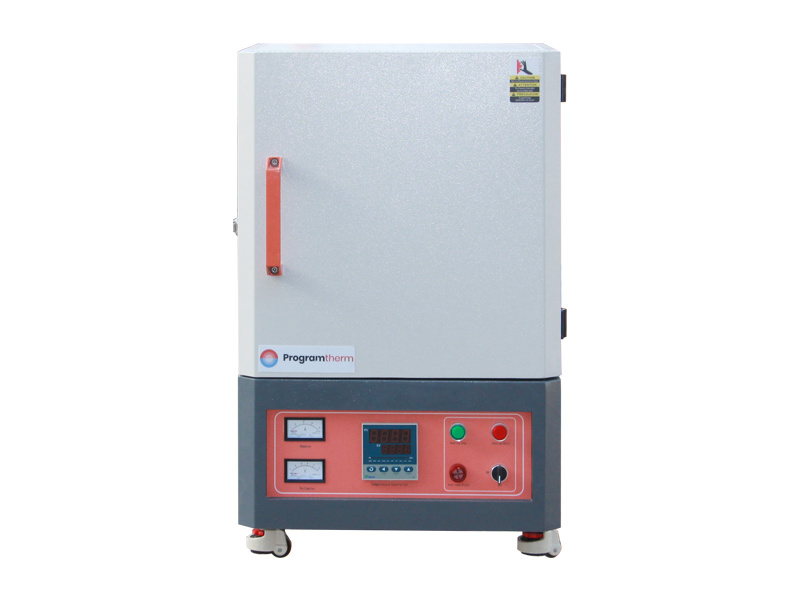

1700°C 12L Laboratory Muffle Furnace
PM L12/17
Classification:
TMax 1700℃.Carbon steel double air-cooled housing.High aluminum 1800# ceramic fiber polycrystalline chamber. U-shape new type MoSi2 rod heated.Smart Yudian PID temperature controller,programmable 30 segments.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1700°C 12L Laboratory Muffle Furnace
- Commodity ID: PM L12/17
- 产品概述: TMax 1700℃.Carbon steel double air-cooled housing.High aluminum 1800# ceramic fiber polycrystalline chamber. U-shape new type MoSi2 rod heated.Smart Yudian PID temperature controller,programmable 30 segments.
<p>Double carbon steel fan cooling shell,low surface temp</p> <p>Mitsubishi ceramic fiber chamber,CNC carved</p> <p>MoSi2 rod heating on both sides,stable resistance,uniform temperature field</p>
Product Overview
PM L12/17 is Laboratory high temperature Muffle Furnace.Carbon steel double air-cooled housing,the surface is environmental friendly electrostatic powder sprayed and baked, good high temperature and corrosion resistance.Chamber lining uses high aluminum 1800# ceramic fiber polycrystalline board,good corrosion resistance.Heating element uses U-shape new type MoSi2 rod,equip 6pcs,uniform temperature field and low energy consumption.Yudian PID temperature controller,programmable 30 segments, high temperature control accuracy.Protection system with Power off, over-temperature, thermocouple breaking and burnout protection. Suitable for a wide range of heat treatment applications and ideal for a petrochemical plant, reaction research, sintering processes and ceramic firing in laboratories and industry.
Product Video
Main Features
- TMax 1700°C
- Carbon steel double air-cooled housing,two-color high-quality epoxy powder electrostatic spraying,surface temperature Rt+45℃
- High aluminum 1800# ceramic fiber polycrystalline board
- U-shape new type MoSi2 rod,uniform temperature field
- Heating rate：0℃-10℃/min adjustable
- Durable Type B Thermocouple
- Smart Yudian PID controller, 30 segments programmable,curve heating and set temperature rate
- Power off, over-temperature, thermocouple breaking and burnout protection
- Siemens electrical components, long service life
- Stable performance, low noise and high safety
- CE certification
Product Details
1700°C Laboratory Muffle Furnace
- PM L12/17 Laboratory Muffle Furnace consists of three parts: furnace body, temperature control system and air cooling system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
- Siemens electrical components, superior quality.
- Export quality, CE certified.

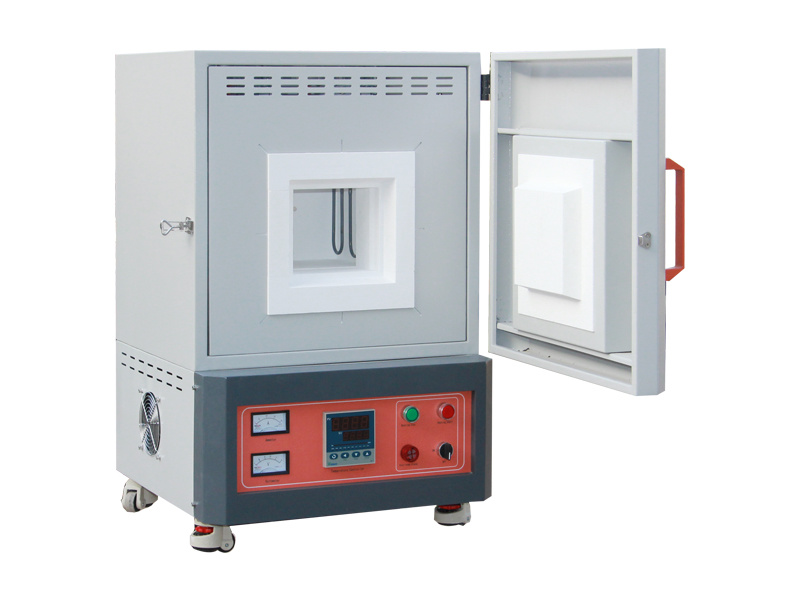

1700°C Laboratory Muffle Furnace，Chamber.
- Chamber lining uses high alumina 1800# ceramic fiber polycrystalline board,CNC carved.Square chamber,chamber walls tight coupling.
- U-shape new type MoSi2 rod,equip 6pcs,both sides heating,uniform temperature field,TMax 1700°C.
- Durable B-type thermocouple,long service life.
1700℃ Laboratory Muffle Furnace，Electrical control panel.
- Yudian PID temperature controller,programmable 30 segments, high temperature control accuracy
- Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface (Optional)
Heating Programs for 1700°C Laboratory Muffle Furnace
- Programmable 30 segments, heating rate 1-10C/min freely adjusted
- Good thermal insualtion, natural cooling, cooling down gently
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PM L12/17 Chamber size (DxWxH) D300xW200xH200mm/12x8x8″ Capacity 12L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system/Air-cooling system Power supply 6KW AC208-240V 50/60Hz Phase Single phase Working temperature TMax 1700℃(3092℉)
Continuously 1600℃(2912℉)Temperature uniformity +/- 5℃ Temperature range Rt-1700℃ Temperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°CHeating elements U-shape MoSi2 rod(6pcs） Heating rate Max：10℃/min
Recommend：1-8℃/minThermocouple type B Furnace shell Carbon steel double air-cooling housing Chamber material High aluminum 1800# ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Shipment information Weight：226kgs
W700xL800xH1070mmCompliance CE,ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/Fire door/High temperature gloves/Crucible tongs/Two additional MoSi2 rod/Manual book Optional accessories Exhaust piping system After-sales 1. Consumables such as heating elements, thermocouple etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PM L8/17 PM L18/17 PM L20/17 PM L36/17 Inner size(DxWxH) 200x200x200mm 300x250x250mm 320x250x250mm 400x300x300mm Capacity 8 L 18 L 20 L 36 L Power supply 5 KW 7 KW 7 KW 13 KW Furnace dimensions(LxWxH) 600x620x920mm 820x670x1000mm 610x730x970mm 1040x840x1250mm Weight 165 KGS 260 KGS 260 KGS 300 KGS
