1200℃ Splitable CVD Rotary Tube Furnace With Quartz Tube
PTR D120/500/10
Classification:
Single zone CVD rotary tube furnace, high-purity polycrystalline alumina fiber chamber with HRE alloy coil wire.Suitable for annealing, diffusion and sintering under vacuum or atmosphere protection.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200℃ Splitable CVD Rotary Tube Furnace With Quartz Tube
- Commodity ID: PTR D120/500/10
- 产品概述: Single zone CVD rotary tube furnace, high-purity polycrystalline alumina fiber chamber with HRE alloy coil wire.Suitable for annealing, diffusion and sintering under vacuum or atmosphere protection.
<p>Rotary system, forward and reverse controllable</p> <p>Single channel gas supplying system</p> <p>Vacuum system,Max vacuum degree 50Pa</p>
Product Overview
PTR D120/500/10 is a Single heating zone, Splitable CVD Rotary tube furnace. Rotating speed 1-10rpm freely adjusted. Double-layer carbon steel shell structure. High-purity polycrystalline alumina fiber chamber. With high purity belly-typed quartz tube and quick opening sealing flange. HRE alloy coil wire heated, uniform temperature field. Digital temperature controller, programmable 32 segments with an accuracy of +/-1C. The gas supplying system is equipped with a single-channel gas supply unit. The vacuum system is equipped with vacuum pumps, pipes and valves. It's an ideal furnace for heat treatments on varies powder or granular materials such as ceramics, carbon powder, graphene, quartz sand and other new materials for annealing, diffusion and sintering under vacuum or atmosphere protection.
Product Video
Main Features
- Tmax 1200℃
- Single heating zone, splitable, CVD, rotary tube furnace
- Three symitrical stirring blades are welded inside the furnace tube to stir the materials
- High purity belly-typed quartz tube with 304 stainless steel quick-opening flanges
- Split furnace chamber for fast and easy tube access
- Rotating speed 1-10rpm/min adjustable
- Equip vacuum pumps, pipes and valves. Tmax vacuum level 50Pa
- Single channel gas supply unit, float flow meter with adjustable flow rate
- High-purity polycrystalline alumina fiber chamber with HRE heating wires ensure uniform temperature
- N type thermocouple
- Intelligent PID temperature controller with programmable 32 segments
- CE certified
Product Details

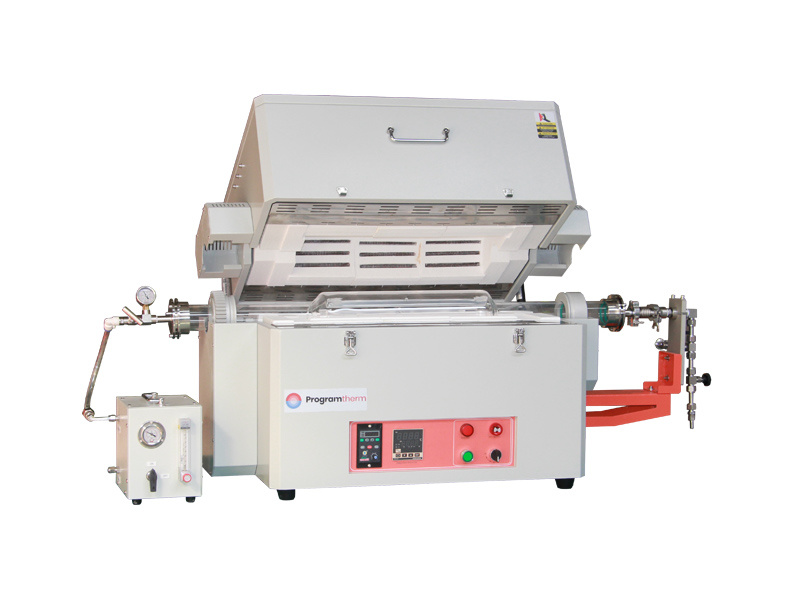

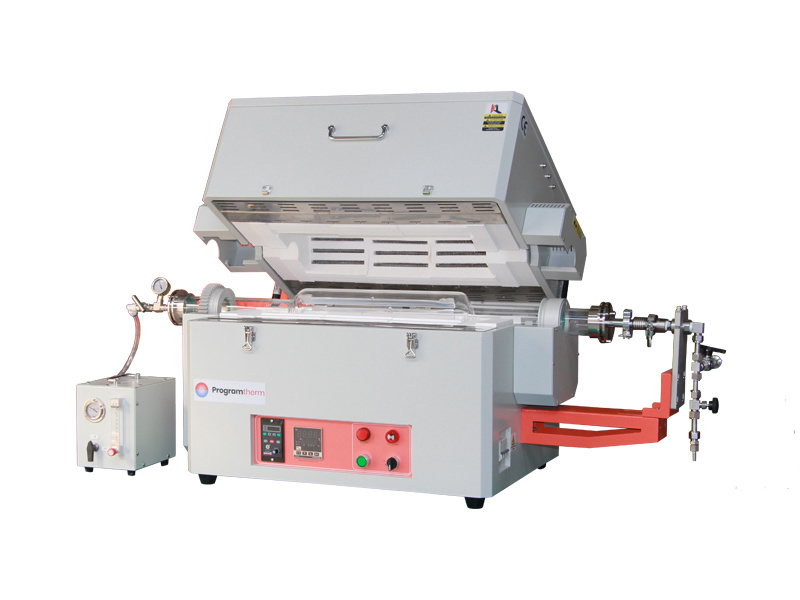

1200℃ Splitable CVD Rotary Tube Furnace With Quartz Tube
- The 1200°C Splitable CVD Rotary Tube Furnace is mainly composed of five parts: furnace body, gas supplying system, vacuum supplying system, rotating system and temperature control system
- The furnace outer steel shell is processed with pickling and phosphating, environment powder coating on the surface, corrosion and oxidation resistance, built-in cooling fan, surface temperature Rt+45℃
- Exquisite appearance, ISO, CE compliance

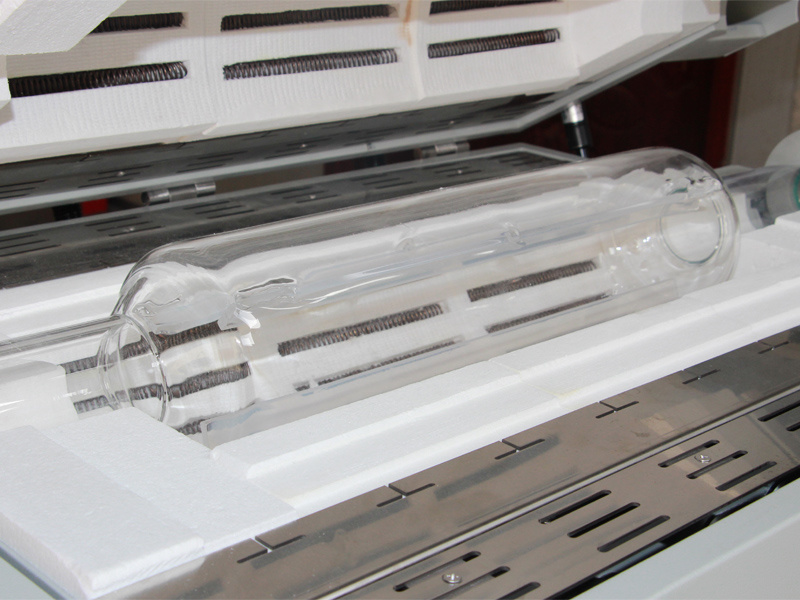

1200°C Splitable CVD Rotary Tube Furnace With Quartz Tube,Chamber
- The chamber is made of high-purity polycrystalline alumina fiber, vacuum filtering, one-piece moulding, tight coupling, minimize energy loss greatly
- Embedded HRE alloy resistance wire, surround convection heating, uniform temperature field
- The total length of the furnace heating zone is 500mm. The furnace tube is belly-typed, with a diameter of 120mm in the heating zone and 60mm in the non-heating zone
- Both ends of the processing tube are equipped with 304 stainless steel quick-opening flanges and swivel joints
- Rotary system, forward and reverse controllable, speed 1-10RPM adjustable. (The value 1400 on the converter control panel corresponds to 10RPM)
- Three symitrical stirring blades are welded inside the processing tube to stir the material, uniform temperature field
- N type thermocouple, long service life
1200℃ Splitable CVD Rotary Tube Furnace,Individual set of gas supplying device
- The 1200C-1700C laboratory tube furnaces are all equipped with a single-channel gas supply device
- Reserved inlet and outlet ports, pressure gauge, float flow meter with adjustable flow rate
- Available gases: N2, Ar, H2, CO etc
Note: When filling reducing gas, check valves, one-way valves, exhaust gas treatment systems, etc. need to be configured
1200℃ Splitable CVD Rotary Tube Furnace, Vacuum system
- Equip vacuum pump, pipeline and valve
- Adopts famous brand pump model VRD-8 with oil mist filter, pumping speed 2L/S, maximum vacuum degree can reach 50Pa

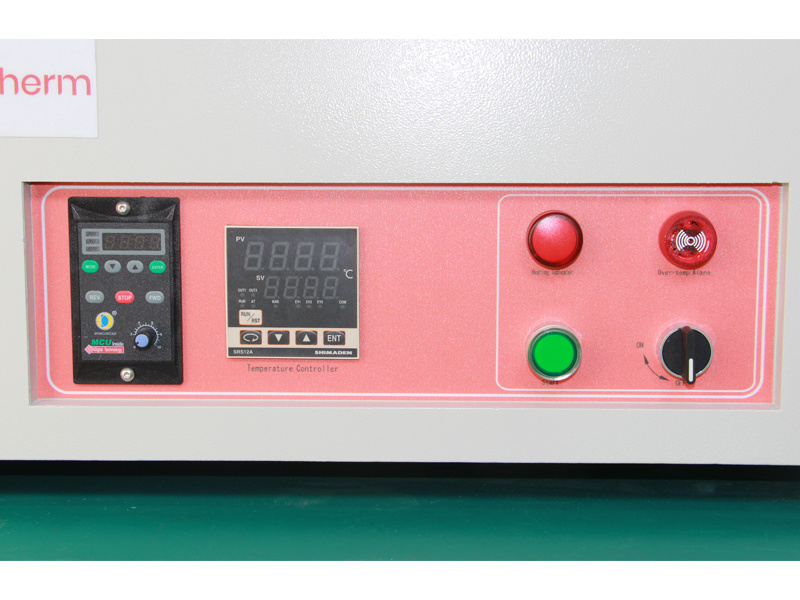

Control panel for 1200℃ Splitable CVD Rotary Tube Furnace
- Temperature control and furnace body integrated design, electrical and temperature control system is installed in the lower part of the furnace body, integrated in the control panel
- Intelligent PID temperature controller with 32-segment programs, accuracy of ±1°C
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface (Optional)
-
Detail Technical Specifications
Model No. PTR D120/500/10 Structure Dual steel shell, furnace chamber, quartz tube, tube supports, rotary system, gas supplying system, vacuum system, temperature controlling system etc Heating length 500mm Temp. uniformity 300mm Tube size OD120mm Tube material High purity belly-typed quartz tube build with 3 symitrical stirring blades Power supply 7KW
AC415V
50/60HzPhase Three Working temperature Tmax 1200℃
Continuous working temperature 1100℃Sealing flange SS304 quick-opening sealing flanges Atmosphere performance Available gases: Ar N2 H2 etc Vacuum performance Max vacuum level could reach to 50Pa Gas supplying system Equips an individual set of single channel gas supplying device with gas inlet&outlet;
Gas flowing rate adjustableRotary system Material heated evenly
Forward and reverse controllable, rotary speed：1-10rmp/minTemperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements Embedded alloy coil wire, surround convection heating, uniform temperature field Heating rate Max heating rate：20℃/min ; recommended heating rate:15℃/min Furnace shell Carbon steel double shell Thermocouple type N Chamber material High-purity polycrystalline alumina fiber Electric components Schneider maker air switch, AC contactor, SSR Relay etc Safety measures Over heating, thermocouple breaking alarm and protection Compliance CE, ISO Warranty 18 months quality warranty with lifetime technical support (excluded consumable parts such as quartz tube, thermocouple etc) Standard packing list Tube furnace; processing tube, sealing flanges, gas tube, furnace hook, thermal gloves, manual book etc Shipment information Weight:218kgs; W910xL1310xH965mm
Optional accessories Vacuum pump unit; MFC system Warning 1. The processing tube pressure should be lower 0.02MPa
2. Gas source should equip the pressure reducing valve
3. Before filling reduction gases like H2, should pump the air out of the tubeSimilar model comparison
Model No. PTR D40/12 PTR D80/12 PTR D120/12 Heating length 300mm 300mm 600mm Tube size OD40xL1000mm OD80xL1000mm OD120xL1200mm Power supply 1.8 KW 2.8 KW 5.0 KW Weight 60 KGS 75 KGS 145 KGS -
