1000C Vertical High Pressure Splitable Tube Furnace
PTV D168/300/10
Classification:
Vertical high temperature and high pressure splitable single zone tube furnace with stainless steel tube. Suitable for low carbon and hydrogen related experiments at high temperature and high pressure.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1000C Vertical High Pressure Splitable Tube Furnace
- Commodity ID: PTV D168/300/10
- 产品概述: Vertical high temperature and high pressure splitable single zone tube furnace with stainless steel tube. Suitable for low carbon and hydrogen related experiments at high temperature and high pressure.
<p>High pressure furnace,pressure resistance over 5bar</p> <p>Furnace tube can be lifted manually,range 200mm</p> <p>For low carbon and hydrogen related experiments</p>
Product Overview
PTV D168/300/10 is a customized Vertical high temperature and high pressure splitable single zone tube furnace with stainless steel tube, which can be manually lifted. Total Heating length 300mm. Dual carbon steel with fan-cooling housing, low surface temperature. The heating chamber is made of ceramic fiber material, composed of two symmetrical semi-circles. Embedded HRE alloy coil wire heated, max working temperature up to 1000℃. The processing tube is made of 310S stainless steel seamless tube, temperature resistance up to 1000°C; pressure resistance over 5bar. Gas supplying system is equipped with multi-channel gas valves. Intelligent PID temperature controller, programmable 32 segments. This customized tube furnaceis mainly suitable for low carbon and hydrogen related experiments at high temperature and high pressure.
Product Video
Main Features
- Tmax 1000°C
- Dual carbon steel with fan-cooling housing, reduce surface temperature
- Ceramic fiber material chamber, composed of two symmetrical semi-circles
- 310S stainless steel seamless tube, temperature resistance up to 1000°C; pressure resistance over 5bar
- The furnace tube can be lifted manually, with a range of 200mm
- Embedded HRE alloy coil wire heated, surround convection heating, uniform temperature field
- Equip multi-channel gas valves
- Digital PID programmable 32 segments with accuracy of +/-1C
- N type thermocouple
- CE Standard
Product Details
1000C Vertical High Pressure Splitable Tube Furnace
- The Vertical High Pressure Splitable Tube Furnace is mainly consists of five parts:furnace body, processing tube, gas supplying system, mechanical lifting system and independent temperature control system
- The furnace outer steel shell is processed with pickling and phosphating, environment powder coating on the surface, corrosion and oxidation resistance, built-in cooling fan, surface temperature Rt+45℃
- Exquisite appearance, ISO, CE compliance
1000C Vertical High Pressure Splitable Tube Furnace Chamber

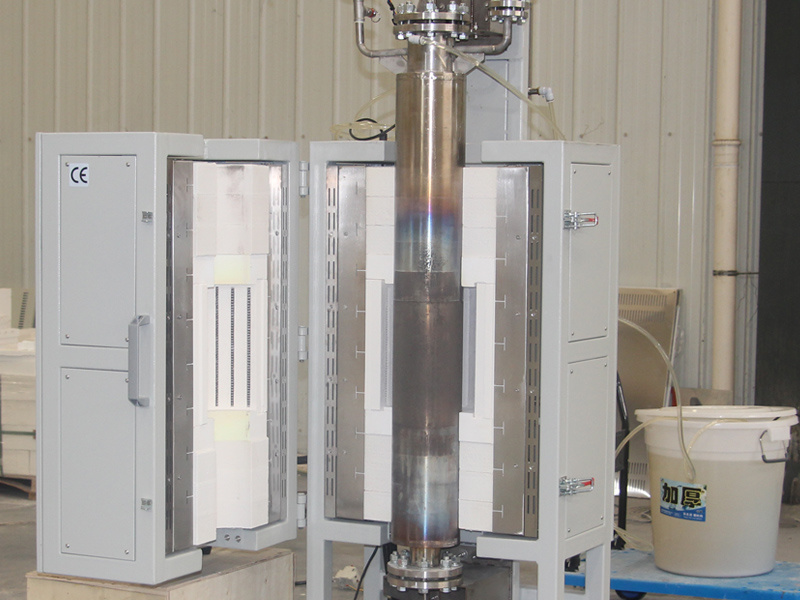

- Chamber lining uses ceramic fiber material, composed of two symmetrical semi-circles, vacuum-filtered and tight coupling.
- Heating element uses embedded HRE alloy coil wire, surround convection heating, uniform temperature field,TMax 1000°C.
- 310S stainless steel seamless tube, temperature resistance up to 1000°C; pressure resistance over 5bar.

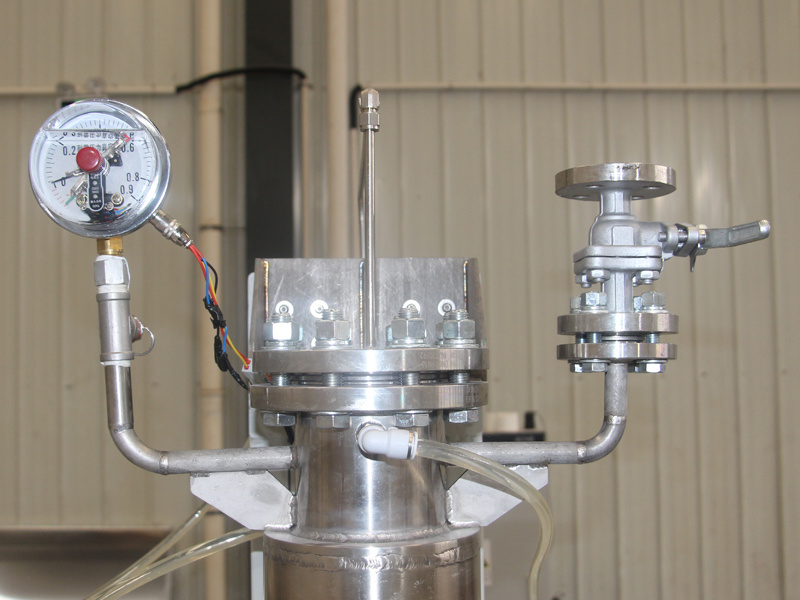

- Both ends of the furnace tube are equipped with blind plate; Water-cooled flange at the top, manometer and T-vacuum valve, etc.
- The furnace tube can be lifted manually with a range of 200mm.
- Durable N-type thermocouple with long service life.
1000C Vertical High Pressure Splitable Tube Furnace, Gas supplying system
- Equipped with multi-channel gas valves
- The gas pipe on the top flange can be induced to the flue, the gas flow rate is controlled by a needle valve precisely
- A solenoid valve is installed at the gas inlet to control underpressure and overpressure cut-off of the electric contact pressure gauge
- A safety valve and a hydrogen detector are installed at the gas outlet for safety measures
1000C Vertical High Pressure Splitable Tube Furnace, Temperature control system

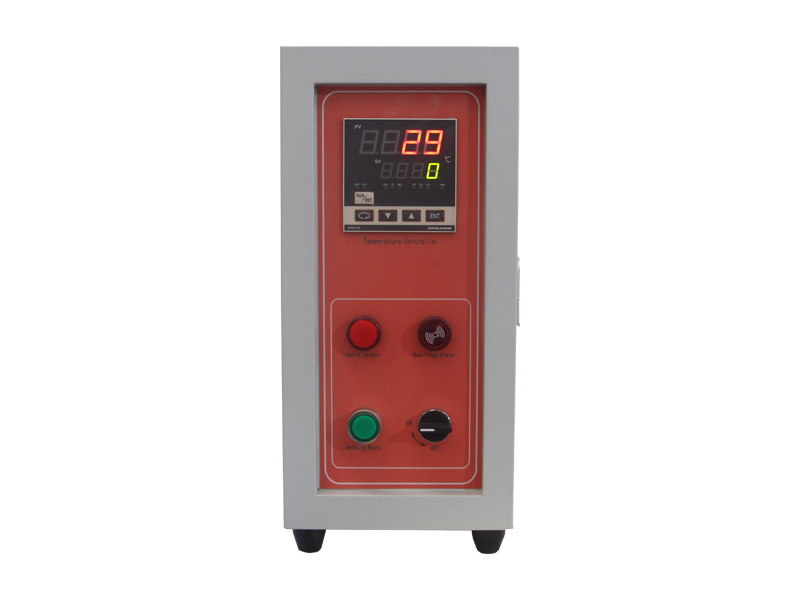

- Temperature control and furnace body separate design. The electrical and temperature controls are integrated in the cabinet panel, includes temperature controllers, ammeter, switch buttons etc.
- Intelligent PID temperature controller with 32-segment programs, accuracy of ±1°C
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface (Optional)
-
Detail Technical Specifications
Model No. PTV D168/300/10 Structure Dual steel shell, insualtion chamber, gas supplying system, mechanical lifting system and independent temperature control system Heating length 300mm, Single zone Temp. uniformity ±5°C Tube size OD168mm Tube material 310S stainless steel seamless tube Power supply 4KW AC230V/1Ph 50Hz
Working temperature Tmax 1000℃; continuous 900℃
Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements Embedded HRE alloy coil wire, surround convection heating Heating rate ≤20°C / min Thermocouple type N Furnace shell Dual carbon steel with fan-cooling shell Chamber material Vacuum filtered ceramic fiber material Electric components Schneider maker air switch, AC contactor, SSR Relay etc Safety measures Over heating, thermocouple breaking alarm and protection Compliance CE, ISO Warranty 18 months quality warranty with lifetime technical support (excluded consumable parts such as furnace tube, thermocouple etc) Standard packing list Tube furnace, thermal gloves Shipment information Shipping weight：460kgs
Packing size：W1010xL1160xH2160mmOptional accessories Vacuum pump unit; MFC system Warnings 1. Furnace tube pressure should be lower 0.02MPa
2. Gas source should equip the pressure reducing valve
3. Before filling reduction gases like H2, should pump the air out of the tube
4. When filling gases from gas inlet in the tube, should make sure the gas outlet valve openSimilar model comparison
Model No. PTV D25/200/14 PTV D60/300/14 PTV D100/300/14 Heating length 200mm 300mm 300mm Tube size OD25xL700mm OD60xL1000mm OD100xL800mm Power 1.5 KW 2.8 KW 3.0 KW Furnace overall size(LxWxH) 830x450x1620mm 850x470x1620mm 870x490x1620mm Net weight 60 KGS 95 KGS 102 KGS
