1400℃ High Vacuum Heat Treatment Furnace PV L96/14
PV L96/14
Classification:
TMax 1400°C,Dual stainless steel sealed water-cooled shell,composite alumina chamber,SIC rod heated,Shimaden PID controller,programmable 32 segments.The furnace vacuum level could reach to 0.1Pa within 15 minutes.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1400℃ High Vacuum Heat Treatment Furnace PV L96/14
- Commodity ID: PV L96/14
- 产品概述: TMax 1400°C,Dual stainless steel sealed water-cooled shell,composite alumina chamber,SIC rod heated,Shimaden PID controller,programmable 32 segments.The furnace vacuum level could reach to 0.1Pa within 15 minutes.
<p>Single float flow system, 1-10L/min freely adjustable</p> <p>Suitable for a variety of atmosphere nitrogen or argon</p> <p>An imported Roots vacuum pump and a set of PLC control program</p>
Product Overview
PV L96/14 is a specially customized vacuum furnace,chamber capacity is 96L. Dual-layer stainless steel sealed water-cooled furnace shell. Composite alumina chamber. Heating element uses SIC rod, easy to be replaced, heated on both sides. Shimaden PID controller,programmable 32 segments, high temperature control accuracy. Gas supplying system equipped with a single float flow system, suitable for a variety of atmospheres such as nitrogen or argon. The vacuum system is equipped with an imported Roots vacuum pump and a set of PLC control programm. In empty loading, the furnace vacuum level could be reach to 0.1Pa within 15 minutes. In addition, the furnace model can be used to monitor time, temperature and vacuum via Modbus RTU RS-485, connecting to the customer's existing control system and realistically integrating remote control. Vacuum furnaces provide the perfect heat treatment environment for a variety of procedures in many laboratories, providing the controlled temperature and atmosphere required for specific projects. Mainly used for sintering or annealing of materials under vacuum or strong acid environment.
Product Video
Main Features
- TMax 1400°C
- Dual stainless steel sealed water-cooled shell, double door design with PTFE rings ensure a perfect sealing performance
- Composite alumina chamber, adapt to the strong acid and alkali environment
- Equipped with a single float flow system, 1-10L/min freely adjustable
- The vacuum system is equipped with an imported Roots vacuum pump and a set of PLC control program
- In empty loading, the furnace vacuum level could reach to 0.1Pa within 15 minutes
- Suitable for a variety of atmospheres such as nitrogen or argon
- SIC rod heated, both sids heating, easy to be replaced, uniform temperature field
- Type S Thermocouple,long service life
- Smart 32-segment programmable automatic temperature control,high temperature control accuracy
- The furnace can be used to monitor time, temperature and vacuum via Modbus RTU RS-485, connecting to the customer's existing control system and realistically integrating remote control
- Power off, over-temperature, thermocouple breaking and burnout protection
- Good performance and energy saving effect
- CE certification
Product Details

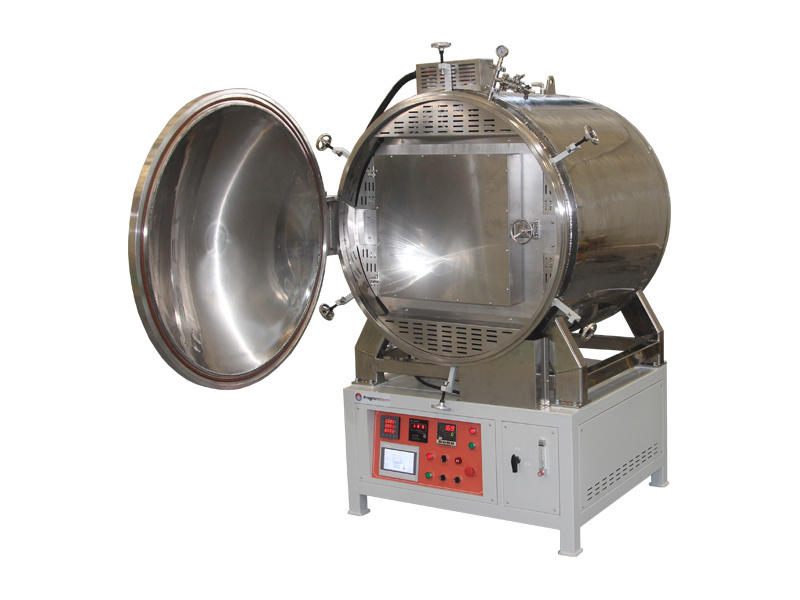

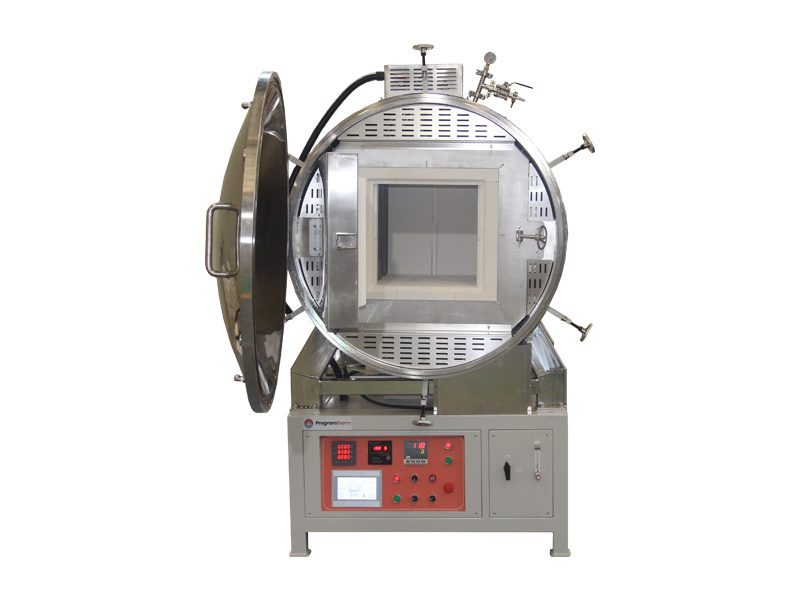

1400℃ High Vacuum Heat Treatment Furnace
- PV L96/14 High Vacuum Heat Treatment Furnace consists of five parts: furnace body,gas supplying system,vacuum system,water-cooling circulation system and temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.Furnace surface water cooling circulation,the surface temperature Rt+45℃.
- Siemens electrical components, long service life.
- Export quality, ISO,CE certified.

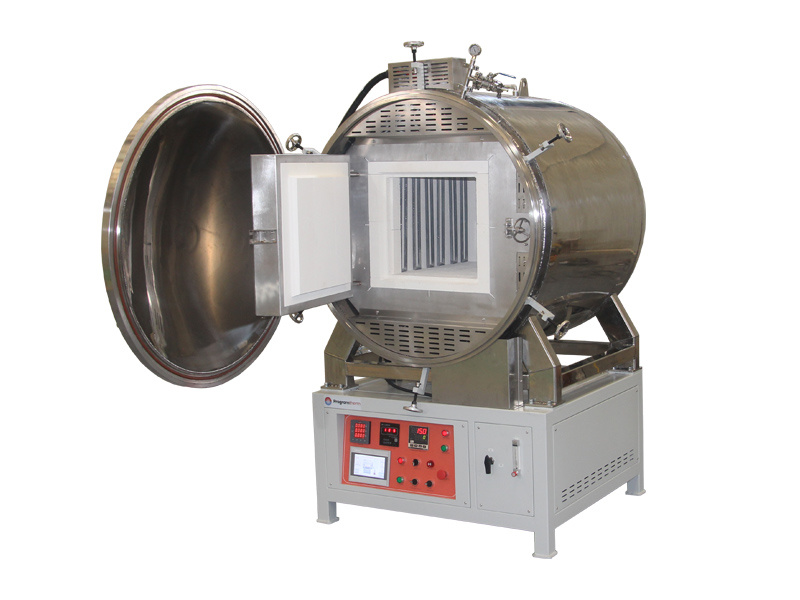

1400℃ High Vacuum Heat Treatment Furnace,Chamber
- Chamber lining uses composite alumina materials,CNC carved.Square chamber,chamber walls tight coupling.
- SIC rod heating,both sides heating,easy to be replaced,uniform temperature field,TMax 1400°C.（In air）
- S-type thermocouple,long service life

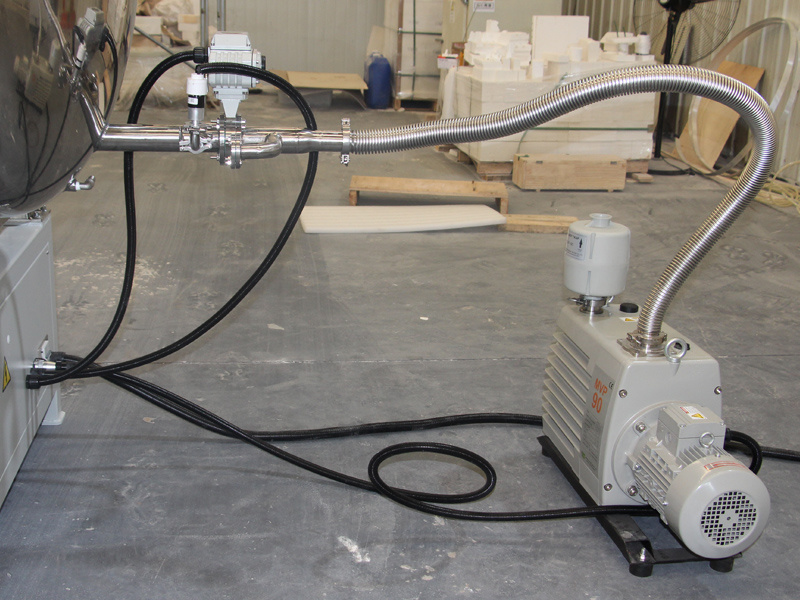

1400℃ High Vacuum Heat Treatment Furnace,Vacuum system
- The vacuum system is equipped with an imported Roots vacuum pump and a set of PLC control program
- Using proportional adjustment valve, vacuum obtaining can be achieved automatically/manually switch
- In empty loading, the furnace vacuum level could be reach to 0.1Pa within 15 minutes
1400℃ High Vacuum Heat Treatment Furnace,Temperature control system
- Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
- Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes.
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function。
- With 485 communication interface (Optional)
- In addition, the furnace model can be used to monitor time, temperature and vacuum via Modbus RTU RS-485, connecting to the customer's existing control system and realistically integrating remote control.
-
Detail Technical Specifications
Model No. PV L96/14 Chamber size (DxWxH) D600xW400xH400mm /24x16x16″ Capacity 96L Structure Outer shell/Insulation chamber/Furnace door(double design)/Gas supplying system/Vacuum system/Water-cooling system/Temperature control system Power supply 24KW AC380V 50/60Hz Phase 3 phases Working temperature TMax 1400℃(2552℉)（In air）
Continuously 1300℃(2372℉)Temperature uniformity +/-5℃ Temperature range Rt-1400℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements SIC rod
Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type S Furnace shell Dual-layer stainless steel sealed water-cooled shell Chamber material Composite alumina material,CNC carved,high temperature resistance,adapt to the strong acid and alkali environment Electric components Schneider or Siemens maker air switch,AC contactor,Solid state relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Atmosphere performance Suitable for a variety of atmospheres such as nitrogen or argon Vacuum performance In empty loading, the furnace vacuum level could reach to 0.1Pa within 15 minutes Gas supplying system Single float flow system
1-10L/min freely adjustableCompliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/Gas system/High temperature gloves/Crucible tongs/Manual book Optional accessories Vacuum pump/Mass flow mixing system/Gas Detection System/Chiller Shipment information Weight: 1300 kgs
W1820xL1330xH2110mmAfter-sales 1. Consumables such as heating elements, thermocouple etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Please don't inject toxic or explosive gases without necessary safety controls and supervision measures.
2. Before introducing reducing or flammable and explosive gases, please replace furnace gas. Nitrogen can be used as the replacement gas.
3. Small cracks may appear on the surface over extended use. Normal,repaire with aluminum oxide coating,hose barb connection.Similar model comparison
Model.No PV L3/17 PV L8/17 PV L12/17 PV L36/17 Inner size(DxWxH) 150x150x150mm 200x200x200mm 300x200x200mm 400x300x300mm Capacity 3 L 8 L 12 L 36 L Power supply 4 KW 6 KW 6 KW 13 KW Furnace dimensions(LxWxH) 1060x760x1610mm 1060x760x1610mm 1100x810x1660mm 1100x920x1750mm Weight 390 KGS 450 KGS 536 KGS 660 KGS -
