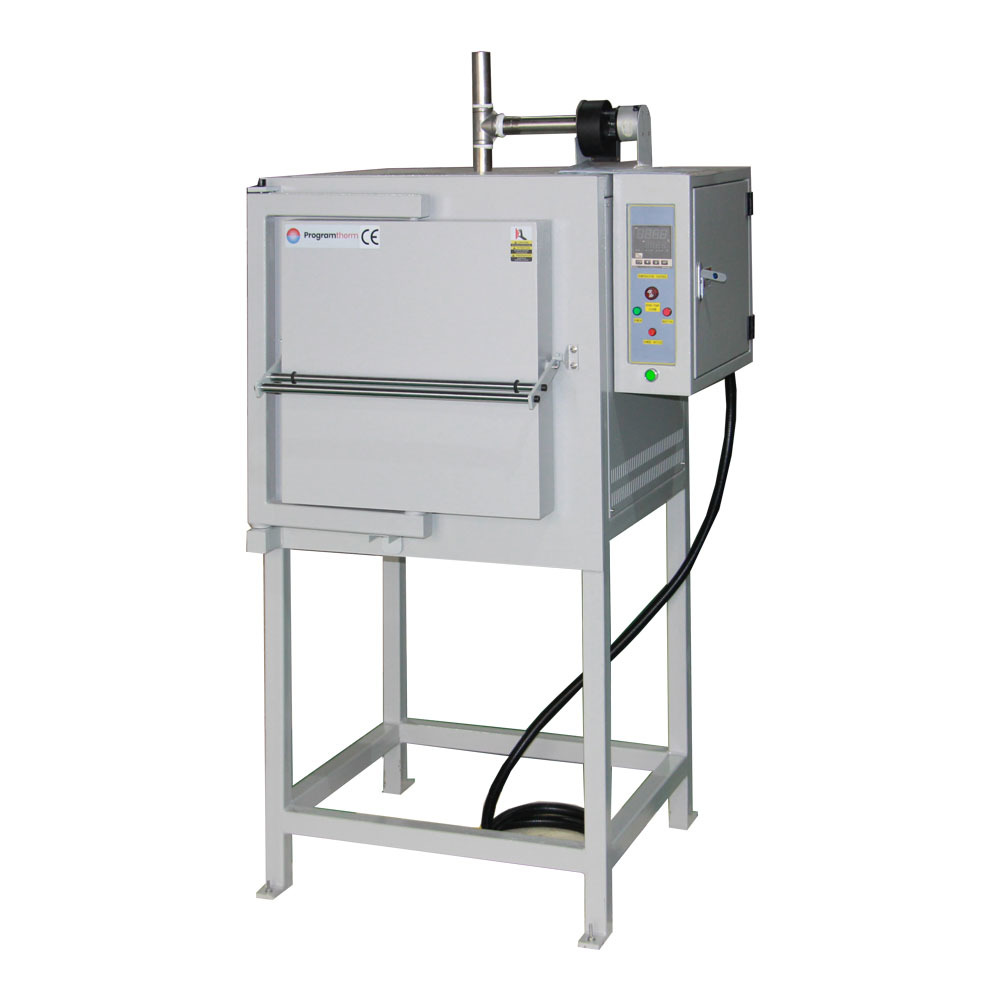

600℃ Hot Air Circulating Furnace for Debinding, Degreasing and Dewaxing
PD L96/6
Classification:
TMax 600°C. High-quality cold-rolled steel plate housing.Alloy heat-resistant plate chamber. Radiant tube heated. Smart PID temperature controller,32 segments programmable.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 600℃ Hot Air Circulating Furnace for Debinding, Degreasing and Dewaxing
- Commodity ID: PD L96/6
- 产品概述: TMax 600°C. High-quality cold-rolled steel plate housing.Alloy heat-resistant plate chamber. Radiant tube heated. Smart PID temperature controller,32 segments programmable.
<p>High-quality cold-rolled steel plate shell</p> <p>Alloy heat-resistant plate chamber</p> <p>Degreasing explosion-proof system, over-temperature alarm and power-off</p>
Product Overview
PD L96/6 is an efficient heat treatment furnace for high temperature debinding, degreasing and dewaxing processes. High-quality cold-rolled steel plate (SPCC) furnace body, welded molding, the surface of high-temperature plastic spraying treatment, excellent corrosion resistance and mechanical strength, simple and durable appearance, long-term use without deformation. Furnace chamber and material tray are made of alloy heat-resistant plate, significantly improves the heat insulation performance, high thermal efficiency and low energy consumption, good temperature and corrosion resistance. Radiant tube heated, with forced hot air circulation system, ensure the temperature uniformity of the furnace (± 3 ℃ or less), rapid and stable warming, suitable for long time continuous operation. Intelligent multi-stage program temperature controller, supporting PID self-tuning, SSR solid state relay non-contact output, temperature control accuracy of ±1℃.Built-in N-type thermocouple multi-point monitoring, equipped with over-temperature alarm, power-off and data logging. This debinding furnace is suitable for debinding process of precision ceramics with various molding methods, mainly used for debinding of ceramic blanks, degreasing of metal powders, and wax removal from encapsulation of electronic components, etc., which is an ideal choice in the field of heat treatment of precision materials.
Main Features
- TMax 600℃
- High-quality cold-rolled steel plate shell, excellent corrosion resistance and mechanical strength
- Furnace door adopts double-layer convex-concave sealing structure, reliable sealing, no heat leakage
- Furnace chamber is made of alloy heat-resistant plate, good high temperature and corrosion resistance
- Radiant tube heated, rapid and stable warming, suitable for long time continuous operation
- Heating rate: 0℃-20℃/min adjustable
- N-type thermocouple, 6 thermocouple layout monitoring, 1 control temperature 5 temperature measurement, temperature recorder online display, recording
- Smart programmable PID controller, temperature control accuracy ±1℃
- Degreasing explosion-proof system, over-temperature alarm and power-off
- Siemens electrical components, long service life
- Compact structure, precise temperature control, energy saving and high efficiency, suitable for laboratory research and development and small batch production scenarios
- CE certification
Product Details
Hot Air Circulating Furnace for Debinding, Degreasing and Dewaxing
- PD L96/6 Debinding Furnace consists of two parts: furnace body, temperature control system.
- High-quality cold-rolled steel plate shell, excellent corrosion resistance and mechanical strength
- Furnace door adopts double-layer convex-concave sealing structure, reliable sealing, no heat leakage
- Siemens electrical components, long service life
- Export quality, CE certified.
-
Detail Technical Specifications
Model No. PD L96/6 Chamber size (DxWxH) D600xW400xH400mm /24x16x16″ Capacity 96L Structure Outer shell/Insulation chamber/Hot air circulation system/Temperature control system Power supply 18KW AC380-415V 50/60Hz Phase 3 phases Working temperature TMax 600℃(1112°F)
Continuously 500℃(932°F)Temperature uniformity +/- 5℃ Temperature range Rt-600℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements Radiant tube Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N Furnace shell High-quality cold-rolled steel plate Chamber material Alloy heat-resistant plate Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Degreasing explosion-proof system, over-temperature alarm and power-off Shipment information Weight：655 kgs
W1310xL1380xH1410mmCompliance CE,ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Manual book Optional accessories Exhaust gas treatment secondary purification device After-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures. -
