1700℃ Single heating zone CVD Rotary High temperature Vacuum tube furnace
PTR D80/200/17
Classification:
CVD rotary vacuum tube furnace, high-purity polycrystalline alumina fiber chamber, new type Mosi2 rods heated.Suitable for heat treatments on varies powder or granular materials.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1700℃ Single heating zone CVD Rotary High temperature Vacuum tube furnace
- Commodity ID: PTR D80/200/17
- 产品概述: CVD rotary vacuum tube furnace, high-purity polycrystalline alumina fiber chamber, new type Mosi2 rods heated.Suitable for heat treatments on varies powder or granular materials.
<p>Rotary system, forward and reverse controllable</p> <p>Single channel gas supplying system</p> <p>Vacuum system,max vacuum degree 10Pa</p>
Product Overview
PTR D80/200/17 is a Single heating zone, CVD Rotary High temperature Vacuum tube furnace. Rotating speed 1-10rpm freely adjusted. Double-layer steel shell structure. High-purity polycrystalline alumina fiber raw material chamber, CNC carved. With High purity corundum tube. Equipped with SS304 quick-opening water-cooling flanges and swivel joints. New type MoSi2 rods heated, uniform temperature field. Digital temperature controller, programmable 30 segments with an accuracy of +/-1C. The gas supplying system is equipped with a single-channel gas supply unit. The vacuum system is equipped with vacuum pumps, pipes and valves, pumping speed 4L/S, max vacuum degree can reach 10Pa. It is an ideal furnace for heat treatments on varies powder or granular materials such as ceramics, carbon powder, graphene, quartz and other new materials for annealing, diffusion and sintering under vacuum or atmosphere protection.
Product Video
Main Features
- Tmax 1700℃
- Single heating zone, CVD, rotary, high temperature vacuum tube furnace
- High-purity polycrystalline alumina fiber chamber, chamber walls tight coupling
- New type Mosi2 rods heated, both sides heating, uniform temperature field
- Forward and reverse controllable, Rotating speed 1-10rpm/min adjustable
- Equip vacuum pumps, pipes and valves. Tmax vacuum level 50Pa
- Single channel gas supply unit, float flow meter with adjustable flow rate
- Intelligent PID temperature controller with programmable 30 segments
- B type thermocouple
- Over heating, thermocouple breaking alarm and protection
- CE certified
Product Details
1700℃ Single heating zone CVD Rotary High temperature Vacuum tube furnace

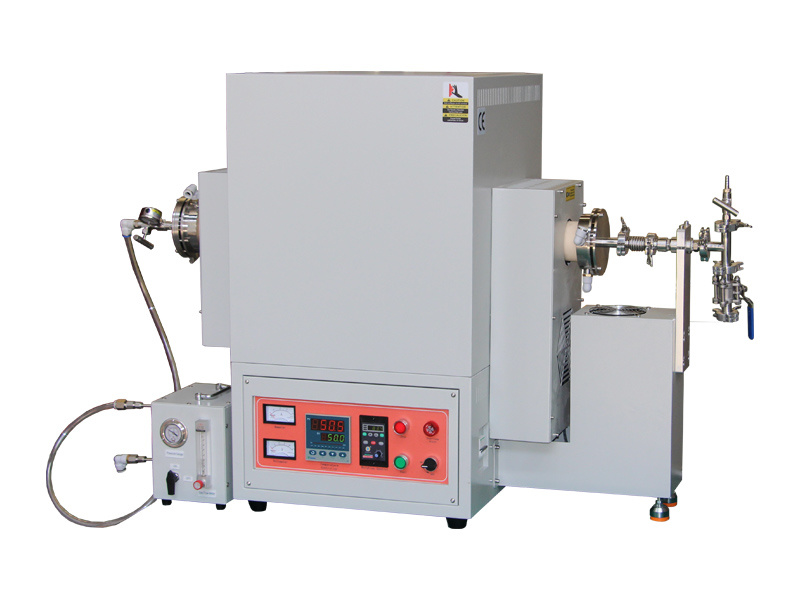

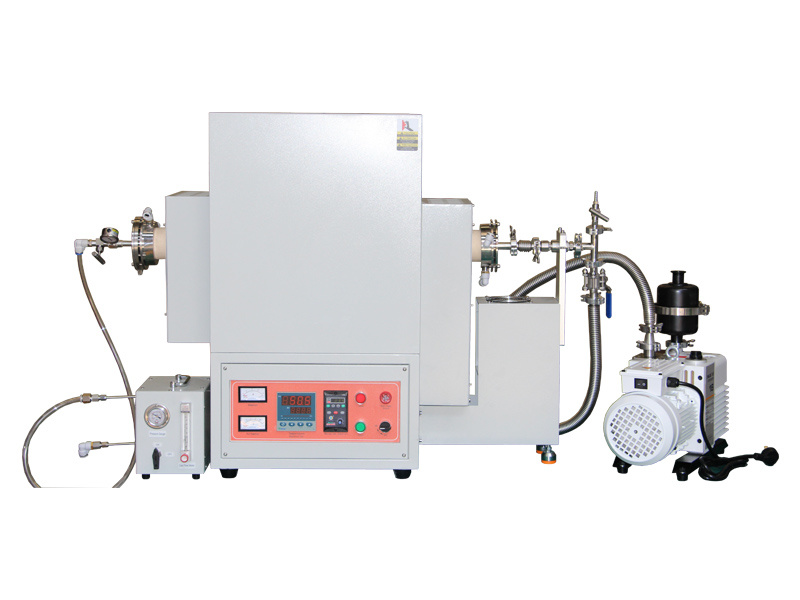

- 1700°C Single heating zone CVD Rotary High temperature Vacuum tube furnace is mainly composed of five parts: furnace body, gas supplying system, vacuum supplying system, rotating system and temperature control system
- The furnace outer steel shell is processed with pickling and phosphating, environment powder coating on the surface, corrosion and oxidation resistance, built-in cooling fan, surface temperature Rt+45℃
- Exquisite appearance, ISO, CE compliance
1700℃ Single heating zone CVD Rotary High temperature Vacuum tube furnace,Chamber
- The chamber is made of high-purity polycrystalline alumina fiber, CNC carved, tight coupling, minimize energy loss greatly
- Three layers of thermal insulation, minimize heat loss
- New type MoSi2 rods heated, both sides heating, uniform temperature field, TMax 1700°C
- The total length of the furnace heating zone is 200mm. The furnace tube adopts high purity corundum tube. Diameter of heating tube is 80mm.
- Both ends of the processing tube are equipped with 304 stainless steel quick-opening water-cooling flanges and swivel joints
- Rotary system, forward and reverse controllable, speed 1-10RPM adjustable. (The value 1400 on the converter control panel corresponds to 10RPM)
- B type thermocouple, long service life
1700℃ Single heating zone CVD Rotary High temperature Vacuum tube furnace,Individual set of gas supplying device
- The 1200C-1700C laboratory tube furnaces are all equipped with a single-channel gas supply device
- Reserved inlet and outlet ports, pressure gauge, float flow meter with adjustable flow rate
- Available gases: N2, Ar, H2, CO etc
Note: When filling reducing gas, check valves, one-way valves, exhaust gas treatment systems, etc. need to be configured
1700℃ Single heating zone CVD Rotary High temperature Vacuum tube furnace, Vacuum system

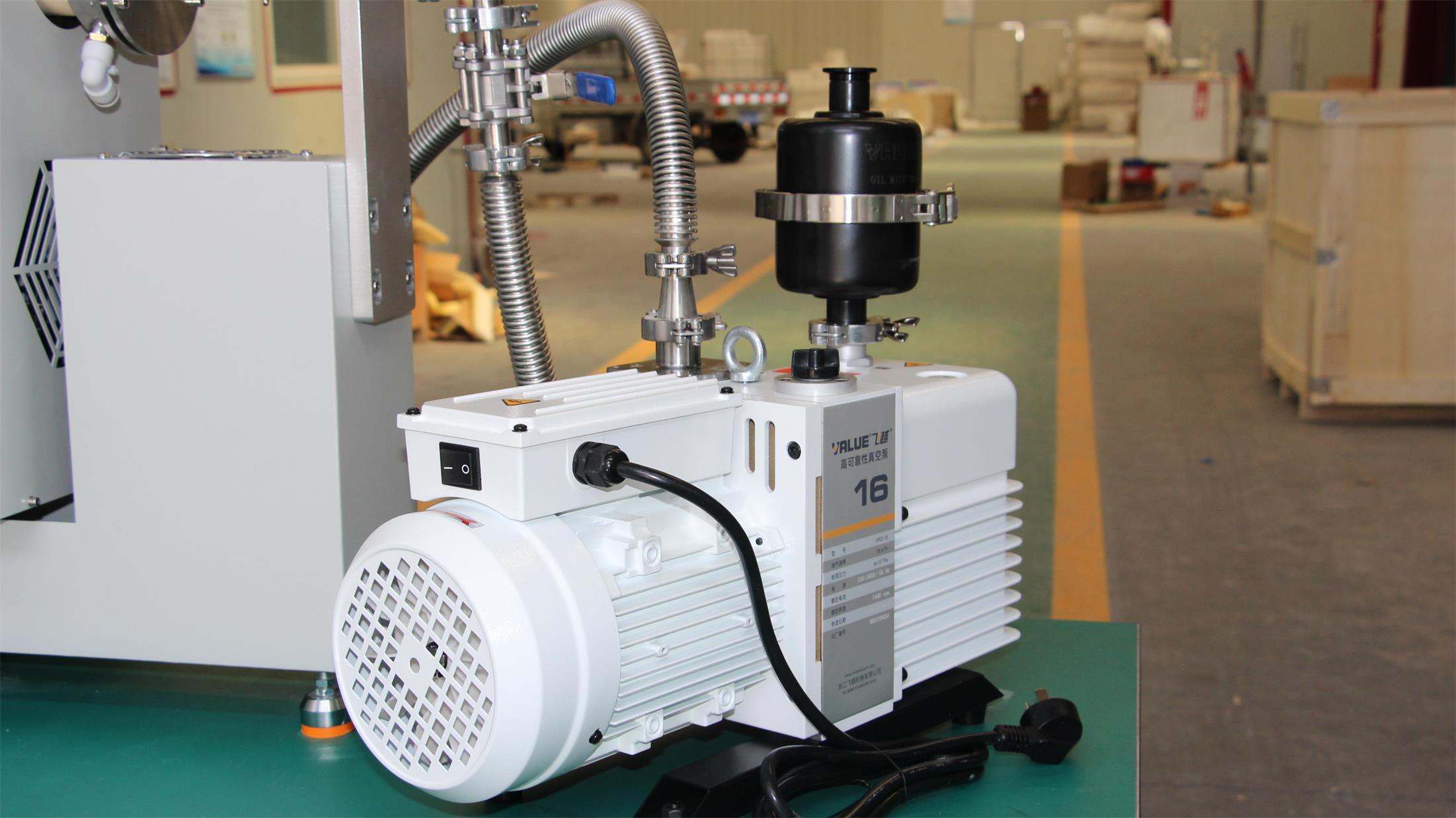

- Equip vacuum pump, pipeline and valve
- Adopts famous brand pump model VRD-16 with oil mist filter, pumping speed 4L/S, maximum vacuum degree can reach 10Pa

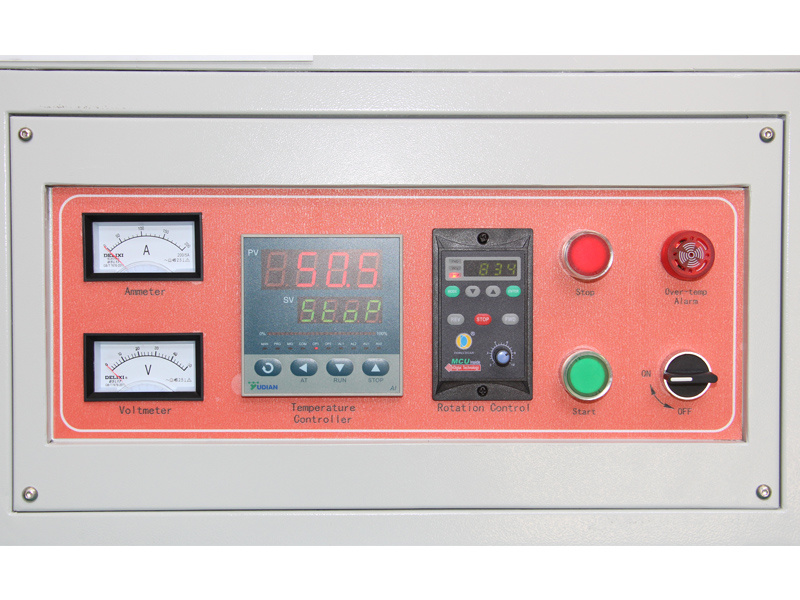

Control panel for 1700℃ Single heating zone CVD Rotary High temperature Vacuum tube furnace
- Temperature control and furnace body integrated design, electrical and temperature control system is installed in the lower part of the furnace body, integrated in the control panel
- Intelligent PID temperature controller with 30-segment programs, accuracy of ±1°C
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface (Optional)
-
Detail Technical Specifications
Model No. PTR D80/200/17 Structure Dual steel shell, furnace chamber, high purity corundum tube, tube supports, rotary system, gas supplying system, vacuum system, temperature controlling system etc Heating length 200mm Temp. uniformity 100mm Tube size OD80mm Tube material High purity corundum tube Power supply 4KW
AC220V
50HzPhase Single Working temperature Tmax 1700℃
Continuous working temperature 1600℃Sealing flange SS304 quick-opening water-cooling sealing flanges Atmosphere performance Available gases: Ar N2 H2 etc
Gas pressure ≤70000pa
Vacuum performance Max vacuum level could reach to 10Pa Gas supplying system Equips an individual set of single channel gas supplying device with gas inlet&outlet;
Gas flowing rate adjustableRotary system Material heated evenly
Forward and reverse controllable, rotary speed：1-10rmp/minTemperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°CHeating elements New type MoSi2 rods, both sides heating, uniform temperature field Heating rate Max heating rate：10℃/min ; recommended heating rate:1-8℃/min Furnace shell Carbon steel double shell Thermocouple type B Chamber material High-purity polycrystalline alumina fiber Electric components Schneider maker air switch, AC contactor, SSR Relay etc Safety measures Over heating, thermocouple breaking alarm and protection Compliance CE, ISO Warranty 18 months quality warranty with lifetime technical support (excluded consumable parts such as quartz tube, thermocouple etc) Standard packing list Tube furnace; processing tube, sealing flanges, gas tube, furnace hook, single channel gas supplying device, thermal gloves, manual book etc Shipment information Weight:186kgs; W650xL1400xH1050mm
Optional accessories Vacuum pump unit; MFC system Warning 1. The processing tube pressure should be lower 0.02MPa
2. Gas source should equip the pressure reducing valve
3. Before filling reduction gases like H2, should pump the air out of the tubeSimilar model comparison
Model No. PTR D40/12 PTR D80/12 PTR D120/12 Heating length 300mm 300mm 600mm Tube size OD40xL1000mm OD80xL1000mm OD120xL1200mm Power supply 1.8 KW 2.8 KW 5.0 KW Weight 60 KGS 75 KGS 145 KGS
