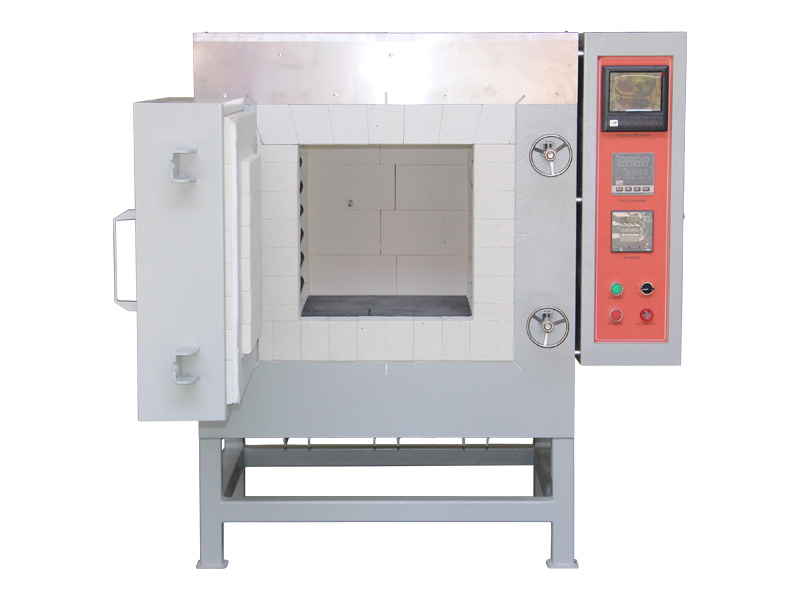

1200℃ 64L Laboratory Annealing Chamber Furnace
PC L64/12
Classification:
Laboratory Annealing Chamber Muffle Furnace.Dual carbon steel shell, Arched roof design,HRE alloy coil wire heated,Smart PID temperature control.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200℃ 64L Laboratory Annealing Chamber Furnace
- Commodity ID: PC L64/12
- 产品概述: Laboratory Annealing Chamber Muffle Furnace.Dual carbon steel shell, Arched roof design,HRE alloy coil wire heated,Smart PID temperature control.
<p>Daily used thermal processing equipment in lab and industry</p> <p>Cubical furnace chamber with patent arched roof</p> <p>HRE alloy coil wire,mounted on ceramic tube,3-side heating</p>
Product Overview
PC L64/12 is a Laboratory Annealing Chamber Furnace. Double carbon steel shell with fan-cooling housing, low surface temperature, high temperature and corrosion resistance. Furnace chamber adopts high alumina brick, good thermal insulation performance. Heating element uses HRE alloy coil wire,mounted on ceramic tube,3-side heating,uniform temperature field. N-type thermocouple.Smart Shimaden PID controller, 32 segments programmable,high temperature control accuracy.This Laboratory Annealing Chamber Furnace is an ideal thermal processing equipments for preparing small-sized samples in material research and labs or mining factory for daily using.
Main Features
- TMax 1200℃
- Double carbon steel shell with fan-cooling housing,reduce surface temperature
- Cubical chamber,Arched roof design,sturdy and durable
- High alumina brick chamber,good thermal insulation
- HRE alloy coil wire heated,mounted on ceramic tube,3-sided heating,uniform temperature field
- Heating rate 0℃-20℃/min adjustable
- Smart Shimaden PID controller, 32 segments programmable
- N-type thermocouple, long service life
- Five channel paperless recorder, calibrated thermocouples
- Power off, over-temperature, thermocouple breaking and burnout protection
- Good performance and energy saving effect
- CE certification
Product Details

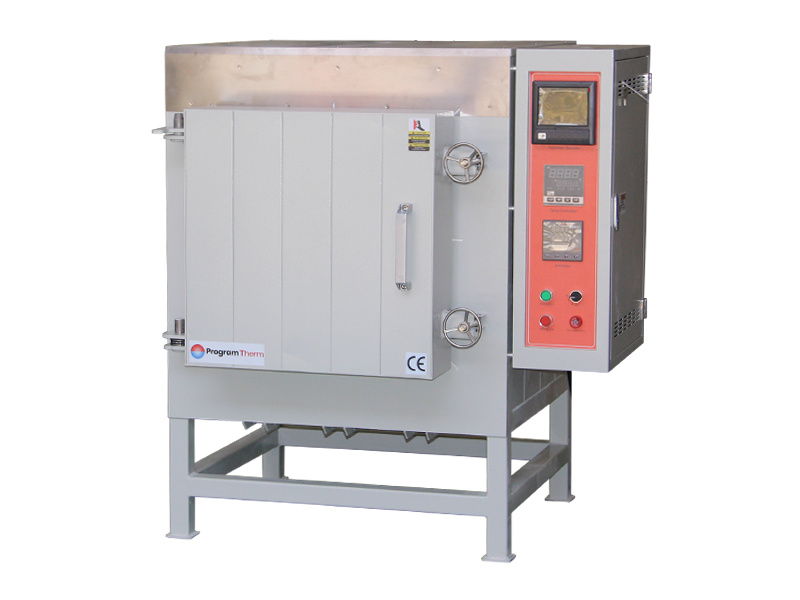

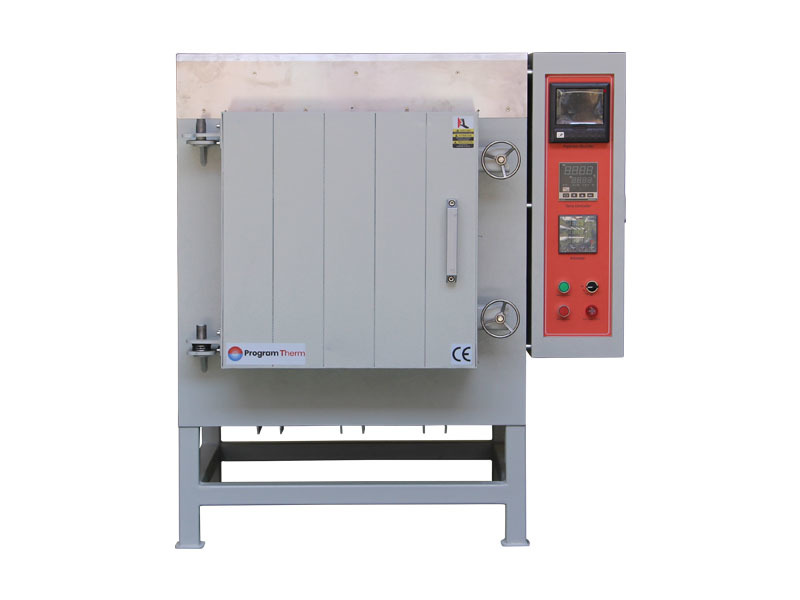

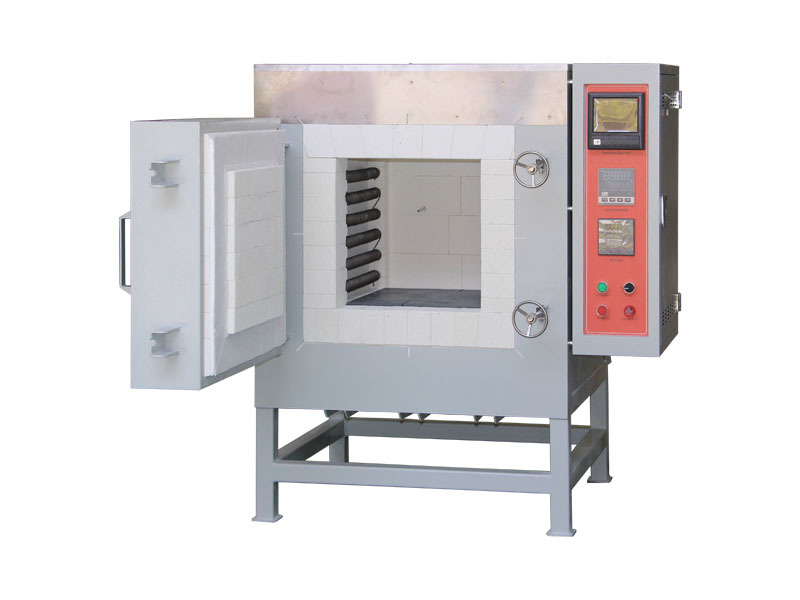

1200℃ 64L Laboratory Annealing Chamber Furnace
- PC L64/12 Laboratory Annealing Chamber Furnace consists of three parts: dual-layer carbon steel shell, furnace chamber and temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components,long service life.
- Export quality,ISO,CE certified.

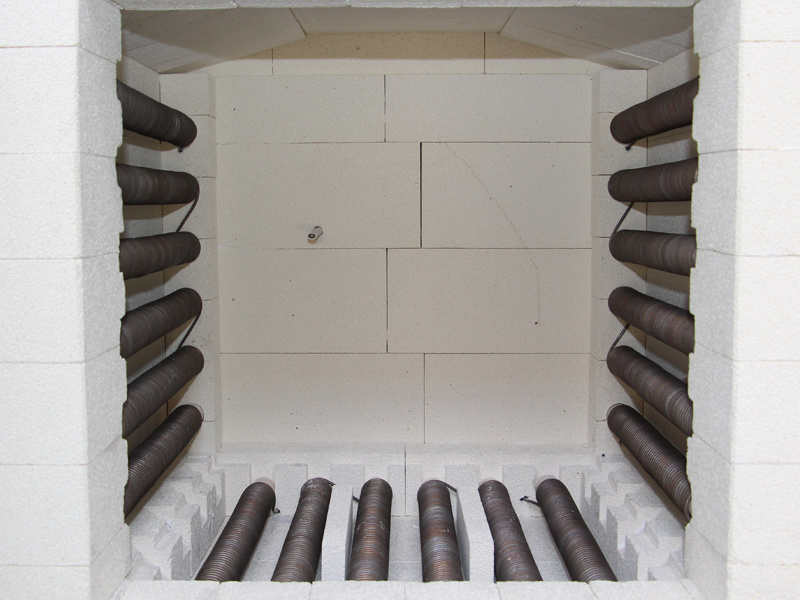

1200℃ 64L Laboratory Annealing Chamber Furnace,Chamber
- Cubical furnace chamber, high alumina brick insulated.
- Arched roof design, sturdy and durable
- Heating element uses HRE alloy coil wire,mounted on ceramic tube,3-sided heating,uniform temperature field,TMax 1200℃.
- Equip two N-type thermocouples,long service life.

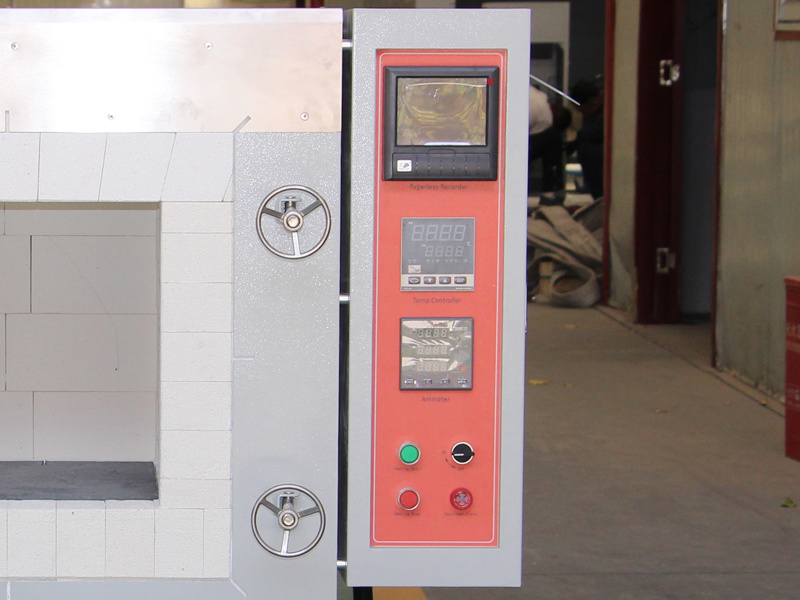

1200℃ 64L Laboratory Annealing Chamber Furnace,Electrical control panel.
- Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.(Yudian, Shimaden, Euro, touch screen optional)
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface(Optional)
-
Detail Technical Specifications
Model No. PC L64/12 Chamber size (DxWxH) D400xW400xH400mm /16x16x16″ Capacity 64L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system Power supply 15KW AC380-415V 50/60Hz Phase 3 phases Working temperature TMax 1200℃(2192°F)
Continuously 1100℃ (2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements HRE alloy coil wire,mounted on ceramic tube,3-sided heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N Furnace shell Carbon steel double housing Chamber material High alumina bricks Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/SIC bottom plate/Manual book Optional accessories Exhaust piping system Shipment information Weight:300 kgs
L1050xW1150xH1350mmAfter-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PC L200/12
PC L300/12 PC L450/12 PC L660/12 Inner size(DxWxH) 530x500x720mm 700x550x780mm 750x600x1000mm 1100x600x1000mm Capacity 200L 300 L 450 L 660 L Power supply 28 KW 30 KW 45 KW 60 KW Furnace dimensions(LxWxH) 1310x1400x1560mm 1480x1450x1570mm 1500x1530x1770mm 1850x1530x1770mm Weight 930 KGS 960 KGS 1600 KGS 1820 KGS
