1200℃ Multi-Heating Sides Industrial Chamber Muffle Furnace
PC L422/12M
Classification:
Industrial chamber muffle furnace. Multiple sides heating, uniform temperature field. Arched roof, alumina brick insulated. Suitable for annealing, tempering, normalizing etc.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200℃ Multi-Heating Sides Industrial Chamber Muffle Furnace
- Commodity ID: PC L422/12M
- 产品概述: Industrial chamber muffle furnace. Multiple sides heating, uniform temperature field. Arched roof, alumina brick insulated. Suitable for annealing, tempering, normalizing etc.
<p>Large floor-standing Industrial chamber furnace</p> <p>Arched furnace top with exhaust piping system</p> <p>HRE alloy coil wire,mounted on ceramic tube,5-side heating</p>
Product Overview
PC L422/12M is an industrial chamber muffle furnace, midium larger floor-standing furnace models.Double carbon steel with fan-cooling housing, low surface temperature, high temperature and corrosion resistance.Heavy duty, cubical furnace chamber, high alumina brick insulated.Heating element uses HRE alloy coil wire,mounted on ceramic tube,5-side heating,uniform temperature field. N-type thermocouple.Smart Shimaden PID controller, 50 segments programmable,high temperature control accuracy.This industrial chamber muffle furnace is Sufficient for numerous applications such as hardening or tempering, annealing, stress relieving etc.
Main Features
- TMax 1200℃
- Heavy duty, cubical furnace chamber, arched roof design, sturdy and durable, with Exhaust piping system
- High alumina mullite bricks chamber,good high temperature resistance and high strength
- HRE alloy coil wire heated,mounted on ceramic tube,5-sided heating,uniform temperature field
- Heating rate 0℃-20℃/min adjustable
- Smart Shimaden PID controller, 50 segments programmable
- N-type thermocouple, long service life
- Power off, over-temperature, thermocouple breaking and burnout protection
- Good performance and energy saving effect
- CE certification
Product Details

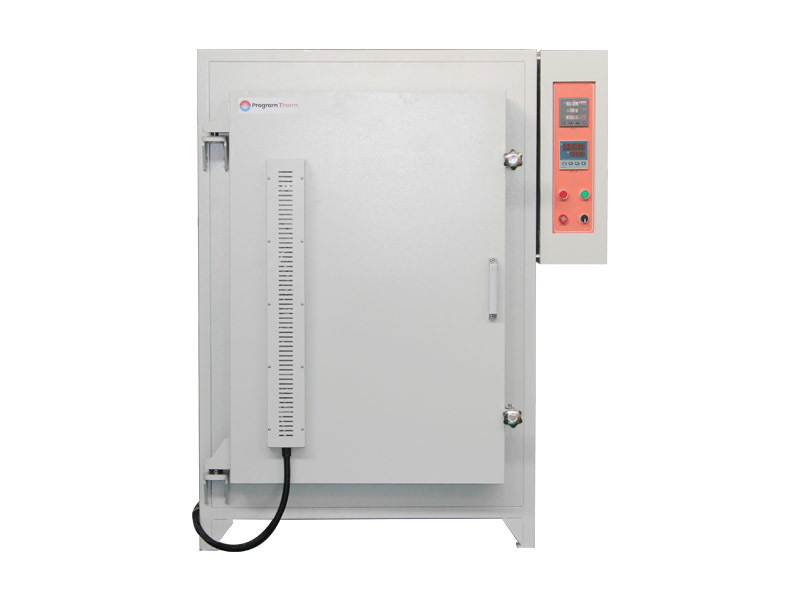

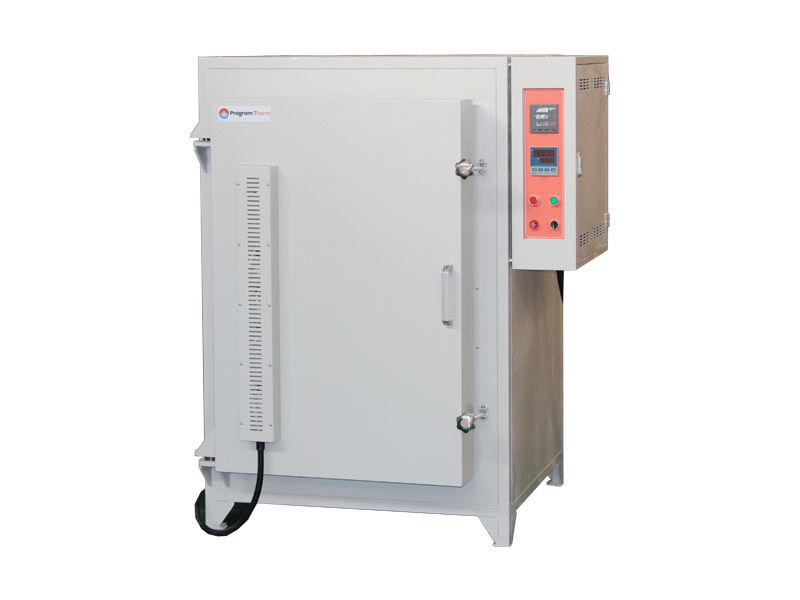

1200℃ Multi-Heating Sides Industrial Chamber Muffle Furnace
- PC L422/12M Multi-Heating Sides Industrial Chamber Muffle Furnace consists of four parts: dual-layer carbon steel shell, furnace chamber, exhaust discharging and temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components,long service life.
- Export quality,ISO,CE certified.

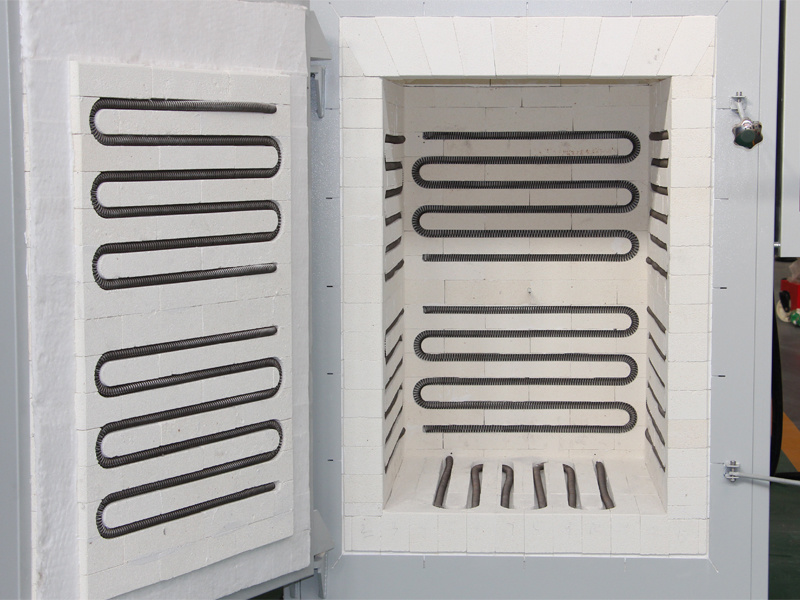

1200℃ Multi-Heating Sides Industrial Chamber Muffle Furnace,Chamber
- Heavy duty, cubical furnace chamber, high alumina brick insulated.
- Arched roof design, sturdy and durable, with Exhaust piping system
- Heating element uses HRE alloy coil wire,mounted on ceramic tube,5-sided heating,uniform temperature field,TMax 1200℃.
- Equip two N-type thermocouples,long service life.

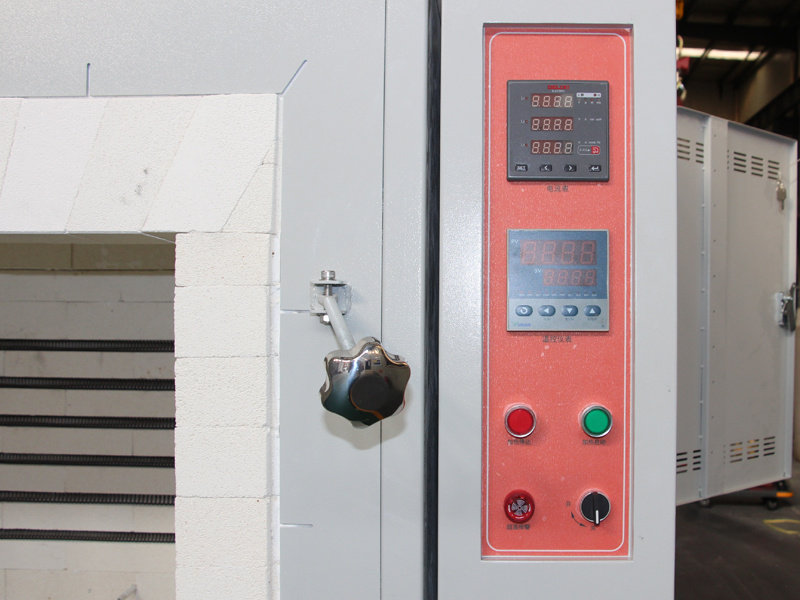

1200℃ Multi-Heating Sides Industrial Chamber Muffle Furnace,Electrical control panel.
- Shimaden PID temperature controller,50 segments programmable,high temperature control accuracy.(Yudian, Shimaden, Euro, touch screen optional)
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface(Optional)
-
Detail Technical Specifications
Model No. PC L422/12M Chamber size (DxWxH) D650xW650xH1000mm /26x26x40″ Capacity 422L Structure Outer shell/Insulation chamber/Furnace door/Exhaust piping system/Temperature control system Power supply 50KW AC380-415V 50/60Hz Phase 3 phases Working temperature TMax 1200℃(2192°F)
Continuously 1100℃ (2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 50 segments
Temperature accuracy +/- 1°CHeating elements HRE alloy coil wire,mounted on ceramic tube,5-sided heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N
Equip two pcs, dual protectionFurnace shell Carbon steel double housing Chamber material High alumina mullite bricks Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Manual book Optional accessories Exhaust piping system Shipment information Weight:960 kgs
L2170xW1420xH2090mmAfter-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PC L200/12
PC L300/12 PC L450/12 PC L660/12 Inner size(DxWxH) 530x500x720mm 700x550x780mm 750x600x1000mm 1100x600x1000mm Capacity 200L 300 L 450 L 660 L Power supply 28 KW 30 KW 45 KW 60 KW Furnace dimensions(LxWxH) 1310x1400x1560mm 1480x1450x1570mm 1500x1530x1770mm 1850x1530x1770mm Weight 930 KGS 960 KGS 1600 KGS 1820 KGS
