1200C Large Vertical Rotary Single zone Tube Furnace with OD300mm Metal Tube
PTR D300/600/12
Classification:
PTR D300/600/12 is a customized vertical rotary tube furnace, mainly for calcining ceramic oxide and graphite powder.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200C Large Vertical Rotary Single zone Tube Furnace with OD300mm Metal Tube
- Commodity ID: PTR D300/600/12
- 产品概述: PTR D300/600/12 is a customized vertical rotary tube furnace, mainly for calcining ceramic oxide and graphite powder.
<p>310SS stainless steel tube with built-in stirring blade</p> <p>Loading volume 10L,Rotating speed 0.1-5rpm</p> <p>SS304 sealing flange with gas inlet and outlet</p>
Product Overview

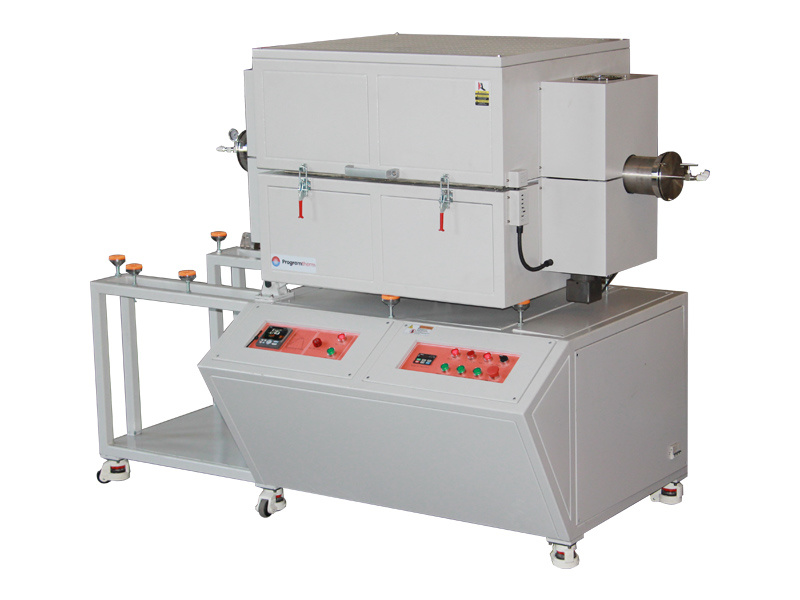

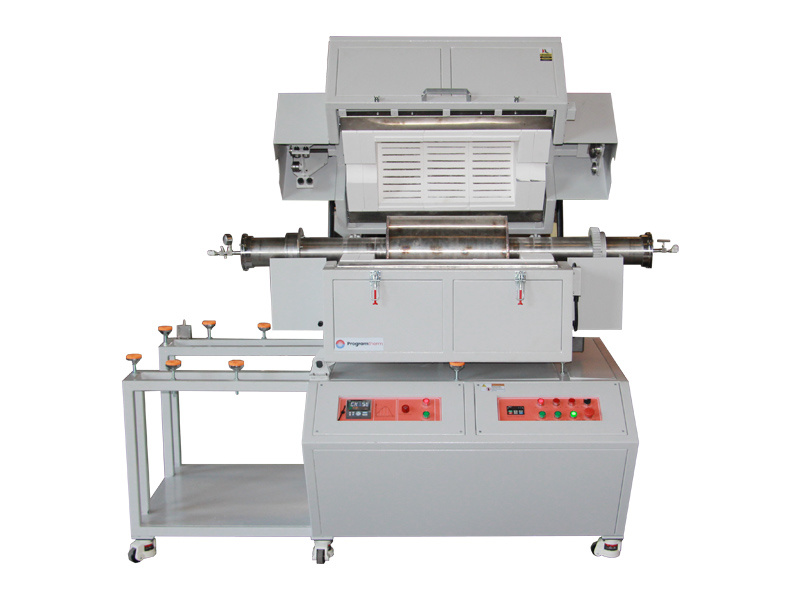

PTR D300/600/12 is a large single heating zone, tilting and rotary tube furnace, the furnace body can be tilted to 90°/ vertically, the furnace is designed with two semi circular chamber with embedded alloy coil wire. The furnace tube is made of 310SS stainless steel tube with built-in stirring blade, the effective loading volume is 10L, and the rotating speed could be adjusted ranges 0.1-5rmp. Especially suitable for production of pulverized Iron ore, the heat treatment process of granular materials, such as calcining ceramic oxide and graphite powder etc.
Mian Features
- Tmax 1200℃
- Single-heating zone, rotary, tilting, vertical tube furnace
- Manual furnace door with hydraulic rods assitance
- Ceramic fiber insulation chamber with embedded heating wire
- 310SS tube with built in stirring blade, loading volume 10L, rotating speed 0.1-5rmp
- Equip air cooling on both tube ends
- SS304 sealing flange with gas inlet and outlet
- N type thermocouple
- Digital PID controller with programmable 32 segments
- Dual flanges support provides better sealing and longer tube life
- CE certified
Product Details
1200°C Large Vertical Rotary Single heating-zone Tube Furnace
- The rotary tube furnace is mainly consists of seven parts namely furnace body, 310S processing tube, sealing flanges, gas supplying system, lifting system, rotating system and temp controlling system
- The furnace outer steel shell is processed with pickling and phosphating, environment powder coating on the surface, corrosion and oxidation resistance, built-in cooling fan, surface temperature Rt+45℃
- Exquisite appearance, ISO, CE compliance
Heating chamber with metal tube for the 1200°C raotry tube furnace
- The furnace is made of two semicircular ceramic fiber materials, vacuum filtered, and tightly coupled in one piece. Embedded HRE alloy resistance wire with temperature up to 1200℃
- Heating zone length 600mm and OD 300mm metal tube

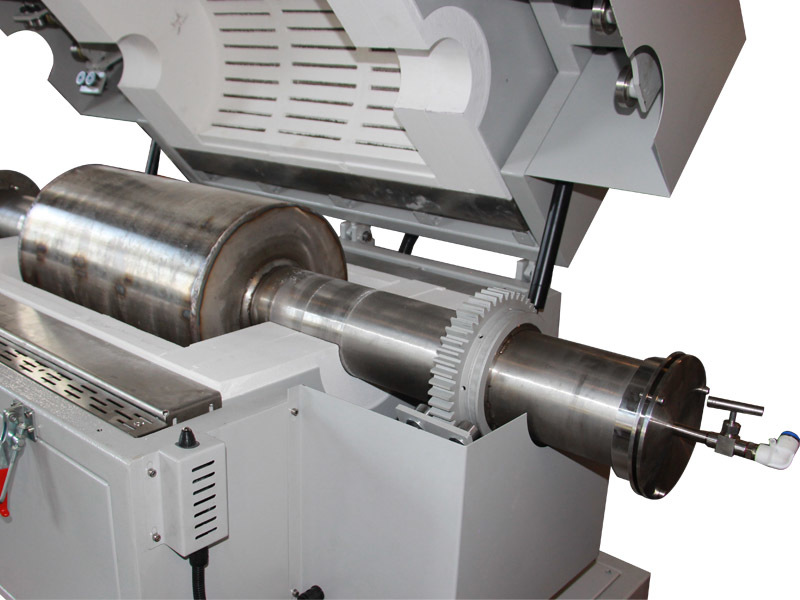

- The processing tube is made of 310S welded tube, surface polishing，heat resistant to 1100℃，middle heating tube OD300mm, non-heating zone OD120mm, 3 horizontal equal distance stirring paddles welded inside the tube, materials heat evenly during the rotating process. rotating speed could be adjustable.

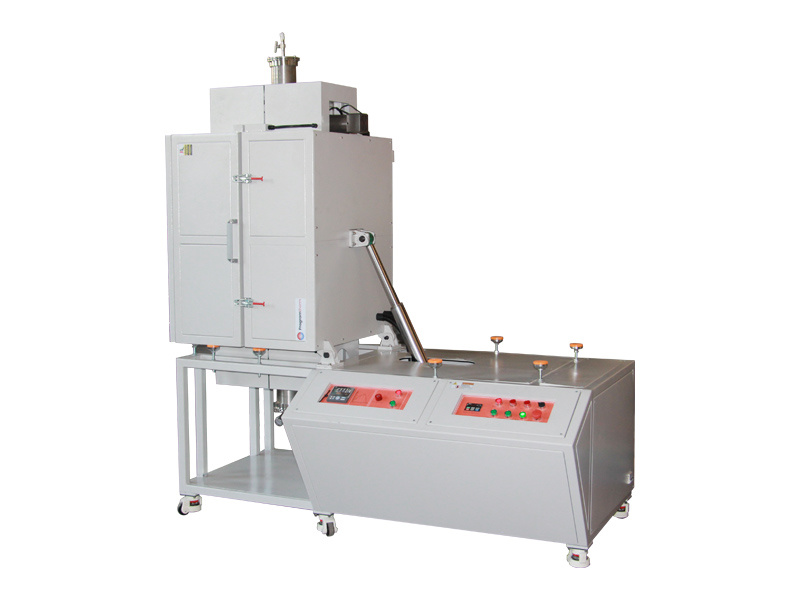

- Equipped with a hydraulic station and hydraulic cylinder, the furnace body can be tilted to 90° for easy unloading.
- N type thermocouple on furnace chamber top
304SS sealing flange, furnace tube supports, 1/4" pagoda gas nozzle
- Equipped with SS304 sealing flange accessories for materials fast loading and unloading, sealed with high-temperature resistant fluorine rubber sealing rings
- The air inlet and outlet adopts G1/4-inch pagoda air nozzle, which can be connected to a PTFE pipe with an outer diameter of 8mm. Max vacuum can reach 10*-7torr
- Equipped with air cooling system on tube end top
Heating programs for 1200°C large verticable rotary tube furnace
- Programmable 32 segments, heating rate 1-20C/min freely adjusted
- Good thermal insualtion, natural cooling, cooling down gently
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PTR D300/600/12 Furnace Structure Carbon steel shell, ceramic chamber, processing tube, tube supports, atmosphere controlled gas supplying system, temperature controlling system etc Heating length 600mm /24″ Temp. uniformity ±5℃， uniformity length 250mm Tube size OD：300mm (heating zone）
length：1700mmTube material 310SS, temperature resistance up to 1000 degree C
Buil in with 4 symitrical stirring blades, effective loading capacity：10LPower supply 15KW
AC380-415V
50/60HzPhase 3-phase Working temperature Continuous 1000℃ (2012°F) Sealing flanges SS304 sealing flange Atmosphere performance Available gases: Ar N2 H2 etc Vacuum performance Max vacuum level could reach to 10-5torr provided with molecular pump unit Gas supplying system Equips an individual set of single channel gas supplying device with gas inlet&outlet
Adjustable flowing speed:60-600ml/minRotary system Material heated evenly
Motor drived processing tube, rotary speed：1-8rmp/minFurnace door Assist by hydraulic rod, open up and down Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements Embedded alloy coil wire Heating rate Max heating rate：20℃/min
Recommended heating rate：15℃/minThermocouple type N Furnace shell Carbon steel double shell Chamber material 1500# Ceramic alumina insulation Electric components Schneider maker air switch, AC contactor, SSR Relay etc Safety measures Over heating, thermocouple breaking alarm and protection Compliance CE,ISO Warranty 18 months quality warranty with lifetime technical support (excluded consumable parts such as quartz tube, thermocouple etc) Standard packing list Tube furnace; 310SS tube, sealing flanges, gas tube, thermal gloves, manual book etc Shipment information Gross weight：1200kgs
W2290xL950xH2230mm
Optional accessories Vacuum pump unit; MFC system Warning 1. The processing tube pressure should be lower 5bar
2. Gas source should equip the pressure reducing valve
3. Before filling reduction gases like H2, should pump the air out of the tubeSimilar model comparison
Model No. PTR D40/300/12 PTR D80/300/12 PTR D120/600/12 Heating length 300mm 300mm 600mm Tube size OD40xL1000mm OD80xL1000mm OD120xL1200mm Power supply 1.8 KW 2.8 KW 5.0 KW Weight 60 KGS 75 KGS 145 KGS
