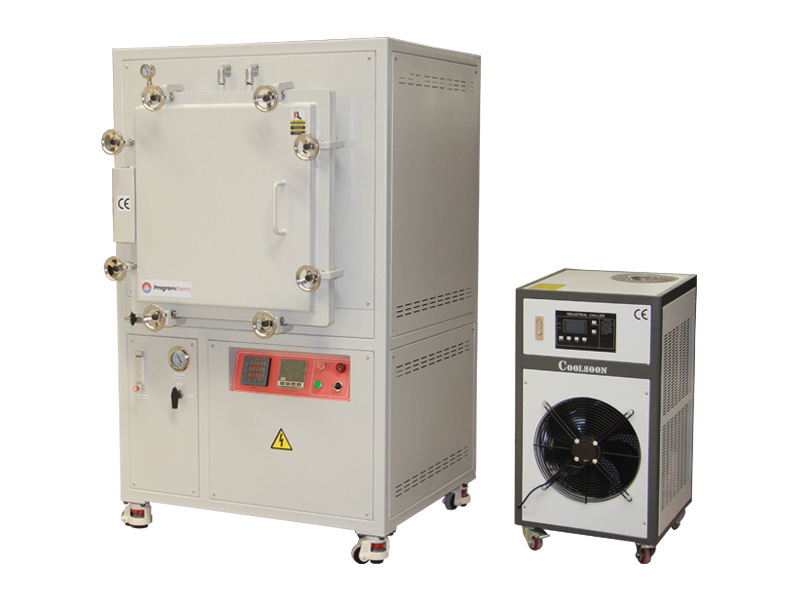

1200°C 64L Atmosphere Furnace With Industrial Chiller
PA L64/12
Classification:
Tmax 1200℃.Carbon steel double sealed housing.Ceramic fiber chamber. Embedded HRE alloy coil wire heated. Shimaden PID temperature controller,programmable 32 segments.Work in air, inert gas and rough vacuum environment,Max 50000Pa.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200°C 64L Atmosphere Furnace With Industrial Chiller
- Commodity ID: PA L64/12
- 产品概述: Tmax 1200℃.Carbon steel double sealed housing.Ceramic fiber chamber. Embedded HRE alloy coil wire heated. Shimaden PID temperature controller,programmable 32 segments.Work in air, inert gas and rough vacuum environment,Max 50000Pa.
<p>Industrial Chiller,Microcomputer PLC control system</p> <p>Gas float flowmeter,multi gas inlet and outlet</p> <p>Stainless steel ball valve,silicone gasket and pressure gauge</p>
Product Overview
PA L64/12 is an Atmosphere Furnace With Industrial Chiller. Carbon steel double housing. Ceramic fiber chamber. Heating element uses embedded HRE alloy coil wire.Shimaden PID temperature controller,programmable 32 segments,high temperature control accuracy.Gas port uses 1/4" hose barb,work in air, inert gas and rough vacuum environment, Max 70000Pa. Equips an industrial chiller. This atmosphere furnaces are mainly used for calcination process or pyrolysis,material synthesis in laboratories or research institutes,providing an environment for various purposes in many heat treatment experiments,such as manufacturing steel hydraulic fittings.
Main Features
- TMax 1200°C
- Chamber lining uses ceramic fiber raw materials,CNC carved,high temperature resistance,efficient energy saving
- Carbon steel double housing,furnace surface water cooling circulation,reduce surface temperature
- Multi-set air inlet and outlet,equipped with gas float flowmeter,stainless steel ball valve, silicone gasket and pressure gauge
- Available gases:H2, Ar, N2 etc
- Embedded HRE alloy coil wire, three sides heating,uniform temperature field
- Heating rate 0℃-20℃/min adjustable
- N type thermocouple,long service life
- Equipped with an Industrial Chiller
- Max 70000Pa
- Smart 32-segment programmable automatic temperature control
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

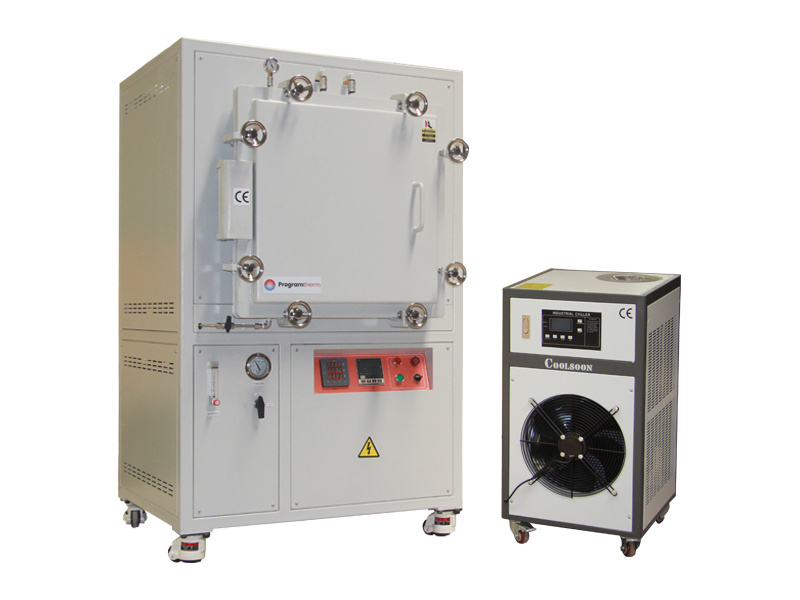

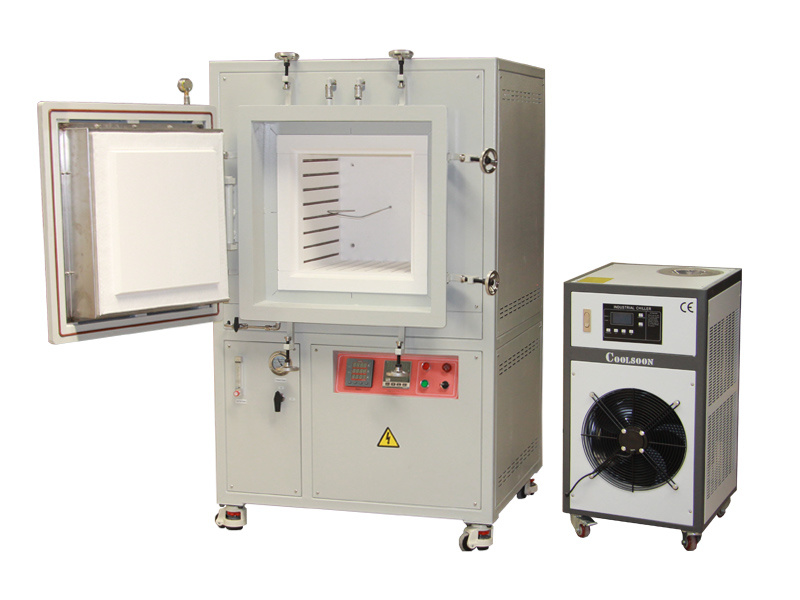

1200°C 64L Atmosphere Furnace With Industrial Chiller
- PA L64/12 Atmosphere Furnace consists of four parts: furnace body, atmosphere control system,temperature control system and water-cooling system system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.Furnace surface water cooling circulation,the surface temperature Rt+45℃.
- Siemens electrical components, long service life.
- Export quality, ISO,CE certified.

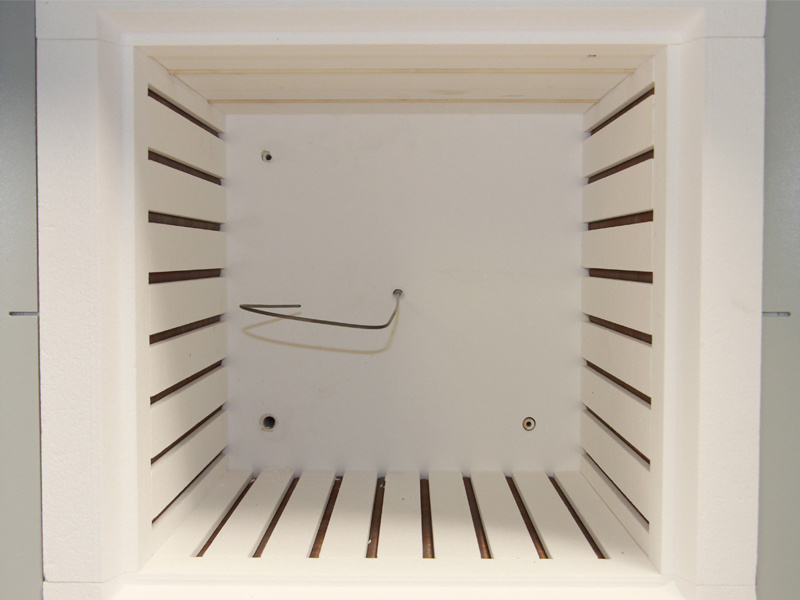

1200°C 64L Atmosphere Furnace Chamber
- Chamber lining uses ceramic fiber raw materials,CNC carved.Square chamber,chamber walls tight coupling.
- Embedded HRE alloy coil wire heated, three sides heating,uniform temperature field,TMax 1200°C.
- N-type thermocouple,movable,meet temperature measurement requirements at different locations,long service life

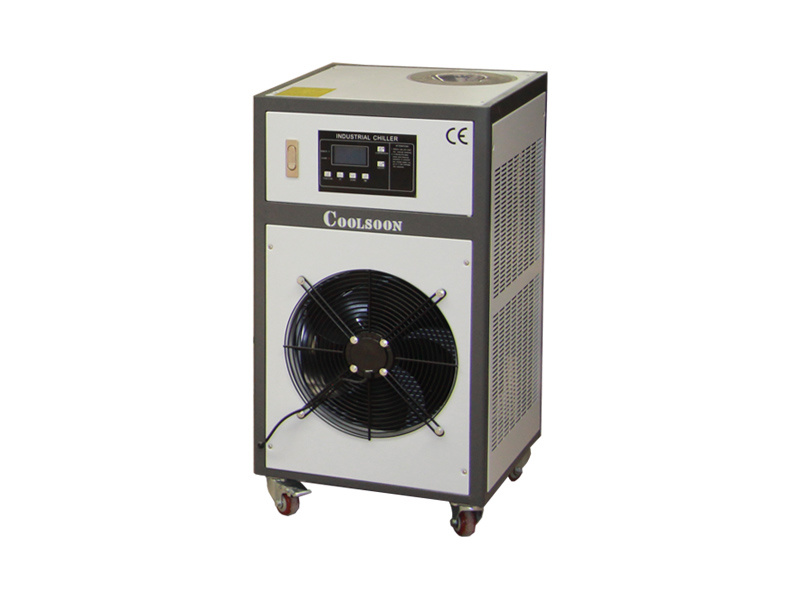

1200°C Atmosphere Furnace, Industrial Chiller
- Microcomputer PLC control system, control the operation of the whole machine automatically, multi-functional error-proof operating system
- The all-titanium tube water tank evaporator prevents the generation of solid and other metal impurities during the transportation of pure water
- Equipped with a precision digital display temperature controller, temperature accuracy ±1℃ (±0.1℃)
- Schneider electrical parts, long service life
Heating and cooling of 1200℃ high temperature Atmosphere Furnace
- Shimaden PID temperature controller,32 segments programmable,high temperature control accuracy.
- Good thermal insualtion, natural cooling, cooling down gently.
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded.
-
Detail Technical Specifications
Model No. PA L64/12 Chamber size (DxWxH) D400xW400xH400mm /16x16x16″ Capacity 64L Structure Outer shell/Insulation chamber/Furnace door/Atmosphere control system/Temperature control system/Water-cooling system Power supply 18KW
AC380V
50/60HzPhase 3 phases Working temperature TMax 1200℃ (2192°F)
Continuously 1100℃(2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements Embedded HRE alloy coil wire, three sides heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N Furnace shell Carbon steel double water-cooling housing Chamber material Ceramic Fiber Raw Materials,CNC carved,high temperature resistance,efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Atmosphere performance H2, Ar, N2 etc.
Not to exceed 0.03 MPa/150torr/3psiVacuum performance Max 70000Pa Gas supplying system 1/4" pagoda gas nozzle，Individual set float flow control system
Multi-set air inlet and outlet
Gas flow 1-10L/minCompliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/Fire door/Individual set of gas supplying device/Vacuum valve interface/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Vacuum pump/Chiller/Gas Detection System Shipment information Weight：560kgs
W1140*L1160*H2050mmAfter-sales 1. Consumables such as heating elements, transducer, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Gas pressure in the furnace tube should not be higher than 0.02MPa.
2. High gas cylinder pressure. Use pressure reducing valve when introducing gas to furnace.
3. When using flammable and explosive gases for experiments, safety accessories must be equipped.
4. When the operating temperature exceeds 1400℃, cold water circulation device must be installed.
5. The equipment room must be well ventilated.Similar model comparison
Model.No PA L3/14 PA L12/14 PA L36/14 Inner size(DxWxH) 150x150x150mm 300x200x200mm 400x300x300mm Capacity 3 L 12 L 36 L Power supply 4 KW 6 KW 13 KW Furnace dimensions(LxWxH) 560x760x1310mm 700x810x1360mm 800x920x1450mm Weight 290 KGS 356 KGS 460 KGS
