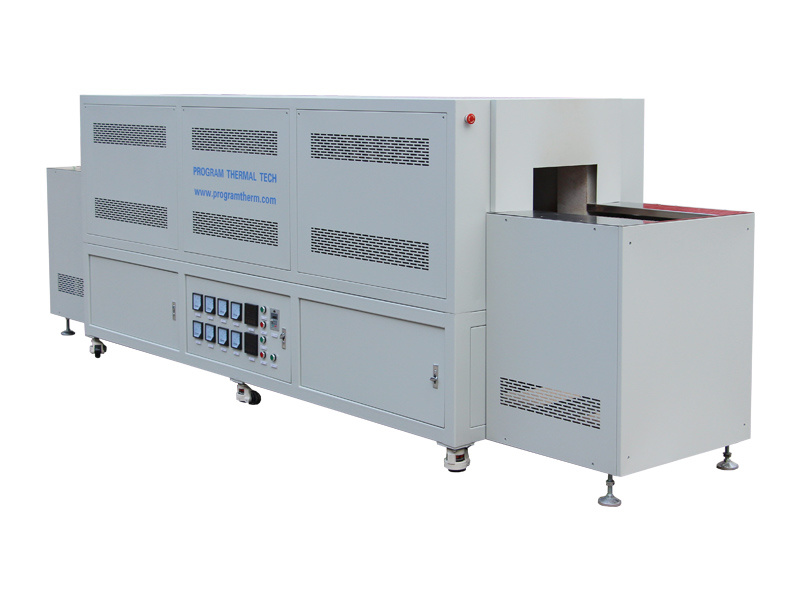

500℃ 120L Mesh Belt Drying Furnace
PHT L120/5
Classification:
Mesh Belt Drying Furnace,Carbon steel double housing,high aluminum 1500#ceramic fiber chamber.SIC rod heated.Shimaden PID controller.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 500℃ 120L Mesh Belt Drying Furnace
- Commodity ID: PHT L120/5
- 产品概述: Mesh Belt Drying Furnace,Carbon steel double housing,high aluminum 1500#ceramic fiber chamber.SIC rod heated.Shimaden PID controller.
<p>SS304 mesh belt,belt speed adjustable</p> <p>Two independent zones,heating length 2000mm</p> <p>Double exhaust ducts on the top, connect to outdoor ventilation pipes</p>
Product Overview
PHT L120/5 is a customized Mesh Belt Drying Furnace.Equipped with SS304 mesh belt.Carbon steel double housing,high aluminum 1500# ceramic fiber chamber,high temperature and corrosion resistant.SIC rod heated,two rows,upper and lower heating.Shimaden PID controller,programmable 32 segments,high temperature control accuracy.Suitable for continuous drying of metal, ceramic powder or small workpieces, usually to remove moisture or impurities.
Main Features
- Working temperature Rt-500℃ adjustable
- The interior is made of high-quality thermal insulation materials, good thermal insulation effect
- SS304 mesh belt,stable output and transmission of products
- Output: 40 kg/h
- Convey speed: 25-50 mm/min, stable and adjustable
- Fully automatic rotary operation, continuous production possible
- Two heating zones,heating length 2000mm
- SIC rod heated,TMax 600℃
- Heating rate：0℃-15°C / min adjustable
- Durable Type N Thermocouple
- Double over-temperature protection, safe and reliable power control
- Smart 32 segments programmable, equipped with LED screen
- SCR control, high temperature control accuracy, accuracy is +/-1℃
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

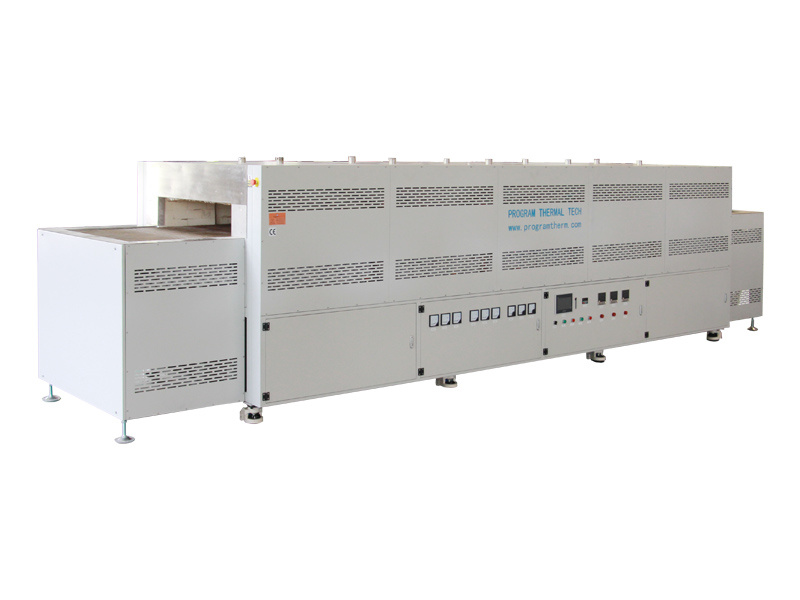

500℃ Mesh Belt Drying Furnace
- PHT L120/5 Mesh Belt Drying Furnace consists of three parts: furnace body, temperature control system and mesh belt transmission system
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components, long service life
- Export quality,ISO,CE certified.

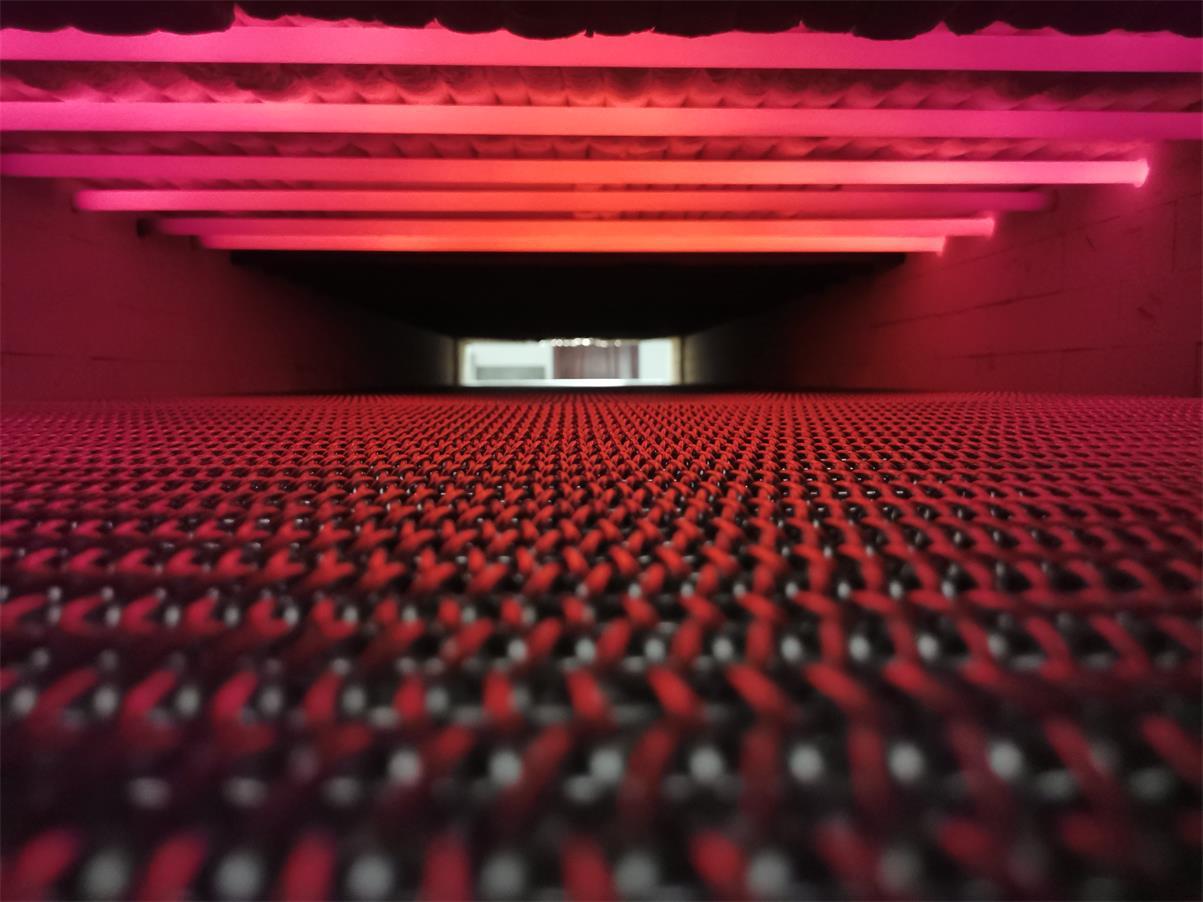

500℃ Mesh Belt Drying Furnace,Drying oven
- Chamber lining uses high aluminum 1500# ceramic fiber board,high temperature and corrosion resistant,uniform temperature field.
- SIC rod heated,TMax 600℃。
- Durable N-type thermocouple with long service life.
500℃ Mesh Belt Drying Furnace,Electrical control panel.
- Shimaden PID temperature controller,32 segments programmable, curve heating and set temperature rate,equipped with LED display
- SCR control, high temperature control accuracy, accuracy is +/-1℃
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function.
- With 485 communication interface (Optional)
-
Detail Technical Specifications
Model No. PHT L120/5 Chamber size (DxWxH) D3000xW300xH200mm /120x12x8″ Structure Outer shell/Insulation chamber/Furnace door/Mesh belt transmission system/Temperature control system Heating zone Two Heating length 2000mm Belt size W300mm
H200mmPower supply 35KW
AC380V
50/60HzPhase 3 phases Working temperature TMax 500℃(932°F) Temperature uniformity +/- 5℃ Temperature range Rt-500℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements SIC rod,two rows,upper and lower heating Heating rate Max:20℃/min
Recommend:15℃/minThermocouple type N
Equip two pcs, dual protectionFurnace shell Carbon steel double housing Chamber material High aluminum 1500# ceramic fiber board,high temperature resistance,efficient energy saving Convey system SS304 mesh belt chain
Convey speed: 25-50mm/min adjustable
Put metal particles into SS304 made sagger and place them on the mesh beltSafety measures Power off, over-temperature, thermocouple breaking and burnout protection Shipment information Weight:1300kgs
W4800xL1300xH1750mmCompliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Gas flow device,Exhaust piping system After-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface over extended use. A normal occurrence and can be repaired with alumina coating.
2. A dedicated person must supervise and control the operation process, monitoring parameters like temp, humidity, and pressure.
3. Raw materials should be tested, classified, screened, and adjusted for mesh belt furnace conditions to meet processing requirements.
4. Staff must wear protective gear like glasses, masks, gloves when operating mesh belt furnace for safety.
5. Please do not inject flammable, explosive or highly corrosive gases.
