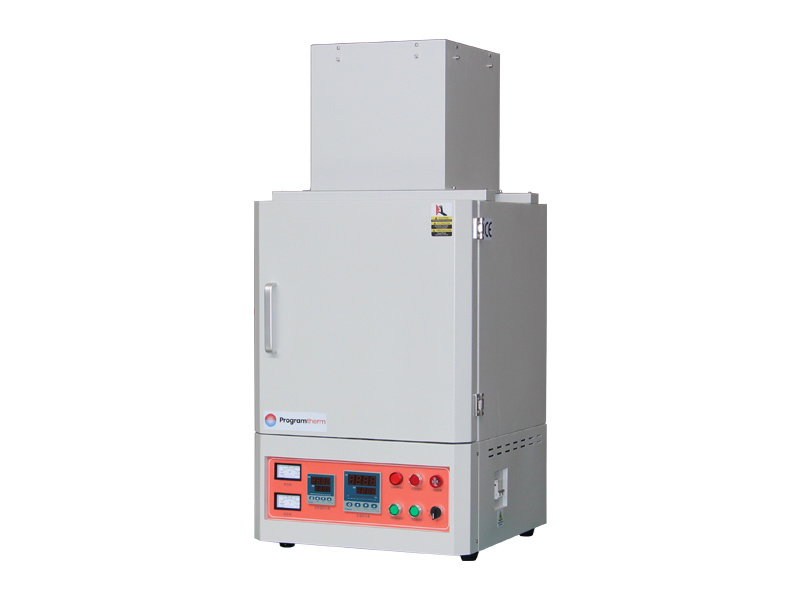

1700°C Small Laboratory Muffle Furnace with Exhaust Gas Treatment Device
PM L3/17P
Classification:
High temperature muffle furnace with Exhaust gas treatment device.Carbon steel double air-cooled housing.Mitsubishi 1800# high alumina ceramic fiber chamber.U-shape new type MoSi2 rod heated.Smart Yudian PID temperature controller,programmable 30 segments.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1700°C Small Laboratory Muffle Furnace with Exhaust Gas Treatment Device
- Commodity ID: PM L3/17P
- 产品概述: High temperature muffle furnace with Exhaust gas treatment device.Carbon steel double air-cooled housing.Mitsubishi 1800# high alumina ceramic fiber chamber.U-shape new type MoSi2 rod heated.Smart Yudian PID temperature controller,programmable 30 segments.

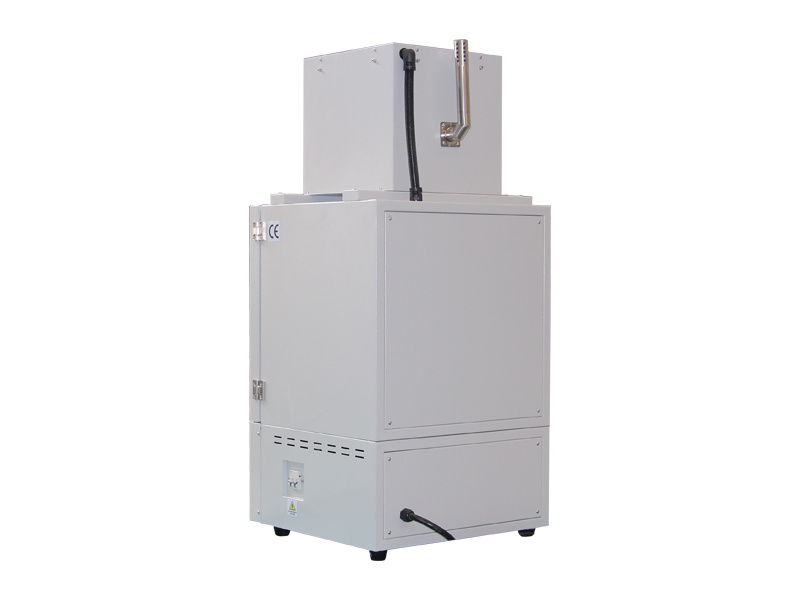

<p>Exhaust gas treatment device on the top of the chamber</p> <p>Mitsubish ceramic fiber furnace,CNC carved</p> <p>MoSi2 rod heating on both sides,stable resistance,uniform temp field</p>
Product Overview
PM L3/17P is a small benchtop high temperature Muffle Furnace with Exhaust Gas Treatment Device.Carbon steel double air-cooled housing.The surface is environmental friendly, electrostatic powder spray-coated and baked,high temperature and corrosion resistant.Chamber lining uses Mitsubishi 1800# high aluminum ceramic fiber raw material,CNC carved,resistance to rapid cooling and heating, good corrosion resistance, long service life.Heating element uses U-shape new type MoSi2 rod,equip 4pcs,uniform temperature field and low energy consumption. A secondary heating system is installed on the top of the chamber. Yudian PID temperature controller,programmable 30 segments, high temperature control accuracy.Protection system with Power off, over-temperature, thermocouple breaking and burnout protection.This small benchtop high temperature Muffle Furnace is suitable for a petrochemical plant, a variety of heat treatment applications, such as ceramic sintering, glass sealing firing, ignition testing, gravimetric analysis, and heat treatment of steel parts, stone, etc.
Main Features
- TMax 1700°C
- Carbon steel double housing,fan cooling,surface temperature Rt+45℃
- Two-color high-quality epoxy powder electrostatic spraying
- 1800# high alumina ceramic fiber,good thermal insulation effect,TMax 1800°C.
- Furnace door and bottom uses wear-resistant alumina insulation material
- U-shape new type MoSi2 rod,uniform temperature field
- Durable Type B Thermocouple
- A secondary heating system is added to the top of the chamber, for the treatment of exhaust gases and organic matter generated by heating materials
- Smart Yudian PID temperature controller,Temperature control accuracy ±1°C
- Power off, over-temperature, thermocouple breaking and burnout protection
- Siemens electrical components, long service life
- Stable performance, low noise and high safety
- CE certification
Product Details

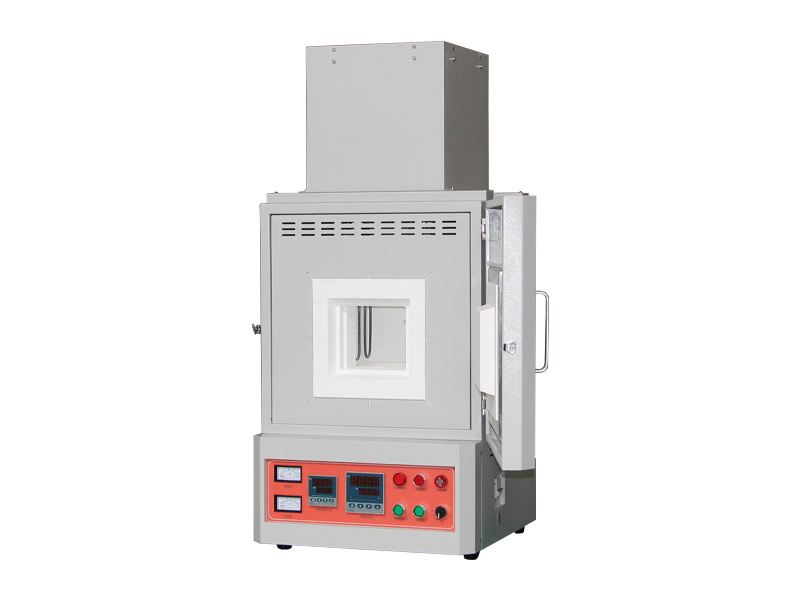

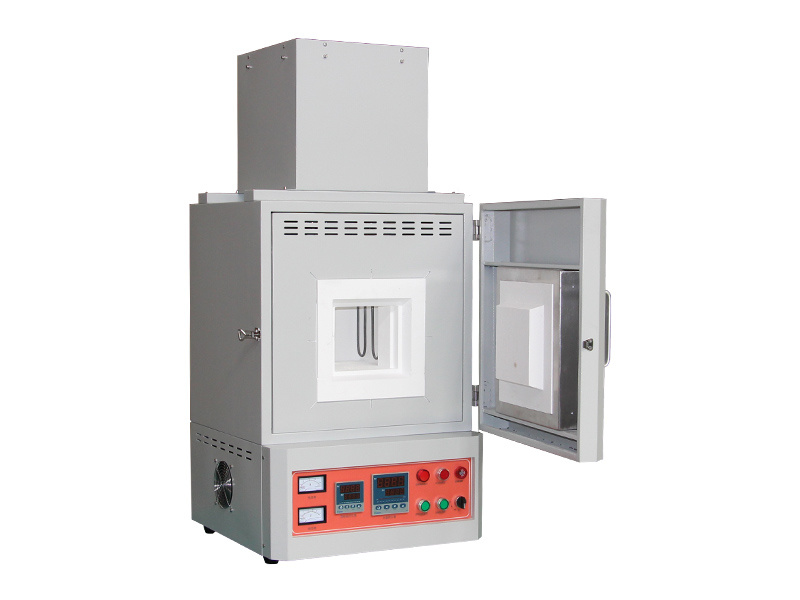

1700°C Small Laboratory Muffle Furnace with Exhaust Gas Treatment Device
- PM L3/17P Laboratory Muffle Furnace consists of four parts: furnace body, temperature control system, air cooling system and Exhaust Gas Treatment system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
- Siemens electrical components, superior quality.
- Export quality, CE certified.

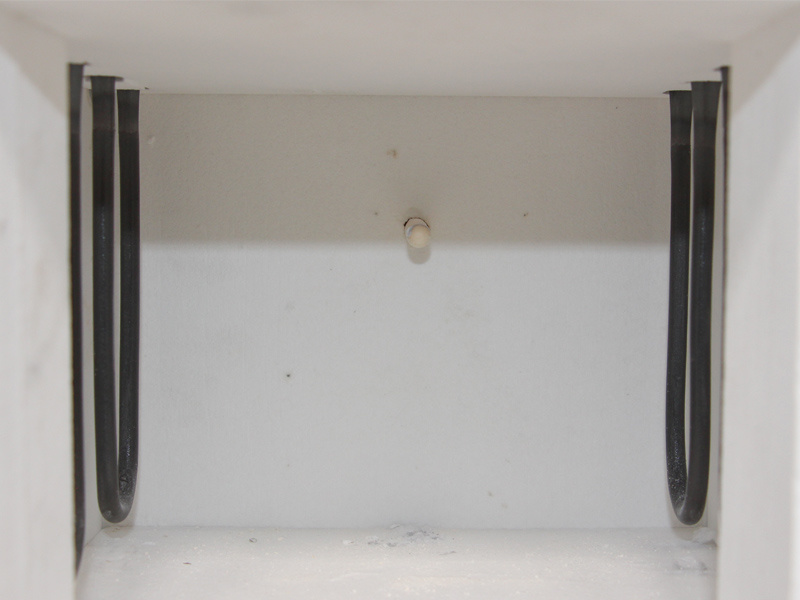

1700°C Small Laboratory Muffle Furnace，Chamber.
- Chamber lining uses high alumina 1800# ceramic fiber raw material,CNC carved.Square chamber,chamber walls tight coupling.
- U-shape new type MoSi2 rod,equip 4pcs,both sides heating,uniform temperature field,TMax 1700°C.
- Durable B-type thermocouple,long service life.

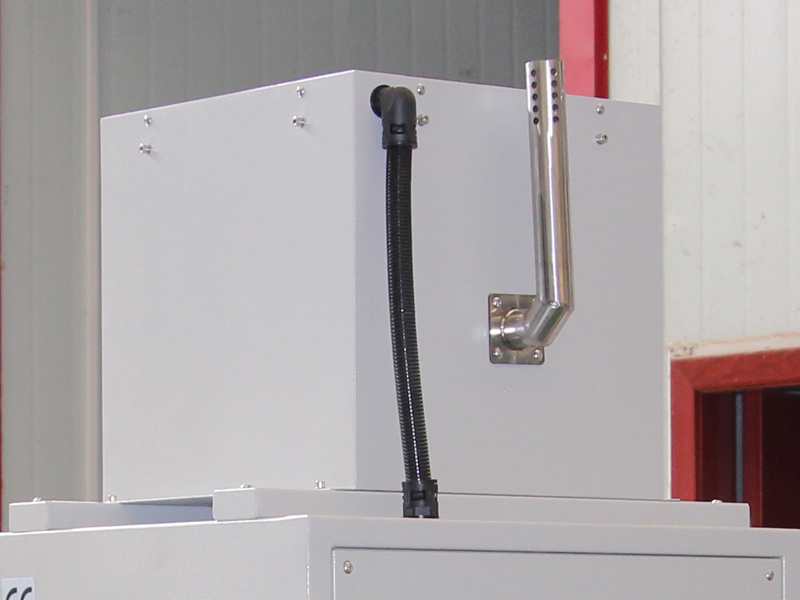

1700°C Small Laboratory Muffle Furnace，A secondary heating system.
- A secondary heating system is added to the top of the chamber, for the treatment of exhaust gases and organic matter generated by heating materials
- Through the top ceramic pipe into the secondary heating chamber, the material after secondary heating, combustion is full, to achieve the exhaust gas emission standards

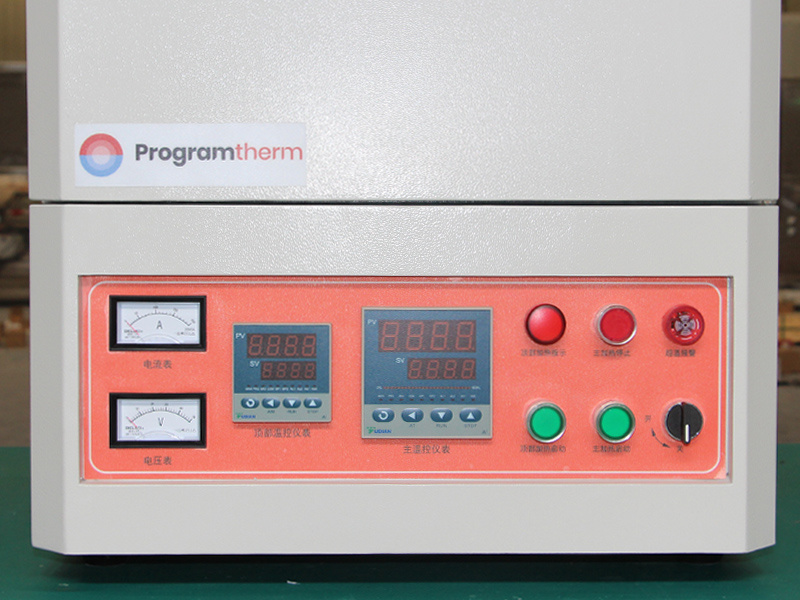

1700℃ Laboratory Muffle Furnace，Electrical control panel.
- Yudian PID temperature controller,programmable 30 segments, high temperature control accuracy.
- Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes.
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface (Optional)
-
Detail Technical Specifications
Model No. PM L3/17P Chamber size (DxWxH) D150xW150xH150mm /6x6x6″ Capacity 3.2 L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system/Air-cooling system/Exhaust gas treatment device Power supply 4KW
AC220V
50/60HzPhase Single phase Working temperature TMax 1700℃(3092℉)
Continuously 1600℃(2912℉)Temperature uniformity +/- 5℃ Temperature range Rt-1700℃ Temperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°CHeating elements U-shape MoSi2 rod(4pcs） Heating rate Max：10℃/min
Recommend：1-8℃/minThermocouple type B Furnace shell Carbon steel double air-cooling housing Chamber material High aluminum 1800# ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Shipment information Weight：70 kgs
W620xL670xH1100mmCompliance CE,ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/Fire door/High temperature gloves/Crucible tongs/Two additional MoSi2 rod/Manual book Optional accessories Exhaust piping system After-sales 1. Consumables such as heating elements, thermocouple etc.are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PM L8/17 PM L12/17 PM L18/17 PM L36/17 Inner size(DxWxH) 200x200x200mm 300x200x200mm 300x250x250mm 400x300x300mm Capacity 8 L 12 L 18 L 36 L Power supply 5 KW 6 KW 7 KW 13 KW Furnace dimensions(LxWxH) 720x670x1000mm 600x690x920mm 820x670x1000mm 1140x940x1635mm Weight 165 KGS 226 KGS 260 KGS 300 KGS
