1700°C Small Benchtop High-temperature Muffle Furnace
PM L1/17
Classification:
TMax 1700°C.Carbon steel carbon steel air-cooled housing.Ceramic fiber chamber. U-shape MoSi2 rods heated,2 sides heating. Yudian PID temperature controller, programmable 30 segments.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1700°C Small Benchtop High-temperature Muffle Furnace
- Commodity ID: PM L1/17
- 产品概述: TMax 1700°C.Carbon steel carbon steel air-cooled housing.Ceramic fiber chamber. U-shape MoSi2 rods heated,2 sides heating. Yudian PID temperature controller, programmable 30 segments.
<p>Compact design,lightweight structure,save space</p> <p>U-shape MoSi2 rod heated,uniform temperature field</p> <p>Smart PID temperature controller,RT-1700℃ freely set</p>
Product Overview
PM L1/17 TMax 1700°C.Adopt Carbon steel air-cooling housing and beautiful powder electrostatic spraying process. High temperature and corrosion resistant.Chamber lining uses ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving.Heating element uses U-shape MoSi2 rod, uniform temperature field, fast heating and cooling.Temperature control system uses Yudian PID temperature controller,programmable 30 segments, high temperature control accuracy.Protection system with Power off, over-temperature, thermocouple breaking and burnout protection.It is an ideal furnace for high-temperature sintering, metal annealing, and quality inspection in colleges and universities, research institutes, and industrial and mining enterprises.
Product Video
Main Features
- TMax 1700°C
- Carbon steel air-cooling housing,two-color high-quality epoxy powder electrostatic spraying,surface temperature below 45°C
- Integrated design, compact design, lightweight structure, saving space
- Ceramic fiber chamber,CNC carved,high temperature resistance,efficient energy saving
- U-shape MoSi2 rod, heating on two sides, uniform temperature field
- Heating rate: 0℃-10℃/min adjustable
- Durable Type B Thermocouple
- Smart Yudian PID controller, 30 segments programmable,curve heating and set temperature rate
- Power off, over-temperature, thermocouple breaking and burnout protection
- Siemens electrical components, long service life
- Stable performance, low noise and high safety
- CE certification
Product Details

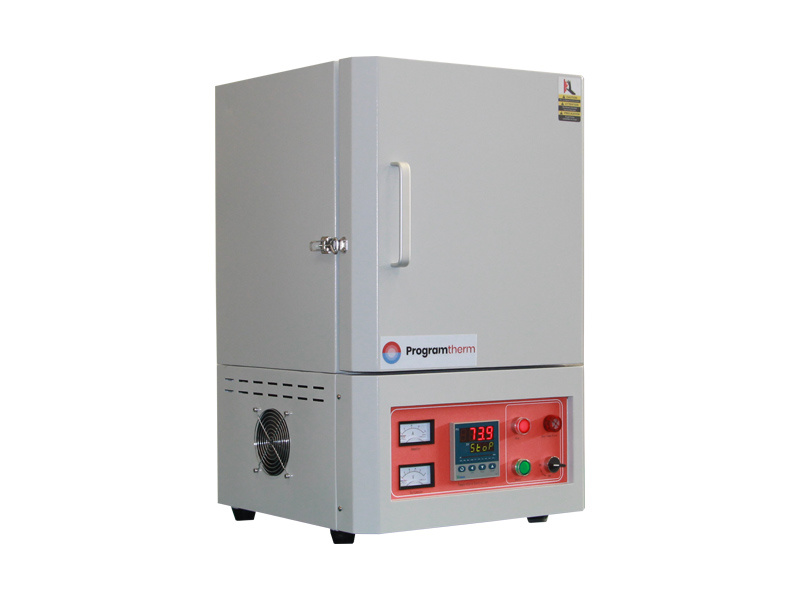

Small Benchtop High-temperature Muffle Furnace
- PM L1/17 Small Benchtop High-temperature Muffle Furnace consists of two parts: furnace body, temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.
- Siemens electrical components, reliable quality.
- Export quality, CE certified.

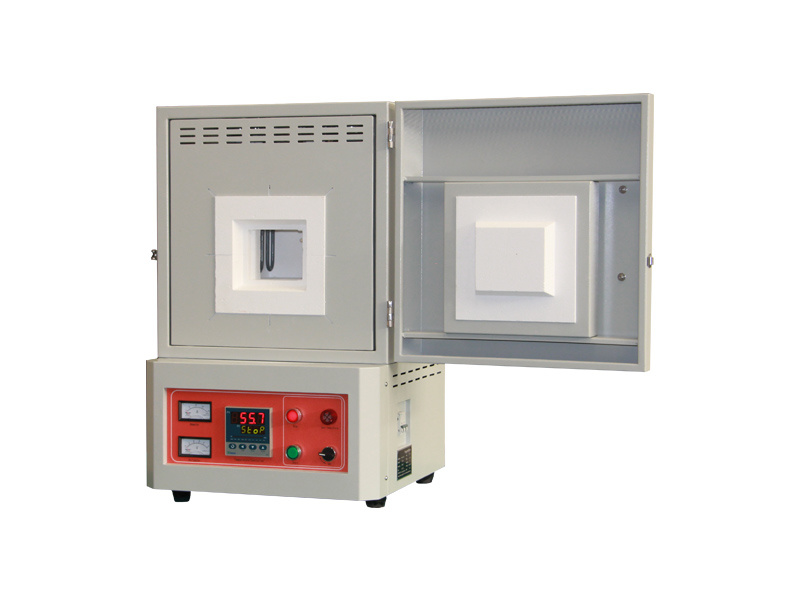

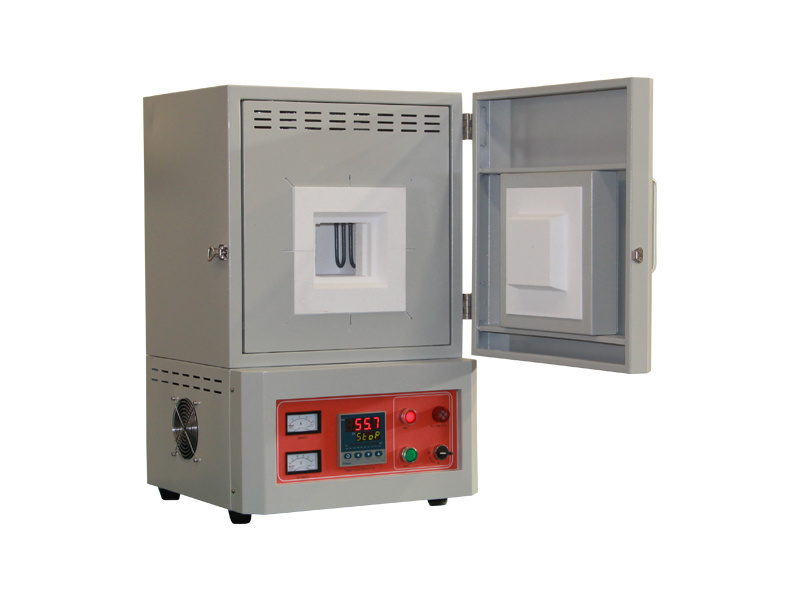

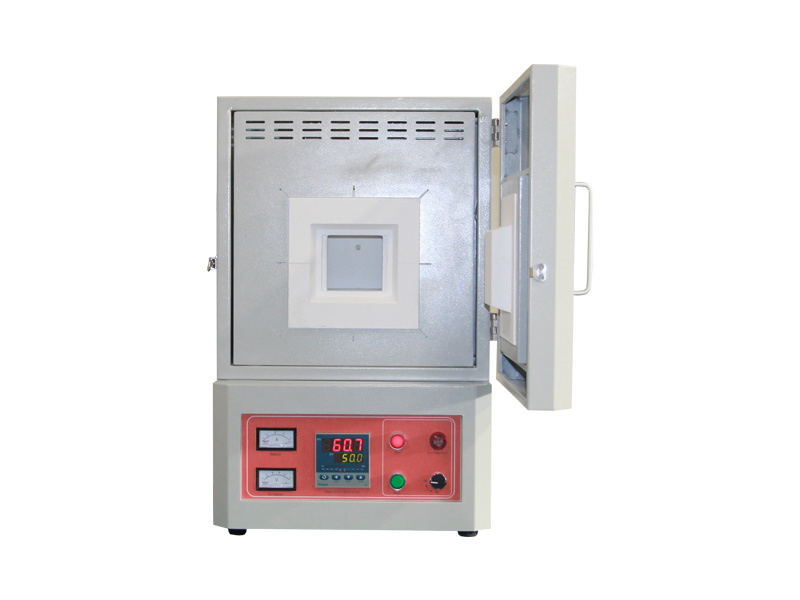

1700°C Small Benchtop High-temperature Muffle Furnace,Chamber.
- Chamber lining uses ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving.
- Heating element uses U-shape MoSi2 rod, heated on two sides, uniform temperature field,TMax 1700°C.
- Durable B-type thermocouple with long service life.

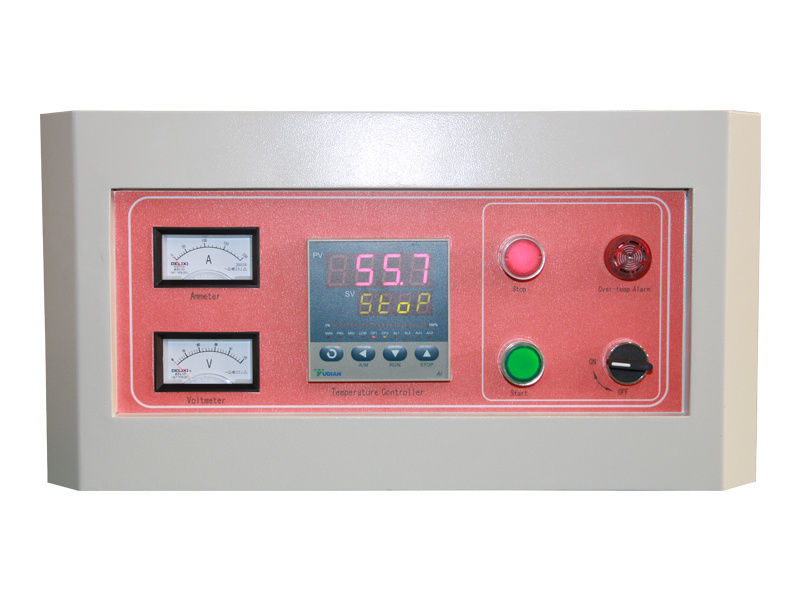

1700℃ Small Benchtop High-temperature Muffle Furnace，Electrical control panel.
- Yudian PID temperature controller, programmable 30 segments, high temperature control accuracy.
- Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes.
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function.
- With 485 communication interface(Optional)
Heating Programs for 1700°C Small Benchtop High-temperature Muffle Furnace
- Programmable 30 segments, heating rate 1-10C/min freely adjusted
- Good thermal insualtion, natural cooling, cooling down gently
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model.No PM L1/17 Chamber size (DxWxH) D100xW100xH100mm/4x4x4″ Capacity 1L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system Power supply 2.0KW AC208-240V 50/60Hz Phase Single phase Working temperature TMax 1700℃(3092℉)
Continuously 1600℃(2912℉)Temperature uniformity +/-5℃ Temperature range Rt-1700℃ Temperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°CHeating elements U-shape MoSi2 rod,2 sides heating Heating rate Max：10℃/min
Recommend：1-8℃/minThermocouple type B Furnace shell Carbon steel air-cooled housing Chamber material ceramic fiber board,CNC carved,high temperature resistance,efficient energy saving Electric components Siemens maker air switch,AC contactor,SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Shipment information Weight: 140kgs
W485xL530xH780mmCompliance CE,ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Exhaust piping system After-sales 1. Consumables such as heating elements, thermocouple, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
2. Please do not inject flammable, explosive or strong corrosive gases without safety measures.Similar model comparison
Model.No PM L8/17 PM L12/17 PM L18/17 PM L36/17 Inner size(DxWxH) 200x200x200mm 300x200x200mm 300x250x250mm 400x300x300mm Capacity 8 L 12 L 18 L 36 L Power supply 5 KW 6 KW 7 KW 13 KW Furnace dimensions(LxWxH) 720x670x1000mm 600x690x920mm 820x670x1000mm 1140x940x1635mm Weight 165 KGS 226 KGS 260 KGS 300 KGS -
