1700C Ceramic Debinding and Sintering Integrated Lifting Furnace
PE L64/17E
Classification:
Stable electric bottom loading system.Square chamber,chamber lining uses 1850# Polycrystalline ceramic fiber raw material.U-shape MoSi2 rod heated,4 sides heating,Yudian PID controller.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1700C Ceramic Debinding and Sintering Integrated Lifting Furnace
- Commodity ID: PE L64/17E
- 产品概述: Stable electric bottom loading system.Square chamber,chamber lining uses 1850# Polycrystalline ceramic fiber raw material.U-shape MoSi2 rod heated,4 sides heating,Yudian PID controller.
<p>Square bottom electric lifting system</p> <p>Three layers of aluminum oxide tiles bottom tray</p> <p>Smoke treatment device on top of the chamber</p>
Product Overview
PE L64/17E is a Ceramic Debinding and Sintering Integrated Lifting Furnace with the stable motorized bottom loading system, easy to load samples.Carbon steel double outer shell with a built-in cooling fan,high anti-oxidation and corrosion resistance.U-shape new type MoSi2 rod heated,4 sides heating,uniform temperature field.Square chamber,chamber lining uses 1850# Polycrystalline ceramic fiber raw material,good corrosion resistance.The chamber top is designed with a Smoke treatment device.Yudian PID temperature controller,controllers are integrated on a cantilevered 7-inch touchscreen,programmable 30 segments,high temperature control accuracy,accuracy is +/- 1°C.This electric lifting furnace customer customized is mainly used for ceramic debinding and sintering, at the same time, it is suitable for the laboratory and industry of new materials, ceramics, calcination, sintering and other kinds of heat treatment process, widely used in colleges and universities, scientific research institutes, industrial and mining enterprises, etc. to do the powder, electronics, metallurgy, pharmaceuticals, ceramics, new materials, chemical industry, metal sintering and metal heat treatment and other experiments and production.
Main Features
- TMax 1700°C
- Carbon steel double outer shell with a built-in cooling fan,reduce surface temperture
- Square chamber, 1850# Polycrystalline ceramic fiber raw material chamber,CNC carved, high temperature resistance,efficient energy saving
- Electric bottom lifting, easy and flexible loading and unloading, high production efficiency
- The bottom tray is made of three-step aluminum oxide tiles stacked together, good load-bearing performance
- The furnace top is designed with a Smoke treatment device
- U-shape new type MoSi2 rod heated,4 sides heating,uniform temperature field
- Temperature controllers are integrated on a cantilevered 7-inch touchscreen
- Type B Thermocouple,long service life
- Heating rate：0℃-10℃/min adjustable
- Smart 30-stage programmable automatic temperature control,high temperature control accuracy
- CE certification
Product Details

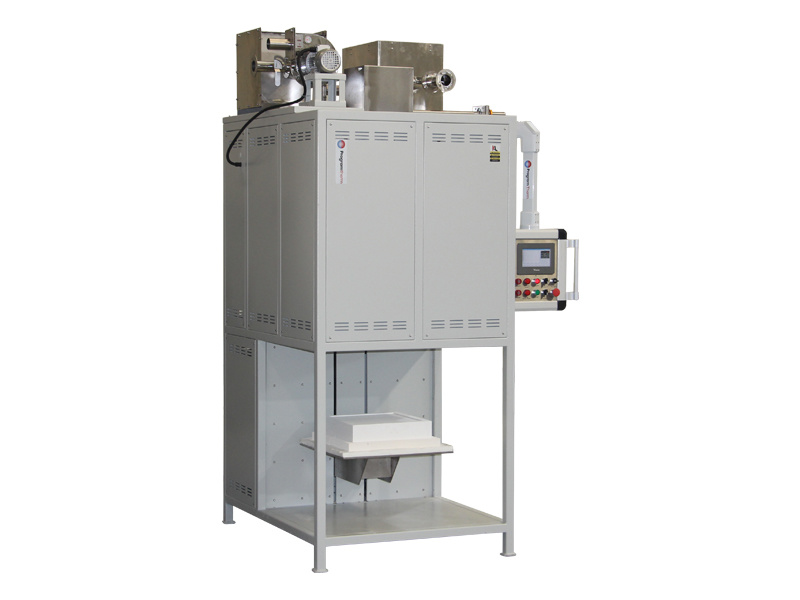

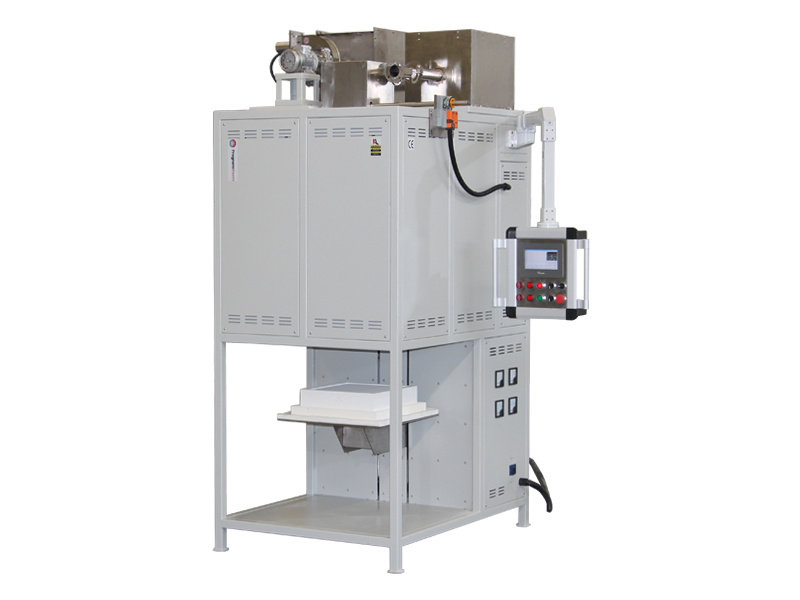

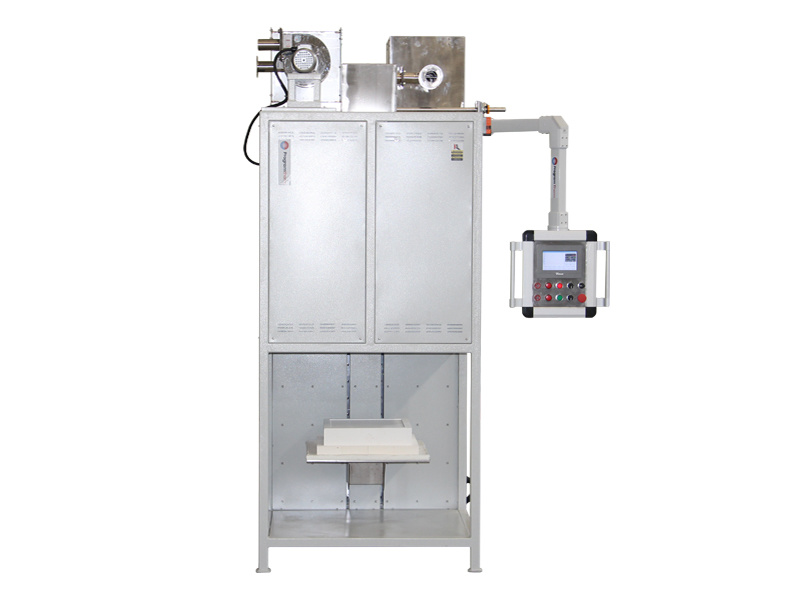

1700C Ceramic Debinding and Sintering Integrated Lifting Furnace
- PE L64/17E Ceramic Debinding and Sintering Integrated Lifting Furnace consists of five parts: furnace body, lifting system, smoke treatment device, temperature control system and air cooling system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
- Siemens electrical components, long service life
- Export quality, ISO,CE certified.

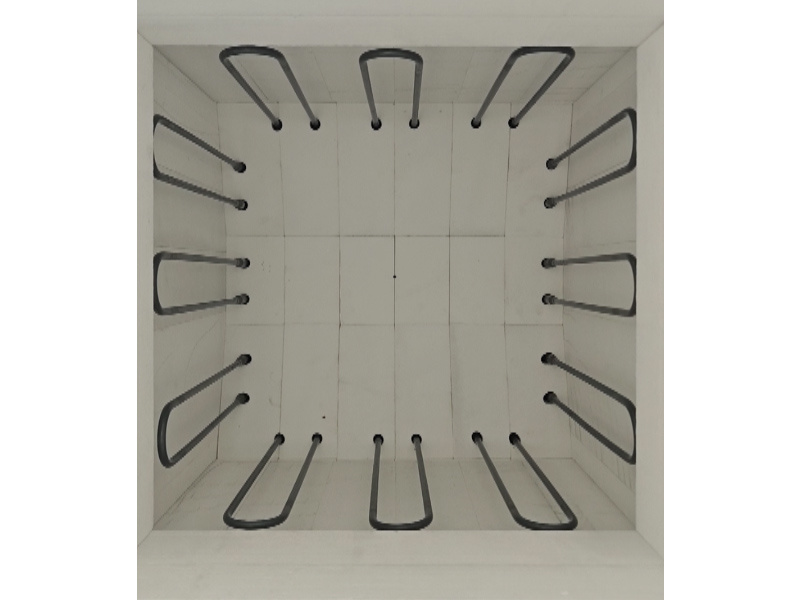

1700C Ceramic Debinding and Sintering Integrated Lifting Furnace,Chamber.
- 1850# Polycrystalline ceramic fiber raw material chamber,CNC carved
- U-shape new type MoSi2 rod heated,4 sides heating,uniform temperature field,TMax 1700°C
- Durable B-type thermocouple,long service life.

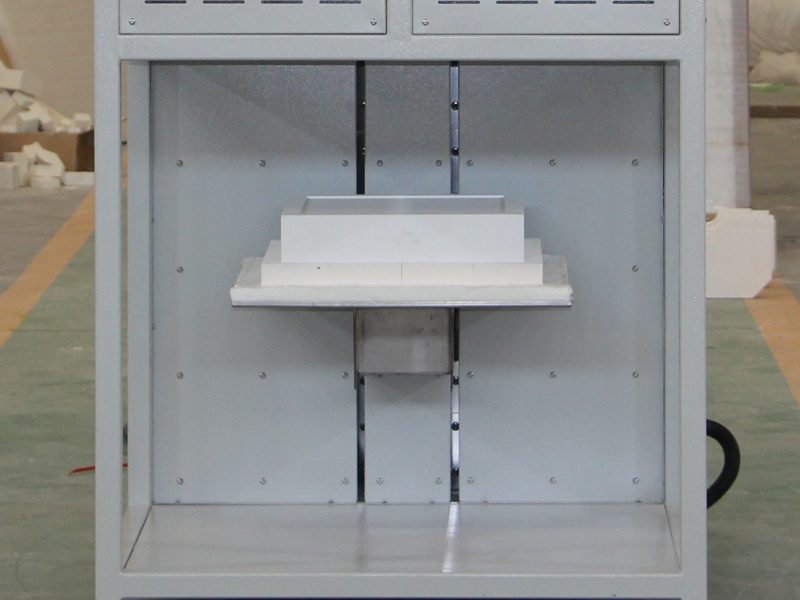

The bottom tray and circular electric lifting platform for 1700°C Elevator Furnace
- The bottom tray is composed of three-step aluminum oxide tiles stacked together, good load-bearing performance
- The furnace bottom is designed as a circular electric lifting platform, that is, a servo motor + module + lead screw electric lifting system
- Electric bottom lifting, easy and flexible loading and unloading, high production efficiency
- The platform entrance is sealed

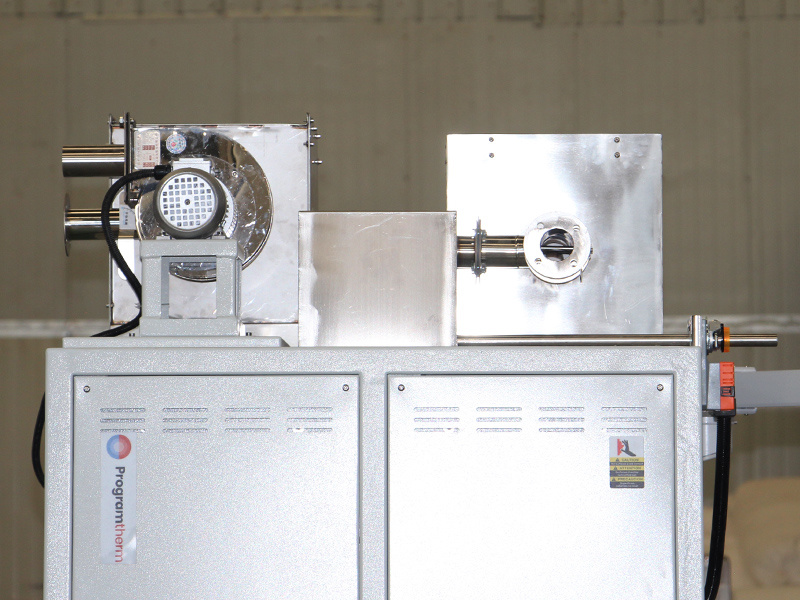

Smoke treatment device for 1700°C Elevator Furnace
- The furnace top is designed with a Smoke treatment device,consists of four parts: flue, fan, smoke filter and secondary heating system.
- The waste gas and smoke generated during the heating process of the material is pumped out by the fan and passes through the top ceramic flue (the flue can be freely set to open and close according to the specific debinding temperature or smoke emission node) firstly through the filtering device, filtering out the larger waste particles, and then enters into the secondary heating chamber, where the material is heated by the secondary heating and combusted sufficiently, realize that the waste gas meets the standard of emission.

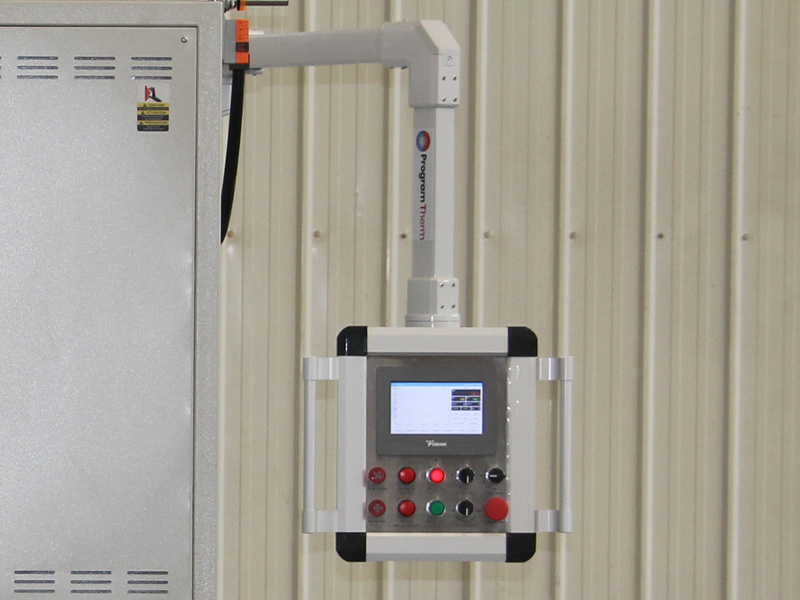

1700C Ceramic Debinding and Sintering Integrated Lifting Furnace,Temperature control system
- The controls are integrated into a cantilevered 7-inch touch screen,easy operation and space saving
- The heating program can be started by one key, the temperature profile can be monitored in real time and the data can be exported via USB for further analysis
- Can be connected to a computer to realize remote control
-
Detail Technical Specifications
Model No. PE L64/17E Chamber size (DxWxH) D400xW400xH400mm /16x16x16″ Capacity 64L Structure Outer shell/Insulation chamber/Lifting system/Smoke treatment device/Temperature control system/Air cooling system Power supply 18KW AC400V 50/60Hz Phase 3 phases Working temperature TMax 1700℃(3092℉)
Continuously 1600℃(2912℉)Temperature uniformity +/- 5℃ Temperature range Rt-1700℃ Temperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°CLifting structure Electric lifting,Lifting speed automatically adjusted Heating elements U-shape new type MoSi2 rod(12pcs) Heating rate Max:10℃/min
Recommend:1-8℃/minThermocouple type B Furnace shell Carbon steel double outer shell with a built-in cooling fan Chamber material 1850# Polycrystalline ceramic fiber raw material Electric components Schneider or Siemens maker air switch,AC contactor,Solid state relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/Two additional MoSi2 rod/Manual book Optional accessories Exhaust piping system Shipment information Weight：700kgs
W948xL1275xH2378mmAfter-sales 1. Consumables such as heating elements, thermocouple etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
2. Please do not inject flammable, explosive or highly corrosive gases.
3. For safety, please place the furnace in a ventilated place.
4. The sample should be placed in a crucible, not directly in the chamber.Similar model comparison
Model.No PE L45/17 PE L96/17 PE L150/17 Inner size(DxWxH) 500x300x300mm 600x400x400mm 600x500x500mm Capacity 45 L 96 L 150 L Power supply 18 KW 25 KW 30 KW Weight 565 KGS 775 KGS 1200 KGS
