1200℃ Small Table-top Lifting Furnace 1L
PE D80/80/12
Classification:
Small table-top lifting muffle furnace, bottom loading, electric lifting. Carbon steel double air-cooled housing. Round chamber, chamber lining uses ceramic fiber. Embedded alloy coil wire heated. Yudian PID controller, 50-stage programmable.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200℃ Small Table-top Lifting Furnace 1L
- Commodity ID: PE D80/80/12
- 产品概述: Small table-top lifting muffle furnace, bottom loading, electric lifting. Carbon steel double air-cooled housing. Round chamber, chamber lining uses ceramic fiber. Embedded alloy coil wire heated. Yudian PID controller, 50-stage programmable.
<p>Ball screw with double-line slider module,electric lifting</p> <p>Built-in limit switch,lifting speed 0-2m/min adjustable</p> <p>Double layer aluminum oxide bottom tray,good load-bearing performance</p>
Product Overview
PE D80/80/12 is a Small table-top lifting furnace with bottom loading and electric lifting. It is convenient to take and put materials, and there is no need to put the crucible tongs into the furnace. Carbon steel double air-cooled housing, environmentally friendly powder spraying, low surface temperature, good high temperature resistance and corrosion resistance. Embedded alloy resistance wire heating. The circular one-piece furnace chamber is made of ceramic fiber raw material, good high temperature resistance and corrosion resistance. Yudian PID controller, 50 segments programmable, temperature accuracy of +/- 1°C. The lifting furnace is suitable for high temperature material annealing, etc. It is an ideal furnace for colleges and universities, research institutes, industrial and mining enterprises for powder sintering, ceramic sintering, glass melting, high temperature experiments, and quality tests.
Product Video
Main Features
- TMax 1200°C
- Carbon steel double air-cooled housing,reduce surface temperture
- Round one-piece chamber, ceramic fiber raw material, CNC carved,high temperature resistance,efficient energy saving
- Bottom electric lifting, loading and unloading freely,high production efficiency.Bottom tray is made of double layer aluminum oxide,good load-bearing performance
- Embedded alloy coil wire heated,surround convection heating,uniform temperature field
- Type N Thermocouple,long service life
- Heating rate：0℃-20℃/min adjustable
- Smart 50-stage programmable automatic temperature control,high temperature control accuracy
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

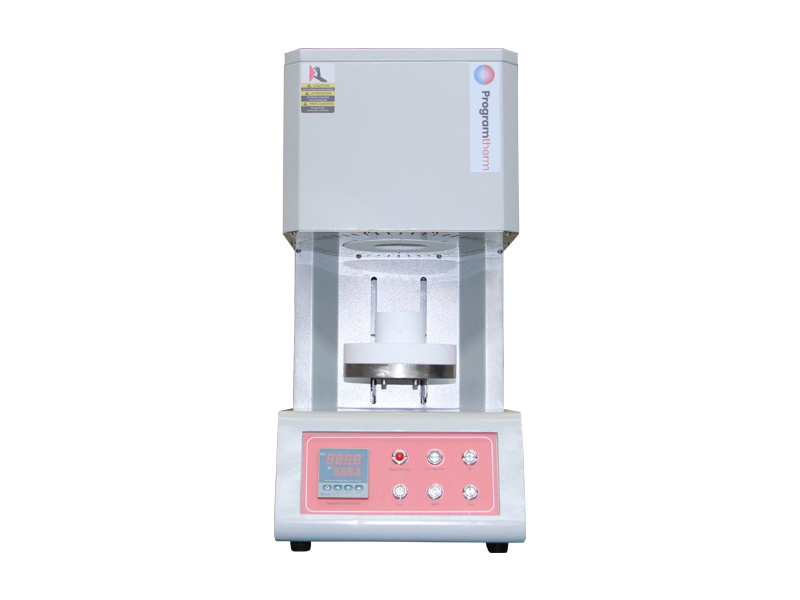

1200°C Small table-top lifting Muffle Furnace
- PE D80/80/12 Small table-top lifting muffle furnace consists of four parts: furnace body,lifting system, temperature control system and air cooling system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
- Siemens electrical components, long service life
- Export quality, ISO,CE certified.

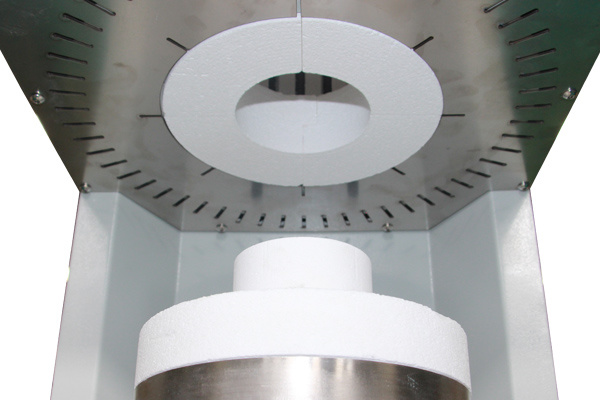

1200°C Small table-top lifting Muffle Furnace, Chamber.
- Chamber lining uses ceramic fiber raw material,CNC carved,round one-piece chamber,chamber walls tight coupling.
- Embedded alloy coil wire heated,surround convection heating,uniform temperature field,TMax 1200°C.
- Durable N-type thermocouple,long service life.

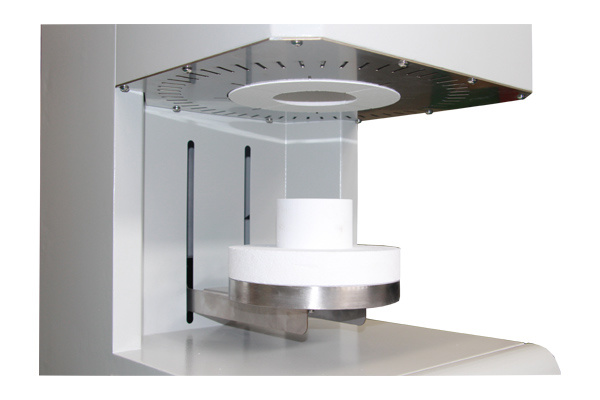

1200°C Small table-top lifting Muffle Furnace, Lifting system
- Stainless steel round chassis, double-layer aluminum tray, total length 100mm, good thermal insulation effect.
- Ball screw with double-line slider module, electric lifting.
- Built-in limit switch, lifting speed 0-2m/min adjustable, tight coupling when the furnace door is closed.
Heating programs for 1200°C Small table-top lifting Muffle Furnace
- Programmable 50 segments,heating rate 1-20C/min freely adjusted.
- Good thermal insualtion, natural cooling, cooling down gently.
-
Detail Technical Specifications
Model No. PE D80/80/12 Chamber size (DxWxH) OD100xH100mm Capacity 1L Structure Outer shell/Insulation chamber/Furnace door/Temperature control system/Lifting system/Air-cooling system Power supply 1.4KW AC220V 50/60Hz Phase single phase Working temperature TMax 1200℃(2192℉)
Continuously 1100℃(2012℉)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Yudian PID controller
Auto-tune function
Programmable 50 segments
Temperature accuracy +/- 1°CLifting structure Electric lifting,Lifting speed automatically adjusted,Stopped at the right position,Each side can be loaded Heating elements Embedded alloy coil wire Heating rate Max:20℃/min
Recommend:15℃/minThermocouple type N Furnace shell Carbon steel double air-cooling housing Chamber material ceramic fiber raw material, CNC carved, high temperature resistance,efficient energy saving Electric components Schneider or Siemens maker air switch,AC contactor,Solid state relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/Manual book Optional accessories Exhaust piping system Shipment information Weight：80kgs
W500xL450xH700mmAfter-sales 1. Consumables such as heating elements, thermocouple etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
2. Please do not inject flammable, explosive or highly corrosive gases.
3. For safety, please place the furnace in a ventilated place.
4. The sample should be placed in a crucible, not directly in the chamber.Similar model comparison
Model.No PE L45/17 PE L96/17 PE L150/17 Inner size(DxWxH) 500x300x300mm 600x400x400mm 600x500x500mm Capacity 45 L 96 L 150 L Power supply 18 KW 25 KW 30 KW Weight 565 KGS 775 KGS 1200 KGS -
