Elevator Furnace for Glass Solvent Experiment
PE L100/17E
Classification:
304SS outer shell,stable electric bottom loading system.Square chamber,chamber lining uses alumina bubble brick.U-shape MoSi2 rod heated,4 sides heating,Yudian PID controller.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: Elevator Furnace for Glass Solvent Experiment
- Commodity ID: PE L100/17E
- 产品概述: 304SS outer shell,stable electric bottom loading system.Square chamber,chamber lining uses alumina bubble brick.U-shape MoSi2 rod heated,4 sides heating,Yudian PID controller.
<p>Round bottom electric lifting system,foot control panel</p> <p>Five layers of insulation materials bottom tray</p> <p>Exhaust gas secondary heating system and venting system</p>
Product Overview
PE L100/17E is a Customized Elevator Furnace for glass solvent experiment.Equipped with a foot control panel,the stable motorized bottom loading system makes it is easy to load samples.304SS outer shell with a built-in cooling fan,high anti-oxidation and corrosion resistance.Square chamber,chamber lining uses alumina bubble brick,good corrosion resistance.U-shape new type MoSi2 rod,4 sides heating,uniform temperature field.The furnace bottom is designed as a circular electric lifting platform. The furnace top is designed with an exhaust gas secondary heating system and venting system. Yudian PID temperature controller,programmable 30 segments, high temperature control accuracy,accuracy is +/- 1°C.Suitable for various heat treatment processes such as glass solvent experiments.
Product Video
Main Features
- TMax 1700°C
- 304SS outer shell with a built-in cooling fan,reduce surface temperture
- Square chamber with arched roof design,alumina bubble brick chamber,high temperature resistance,efficient energy saving
- Round bottom electric lifting system equipped with a foot control panel, loading and unloading freely,high production efficiency
- The furnace top is designed with an exhaust gas secondary heating system and venting system
- U-shape new type MoSi2 rod heated,4 sides heating,uniform temperature field
- 7" touch screen controller with USB adapter
- Type B Thermocouple,long service life
- Heating rate：0℃-10℃/min adjustable
- Smart 30-stage programmable automatic temperature control,high temperature control accuracy
- CE certification
Product Details

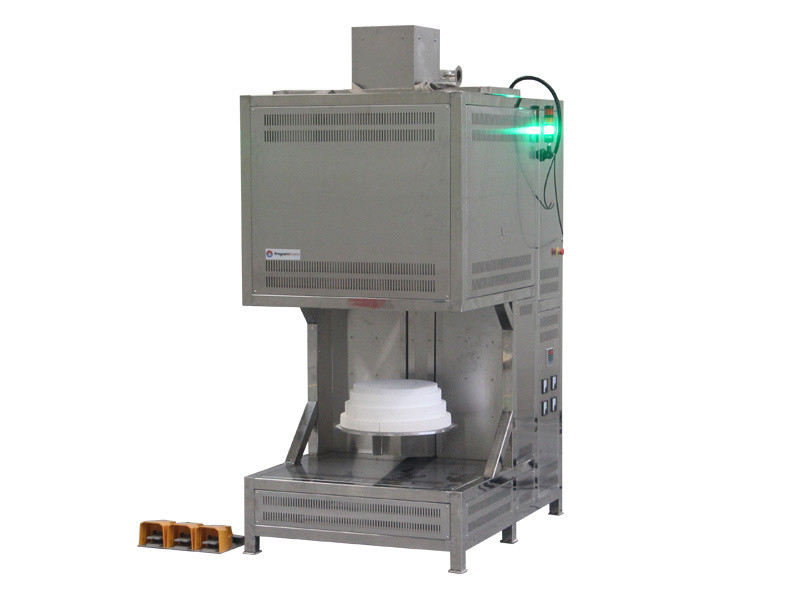

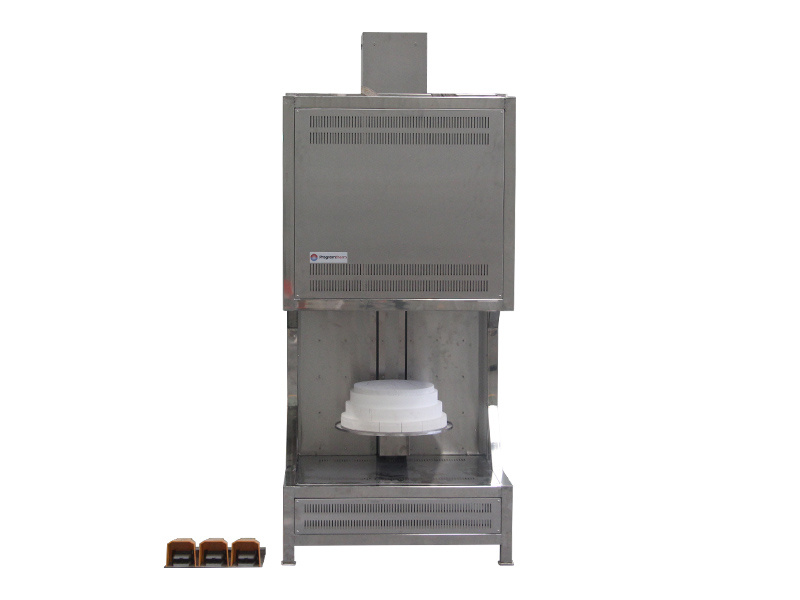

1700°C Elevator Furnace for Glass solvent experiment
- PE L100/17E Customized Elevator Furnace for Glass solvent experiment consists of six parts: furnace shell, heating chamber, lifting system, exhaust heating system, venting system and temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.With a built-in cooling fan,the surface temperature Rt+45℃.
- Siemens electrical components, long service life
- Export quality, ISO,CE certified.

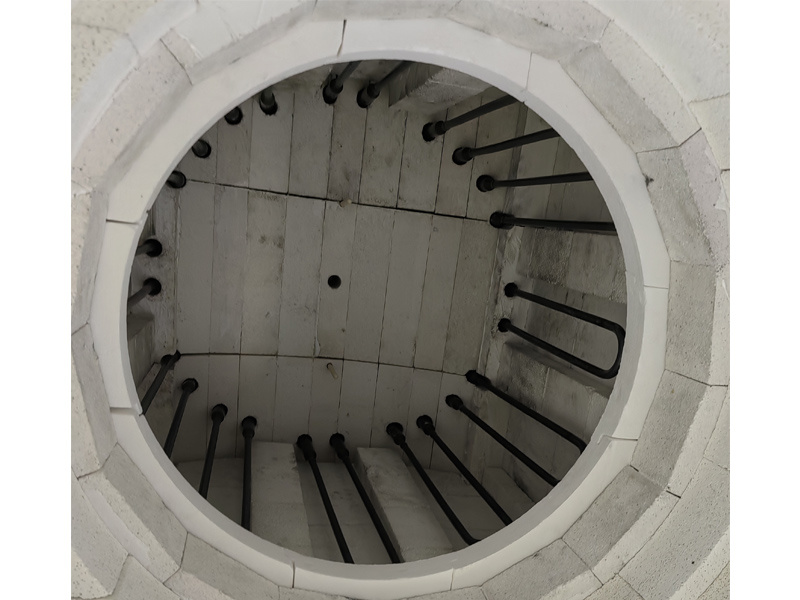

1700°C Elevator Furnace for Glass solvent experiment,Chamber.
- Square chamber with arched roof design,The inner wall insulation material is alumina bubble brick
- U-shape new type MoSi2 rod heated,4 sides heating,uniform temperature field,TMax 1700°C
- A layer of ceramic cushion block under the heating element,easy to replace to protect the furnace entrance
- A 10mm high edge of the bottom tray to prevent the melted materials from overflowing
- Durable B-type thermocouple,long service life.

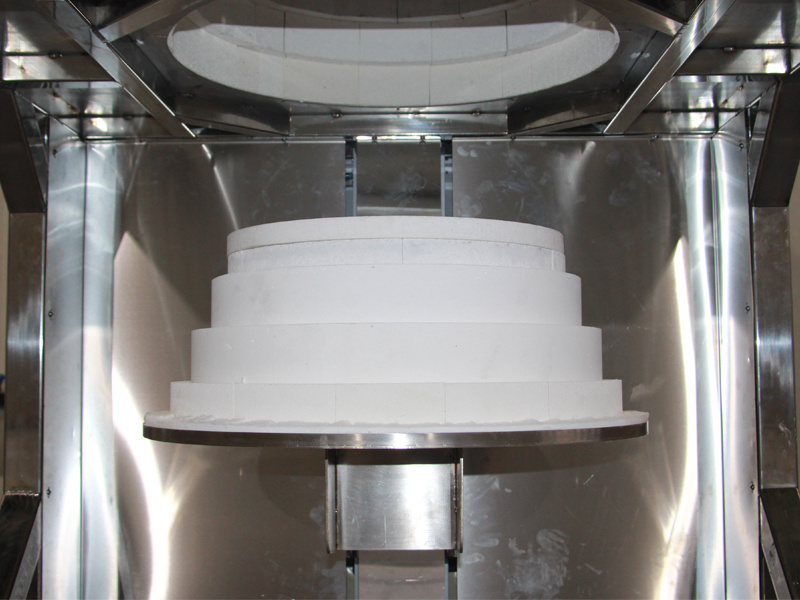

The bottom tray and circular electric lifting platform for 1700°C Elevator Furnace
- The bottom tray is composed of five layers of insulation materials from top to bottom, namely: corundum mullite support plate, alumina bubble brick, 1800 grade fiberboard, 1500 grade fiberboard and 1260 grade fiberboard.
- The furnace bottom is designed as a circular electric lifting platform, that is, a servo motor + module + lead screw electric lifting system
- The platform entrance is sealed
- Equipped with a foot control panel,the tray rises, falls and stops smoothly

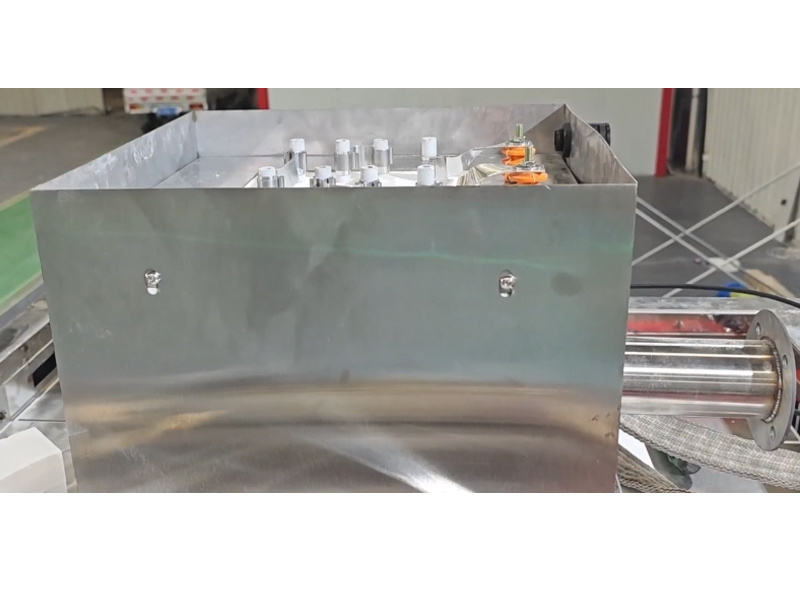

An exhaust gas secondary heating system and venting system for 1700°C Elevator Furnace
- The furnace top is designed with an exhaust gas secondary heating system and venting system
- The secondary heating system can filter the corrosive gas generated during the sintering process effectively
- The filtered gas can be connected to the exhaust pipe in the factory to achieve safe gas discharging
Heating Programs for 1700°C Elevator Furnace
- Yudian PID temperature controller,programmable 30 segments, heating rate 1-10C/min freely adjusted
- Good thermal insualtion, natural cooling, cooling down gently
- 7" touchscreen panel is optional, heating programs can be showed timely, and downloaded
-
Detail Technical Specifications
Model No. PE L100/17E Chamber size (DxWxH) D500xW500xH400mm Capacity 100L Structure Outer shell/Insulation chamber/Lifting system/Exhaust heating system/Venting system/temperature control system Power supply 48KW AC380-415V 50/60Hz Phase 3 phases Working temperature TMax 1700℃(3092℉)
Continuously 1600℃(2912℉)Temperature uniformity +/- 5℃ Temperature range Rt-1700℃ Temperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°CLifting structure Electric lifting,Lifting speed automatically adjusted Heating elements U-shape new type MoSi2 rod(16pcs) Heating rate Max:10℃/min
Recommend:1-8℃/minThermocouple type B Furnace shell 304 Stainless steel Chamber material Alumina bubble brick Electric components Schneider or Siemens maker air switch,AC contactor,Solid state relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Compliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/High temperature gloves/Crucible tongs/Two additional MoSi2 rod/Manual book Optional accessories Exhaust piping system Shipment information Weight：1500kgs
W1180xL1620xH2300mmAfter-sales 1. Consumables such as heating elements, thermocouple etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Small cracks may appear on the surface over extended use. A normal occurrence and the cracks can be repaired with alumina coating.
2. Please do not inject flammable, explosive or highly corrosive gases.
3. For safety, please place the furnace in a ventilated place.
4. The sample should be placed in a crucible, not directly in the chamber.Similar model comparison
Model.No PE L45/17 PE L96/17 PE L150/17 Inner size(DxWxH) 500x300x300mm 600x400x400mm 600x500x500mm Capacity 45 L 96 L 150 L Power supply 18 KW 25 KW 30 KW Weight 565 KGS 775 KGS 1200 KGS -
