1700°C Hydrogen Atmosphere Furnace With Ignition Device
PA L3/17
Classification:
Its structure consists of furnace shell,ceramic chamber,gas supplying,ignition system and temperature control system.Specially designed for material sintering or annealing in pure hydrogen or argon hydrogen mixed gas environment.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1700°C Hydrogen Atmosphere Furnace With Ignition Device
- Commodity ID: PA L3/17
- 产品概述: Its structure consists of furnace shell,ceramic chamber,gas supplying,ignition system and temperature control system.Specially designed for material sintering or annealing in pure hydrogen or argon hydrogen mixed gas environment.
<p>Float flow meter with flowing rate 1-10L/min adjustable</p> <p>Automatic ignition device,controlled by PLC</p> <p>Available gases:H2, Ar, N2 etc.</p>
Product Overview
PA L3/17 is a Hydrogen Atmosphere Furnace With Ignition Device.Double-layer carbon steel sealed furnace shell, good high temperature and corrosion resistance.Ceramic fiber chamber, CNC carved.Heating element adopts the new process U-shaped silicon molybdenum rod, uniform temperature field.Equipped with gas supplying system and ignition system.Yudian PID temperature controller, programmable 30 segments, good stability and high temperature control accuracy.This atmosphere furnace is specially designed for material sintering or annealing in pure hydrogen or argon hydrogen mixed gas environment.It is a better choice for materials that need to be sintered under inert or reducing gas environment such as fluorescent materials, titanium alloys, etc.
Product Video
Main Features
- TMax 1700°C
- Double-layer carbon steel sealed furnace shell, the top of the furnace body sealing plate embedded in the cooling water pipe for heat dissipation, ensure a good sealing performance during high temperature operation
- Ceramic fiber chamber, CNC carved, high temperature resistance, efficient energy saving
- Equipped with a float flow meter, flow rate 1-10L/min adjustable
- Available gases:H2, Ar, N2 etc
- New process U-shaped silicon molybdenum rod,uniform temperature field
- Equipped with the ignition device
- Type B thermocouple,long service life
- Heating rate 0℃-10℃/min adjustable
- Smart 30-segment programmable automatic temperature control,high temperature control accuracy
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

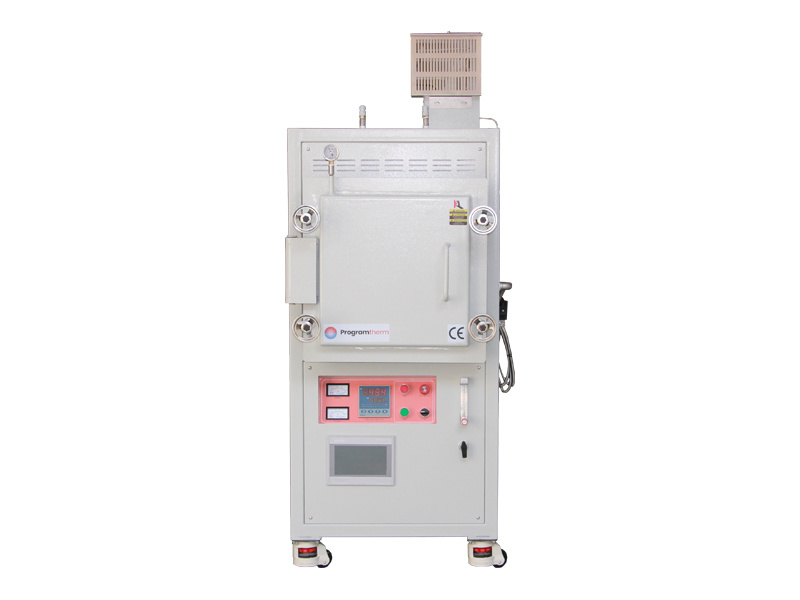

1700°C Hydrogen Atmosphere Furnace With Ignition Device

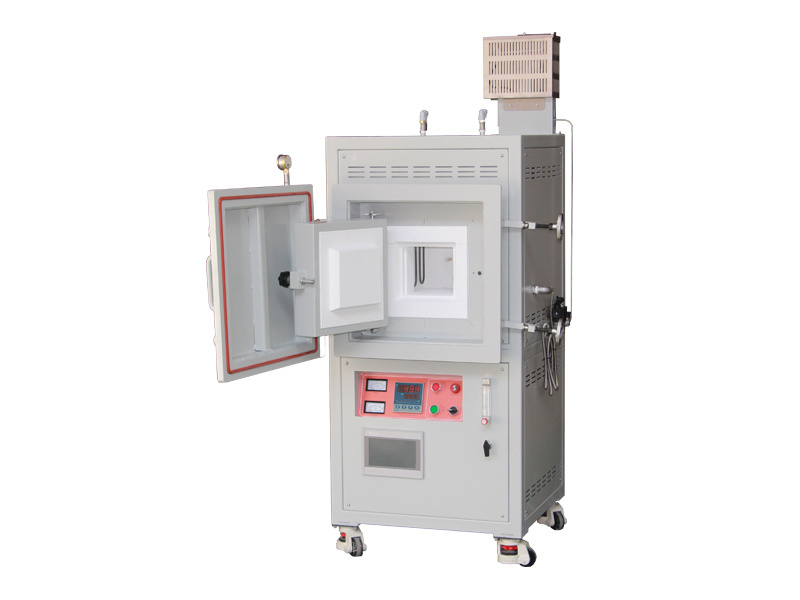

- PA L3/17 Small High Temperature Atmosphere Furnace consists of five parts: furnace shell, ceramic chamber, gas supplying system, ignition system and temperature control system.
- The top of the furnace body sealing plate embedded in the cooling water pipe for heat dissipation, ensure a good sealing performance during high temperature operation.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.Furnace surface water cooling circulation,surface temperature Rt+45℃.
- Siemens electrical components, long service life.
- Export quality, ISO,CE certified.

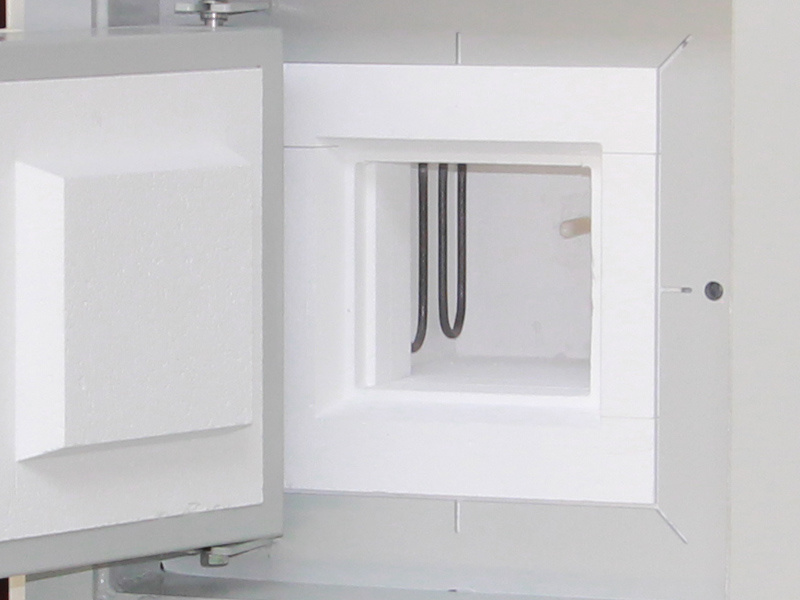

1700°C Hydrogen Atmosphere Furnace,Chamber
- Chamber lining uses ceramic fiberboard,CNC carved.Square chamber,chamber walls tight coupling.
- New process U-shaped silicon molybdenum rod, arranged on the left and right sides of the furnace evenly,stable resistance and uniform temperature field,TMax 1700°C.
- B-type thermocouple,movable,meet temperature measurement requirements at different locations,long service life

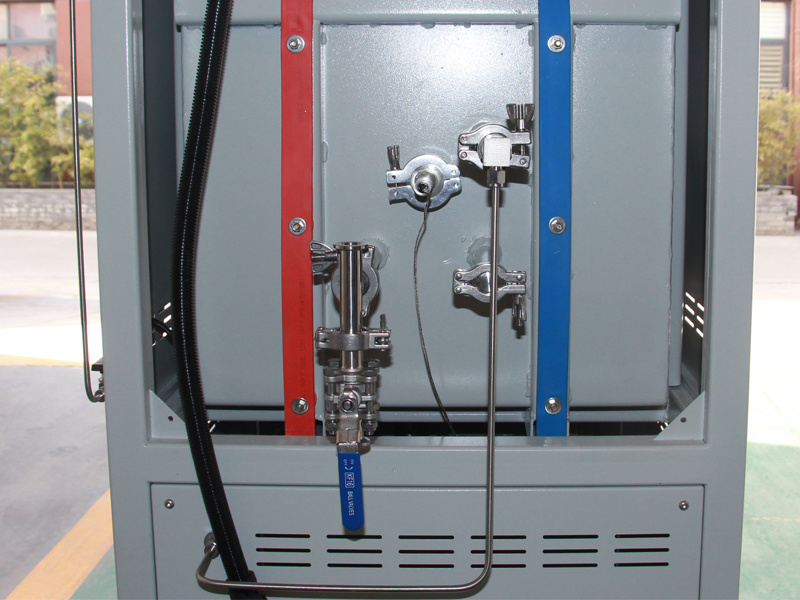

1700°C Hydrogen Atmosphere Furnace,Gas supplying system
- Reserve air inlet and vacuum port at the back of the furnace chamber
- Reserve air inlet and outlet of water-cooling pipeline at the top, etc.
- Equipped with a float flow meter, flowing rate 1-10L/min adjustable
- Available gases: N2, Ar, H2, CO etc
NOTE：When filling reducing gases, check valves, one-way valves, exhaust gas treatment systems, etc. need to be configured
1700°CHydrogen Atmosphere Furnace,Ignition system
- The ignition device is controlled by PLC programme, an automatic ignition device is installed at the air outlet, automatically ignite when hydrogen is detected
- If the hydrogen is not ignited within 30 seconds, the detector feeds back the probe signal to the PLC, and the PLC module will immediately close the inlet valve for hydrogen and immediately charge nitrogen for protection.

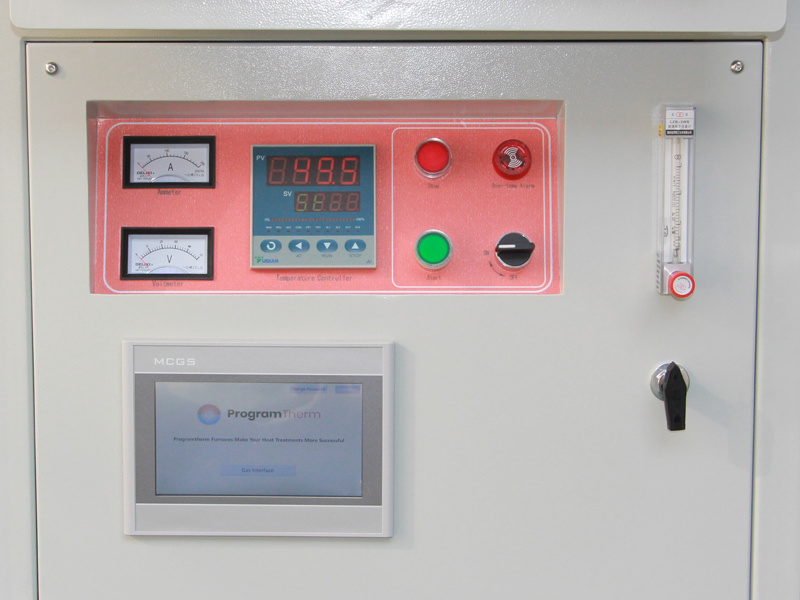

1700°C Hydrogen Atmosphere Furnace,Temperature control system
- Intelligent PID temperature controller with 30-segment programs, accuracy of ±1°C
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function
- With 485 communication interface (Optional)
-
Detail Technical Specifications
Model No. PA L3/17 Chamber size (DxWxH) D150xW150xH150mm Capacity 3L Structure Outer shell/Insulation chamber/Furnace door/Gas supplying system/Ignition system/Temperature control system Power supply 4KW AC220V 50/60Hz Phase Single phase Working temperature TMax 1700℃(3092℉)
Continuously 1600℃(2912℉)Temperature uniformity +/- 5℃ Temperature range Rt-1700℃ Temperature controller Yudian PID controller
Auto-tune function
Programmable 30 segments
Temperature accuracy +/- 1°CHeating elements New process U-shaped silicon molybdenum rod Heating rate Max：10℃/min
Recommend：1-8℃/minThermocouple type B Furnace shell Carbon steel double housing Chamber material Ceramic fiberboard,CNC carved,high temperature resistance,efficient energy saving Electric components Schneider or Siemens maker air switch,AC contactor,Solid state relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Atmosphere performance H2, Ar, N2 etc.
Gas supplying system A float flow meter
Gas flow 1-10L/minCompliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/Fire door/Heating body/Gas pipe/Two additional MoSi2 rod/Manual book Optional accessories Vacuum pump/Chiller/Gas Detection System Shipment information Weight：290kgs
W760xL560xH1310mmAfter-sales 1. Consumables such as heating elements, thermocouple etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Gas pressure in the furnace tube should not be higher than 0.02MPa.
2. High gas cylinder pressure. Use pressure reducing valve when introducing gas to furnace.
3. When using flammable and explosive gases for experiments, safety accessories must be equipped.
4. When the operating temperature exceeds 1400℃, cold water circulation device must be installed.
5. The equipment room must be well ventilated.Similar model comparison
Model.No PA L3/17 PA L8/17 PA L20/17 Inner size(DxWxH) 150x150x150mm 200x200x200mm 400x300x300mm Capacity 3 L 8 L 20 L Power supply 4 KW 5 KW 7 KW Furnace dimensions(LxWxH) 560x760x1310mm 700x810x1360mm 750x860x1450mm Weight 290 KGS 330 KGS 380 KGS -
