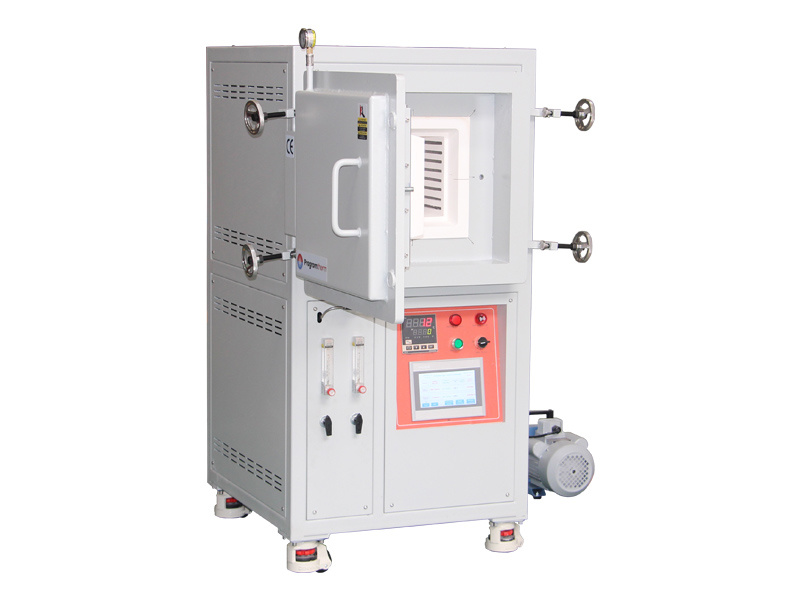

1200°C 12L Laboratory Atmosphere Muffle Furnace for Sintering
PA L12/12
Classification:
Tmax 1200℃.Carbon steel double sealed housing.Ceramic fiber chamber.Embedded HRE alloy coil wire heated. Shimaden PID temperature controller,programmable 32 segments.Installed with a 2-channel mass flow meters.
Telephone:
Attachments:
- Overview
- Technical
- Video
-
- Commodity name: 1200°C 12L Laboratory Atmosphere Muffle Furnace for Sintering
- Commodity ID: PA L12/12
- 产品概述: Tmax 1200℃.Carbon steel double sealed housing.Ceramic fiber chamber.Embedded HRE alloy coil wire heated. Shimaden PID temperature controller,programmable 32 segments.Installed with a 2-channel mass flow meters.
<p>2-channel mass flow meters,flow rate adjustable</p> <p>Multi gas inlet and outlet,Max 70000Pa</p> <p>Work in inert or reducing gas mixture environment</p>
Product Overview
PA L12/12 is a Laboratory Atmosphere Muffle Furnace. Carbon steel double housing. One piece ceramic chamber. Heating element uses embedded HRE alloy coil wire. Shimaden PID temperature controller,programmable 32 segments,high temperature control accuracy. The furnace is installed with a 2-channel mass flow meters. Work in air, inert gas and rough vacuum environment, Max 70000Pa. This atmosphere furnaces are suitable for the materials sintering or annealing under multi-channel inert or reducing gas mixture environment.
Product Video
Main Features
- TMax 1200°C
- Chamber lining uses ceramic fiber raw materials,high temperature resistance,efficient energy saving
- Double-layer carbon steel shell,maximum airtightness and safety
- Reserved gas inlet, outlet and vacuum port on the back of the furnace
- Installed with a 2-channel mass flow meters,flow rate range of 0-500SCCM
- Available gases:H2, Ar, N2 etc
- Max 70000Pa
- Embedded HRE alloy coil wire, three sides heating,uniform temperature field
- Heating rate 0℃-20℃/min adjustable
- N type thermocouple,long service life
- Smart 32-segment programmable automatic temperature control
- Power off, over-temperature, thermocouple breaking and burnout protection
- CE certification
Product Details

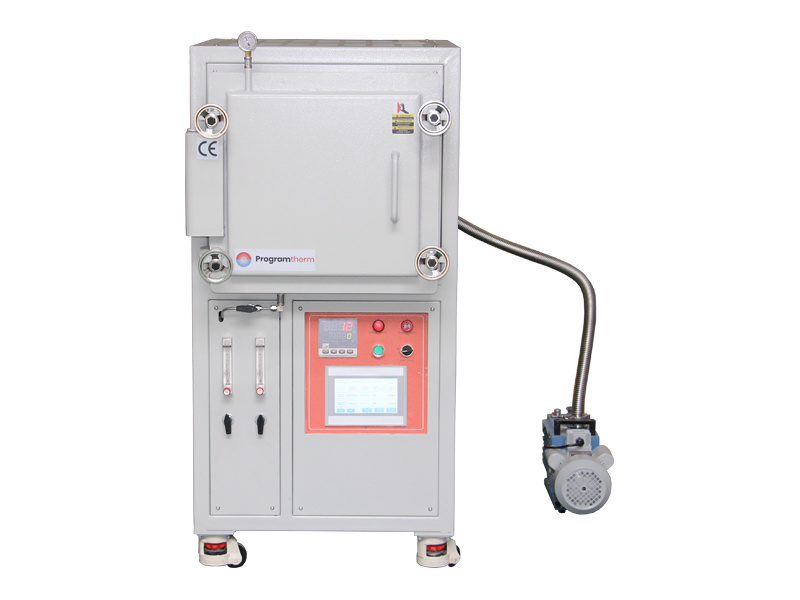

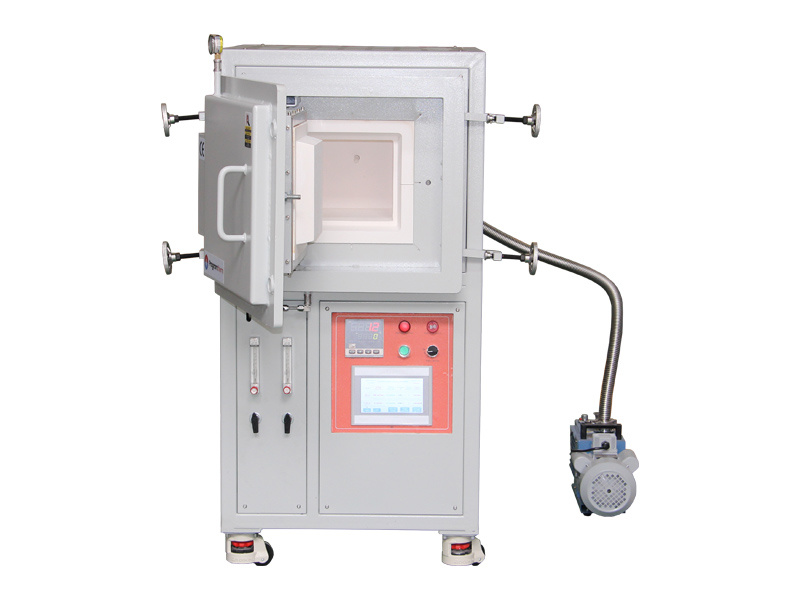

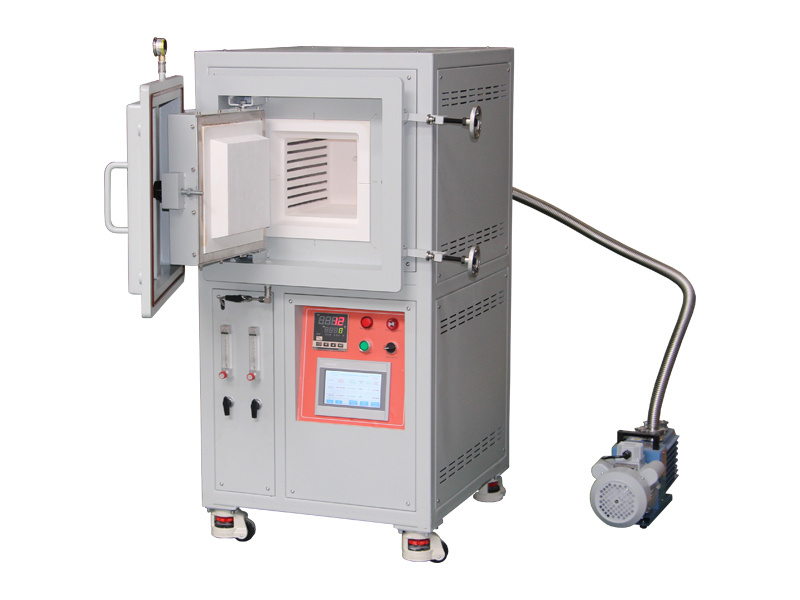

1200°C 12L Laboratory Atmosphere Muffle Furnace
- PA L12/12 Atmosphere Furnace consists of four parts: furnace shell, ceramic chamber, gas supplying system and temperature control system.
- Furnace surface is pickled and phosphated, environmental friendly electrostatic powder sprayed and baked,anti-oxidation and corrosion-resistant.Furnace surface water cooling circulation,the surface temperature Rt+45℃.
- Siemens electrical components, long service life.
- Export quality, ISO,CE certified.

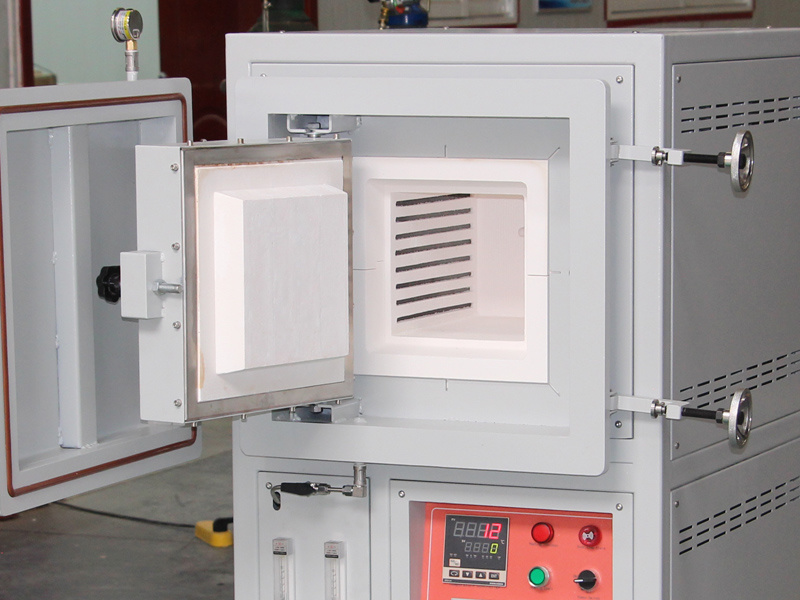

1200°C 12L Atmosphere Furnace Chamber
- Chamber lining uses ceramic fiber raw materials,One-piece chamber. Square chamber,chamber walls tight coupling.
- Embedded HRE alloy coil wire heated, evenly arranged on the left, right and bottom sides of the furnace, 3-side heating,uniform temperature field,TMax 1200°C.
- N-type thermocouple,movable,meet temperature measurement requirements at different locations,long service life

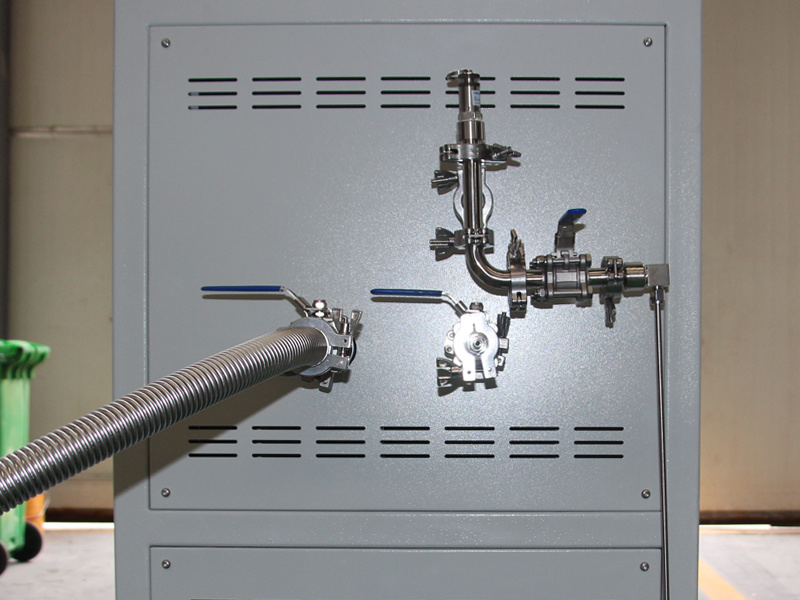

1200°C Atmosphere Furnace, Gas supplying system
- Reserved gas inlet, outlet and vacuum port on the back of the furnace
- Enstalled with a 2-channel mass flow meters, integrated controling part on the panel
- Precise control of the gas mixing proportion with flow rate range of 0-500SCCM
- Work in inert or reducing gas mixture environment , Max 70000Pa
1200°C Atmosphere Furnace, Electrical control panel.
- Shimaden PID temperature controller,32 segments programmable, curve heating and set temperature rate
- Consists of temperature control instruments, function buttons, and alarm indicators. Responsible for monitoring and controlling the temperature in the furnace to ensure temperature stability and accuracy during experiments or production processes.
- Power off, over-temperature, thermocouple breaking and burnout protection
- Temperature self-tuning function.
- With 485 communication interface(Optional)
-
Detail Technical Specifications
Model No. PA L12/12 Chamber size (DxWxH) D300xW200xH200mm /12x8x8″ Capacity 12L Structure Outer shell/Insulation chamber/Furnace door/Gas supplying system/Temperature control system Power supply 4KW
AC220V
50/60HzPhase Single phase Working temperature TMax 1200℃ (2192°F)
Continuously 1100℃(2012°F)Temperature uniformity +/- 5℃ Temperature range Rt-1200℃ Temperature controller Shimaden PID controller
Auto-tune function
Programmable 32 segments
Temperature accuracy +/- 1°CHeating elements Embedded HRE alloy coil wire, three sides heating Heating rate Max：20℃/min
Recommend：15℃/minThermocouple type N Furnace shell Double-layer carbon steel shel Chamber material Ceramic Fiber Raw Materials,high temperature resistance,efficient energy saving Electric components Schneider maker air switch, AC contactor, SSR Relay etc. Safety measures Power off, over-temperature, thermocouple breaking and burnout protection Atmosphere performance H2, Ar, N2 etc.
Not to exceed 0.03 MPa/150torr/3psiVacuum performance Max 70000Pa Gas supplying system 2-channel mass flow meters
Multi-set air inlet and outlet
Gas flow range of 0-500SCCMCompliance CE, ISO Warranty 18-month warranty with lifetime technical support Standard packing list Furnace body/Fire door/Gas supplying device/Vacuum valve interface/High temperature gloves/Crucible tongs/SiC bottom plate/Manual book Optional accessories Vacuum pump/Chiller/Gas Detection System Shipment information Weight：380kgs
W810*L1230*H1580mmAfter-sales 1. Consumables such as heating elements, transducer, SiC bottom plate etc. are not covered by the warranty.
2. Damage caused by corrosive gases or acid gases is not covered by the warranty.
3. Free spareparts supplying including freight cost within warrantyWarnings 1. Gas pressure in the furnace tube should not be higher than 0.02MPa.
2. High gas cylinder pressure. Use pressure reducing valve when introducing gas to furnace.
3. When using flammable and explosive gases for experiments, safety accessories must be equipped.
4. When the operating temperature exceeds 1400℃, cold water circulation device must be installed.
5. The equipment room must be well ventilated.Similar model comparison
Model.No PA L3/14 PA L12/14 PA L36/14 Inner size(DxWxH) 150x150x150mm 300x200x200mm 400x300x300mm Capacity 3 L 12 L 36 L Power supply 4 KW 6 KW 13 KW Furnace dimensions(LxWxH) 560x760x1310mm 700x810x1360mm 800x920x1450mm Weight 290 KGS 356 KGS 460 KGS
Key words:
1200℃ Atmosphere Furnace
Laboratory Atmosphere Furnace
Sintering Atmosphere Furnace
Annealing Atmosphere Furnace
